Hebei Zhongheng Wire Mesh Produce Co., Ltd
which is founded in 1991, has been devoted into wire mesh production for 26 years, our main products include gabion mesh,chain link fence, babred wire, crimped wire mesh and stainless steel wire mesh etc. All of them have been up to EU, GB , ISO9001 and ASTM standards. With the philosophy of "Quality first, Customer first, Service first", Zhongheng wire mesh has gained good reputation in both domestic and overseas market. Hebei Zhongheng Wire Mesh Produce Co., Ltd has a set of strict quality control system from materials to final products shipping. Our gabion mesh and other wire meshes has earn good reputation in America, Australia, Europe, Middle East and South America, due to its high quality, precision aperture,
and longer service life.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
001
-
Brand Name:
-
ZH
-
Product name::
-
Crimped Wire Mesh
-
Usage::
-
filter or sieving
-
Hole shape::
-
square hole and rectangle
-
Surface treatment::
-
Painted or oiled
-
Color::
-
Requirement
-
Feature::
-
Corrosion Resistance
-
Width::
-
0.5m-2.5m
-
Length::
-
Customers' Requirement
-
Packing::
-
pallet
Quick Details
-
Material:
-
Stainless Steel Wire, Galvanized Wire, Mn Steel Wire
-
Type:
-
Weave Wire Mesh
-
Application:
-
Screen
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
001
-
Brand Name:
-
ZH
-
Product name::
-
Crimped Wire Mesh
-
Usage::
-
filter or sieving
-
Hole shape::
-
square hole and rectangle
-
Surface treatment::
-
Painted or oiled
-
Color::
-
Requirement
-
Feature::
-
Corrosion Resistance
-
Width::
-
0.5m-2.5m
-
Length::
-
Customers' Requirement
-
Packing::
-
pallet
Products Description

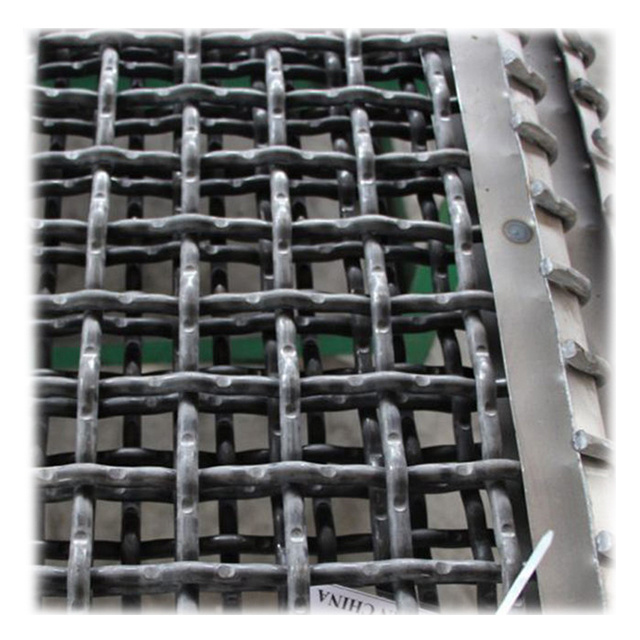

Crimped Wire Mesh is made by carbon iron wire, galvanized steel wire or stainless steel wire.
Weaving Patterns: Weaving after crimping.
This kind of wire mesh is identified from a wire crimped only in the points of intersection, before weaving. Crimped wire mesh is only made on request and the wire used may be round or square.
Product Features:
Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
Basic parameters:
Aperture width: 10 - 120mm in the case of multi-notch meshes and 4 - 40mm in the case of single-notch meshes.
Wire diameter: 1.0 - 5.5mm.
Mesh width: up to 2000mm.
Crimped wire mesh is supplied in the form of sheets.
Weaving Patterns: Weaving after crimping.
This kind of wire mesh is identified from a wire crimped only in the points of intersection, before weaving. Crimped wire mesh is only made on request and the wire used may be round or square.
Product Features:
Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
Basic parameters:
Aperture width: 10 - 120mm in the case of multi-notch meshes and 4 - 40mm in the case of single-notch meshes.
Wire diameter: 1.0 - 5.5mm.
Mesh width: up to 2000mm.
Crimped wire mesh is supplied in the form of sheets.
Specification List of Crimped Wire Mesh/Wire Mesh for Roast
|
Wire Gauge
SWG |
Wire Diameter
(mm) |
Mesh/Inch
|
Aperture
(mm) |
Weight
(kg/m2) |
|
14
|
2.0
|
21
|
1
|
4.2
|
|
8
|
4.05
|
18
|
1
|
15
|
|
25
|
0.50
|
20
|
0.61
|
2.6
|
|
23
|
0.61
|
18
|
0.8
|
3.4
|
|
24
|
0.55
|
16
|
0.1
|
2.5
|
|
24
|
0.55
|
14
|
0.12
|
4
|
|
22
|
0.71
|
12
|
0.14
|
2.94
|
|
19
|
1
|
2.3
|
0.18
|
1.45
|
|
6
|
4.8
|
1.2
|
2
|
20
|
|
6
|
4.8
|
1
|
2
|
20
|
|
6
|
4.8
|
0.7
|
3
|
14
|
|
14
|
2.0
|
5.08
|
0.3
|
12
|
|
14
|
2.0
|
2.1
|
1
|
2.5
|
|
14
|
2.0
|
3.6
|
1.5
|
1.9
|
Weaving Types
Double crimp wire mesh
Double crimp wire mesh is manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity.
Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.
Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.
Flat Top Wire Mesh
Flat top wire mesh is manufactured with wires crimped on one side only to create a flat surface, thus enhancing its durability and
allowing bigger apertures with high precision. It is generally used for coarse mineral screening.
allowing bigger apertures with high precision. It is generally used for coarse mineral screening.
Lock Crimp Wire Mesh
Double crimp wire mesh is manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity.
Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.
Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.
Hook type
Applications
Applies to vibrating screens or stone crusher for sieving of mine and aggregates, as well as asphalt mixer plant in road
building.It also can be used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts, baskets used in the kitchen and the refrigerator.
building.It also can be used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts, baskets used in the kitchen and the refrigerator.
Packing & Delivery
About Us
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
