Quick Details
-
Model Number:
-
YK-040101
-
Product name:
-
Slurry suction hose
-
Material:
-
NR,BR ,SBR
-
Reinforcement:
-
High-strength tire cord with helix steel wire
-
Cover:
-
NR ,CR
-
Size:
-
10"-34"
-
Length:
-
Customized Length
-
Working pressure:
-
15bar
-
Working temperature:
-
-20℃ to 80℃
-
Certification:
-
ISO9001:2015
-
Application:
-
suction the slurry
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YANGKAI
-
Model Number:
-
YK-040101
-
Product name:
-
Slurry suction hose
-
Material:
-
NR,BR ,SBR
-
Reinforcement:
-
High-strength tire cord with helix steel wire
-
Cover:
-
NR ,CR
-
Size:
-
10"-34"
-
Length:
-
Customized Length
-
Working pressure:
-
15bar
-
Working temperature:
-
-20℃ to 80℃
-
Certification:
-
ISO9001:2015
-
Application:
-
suction the slurry

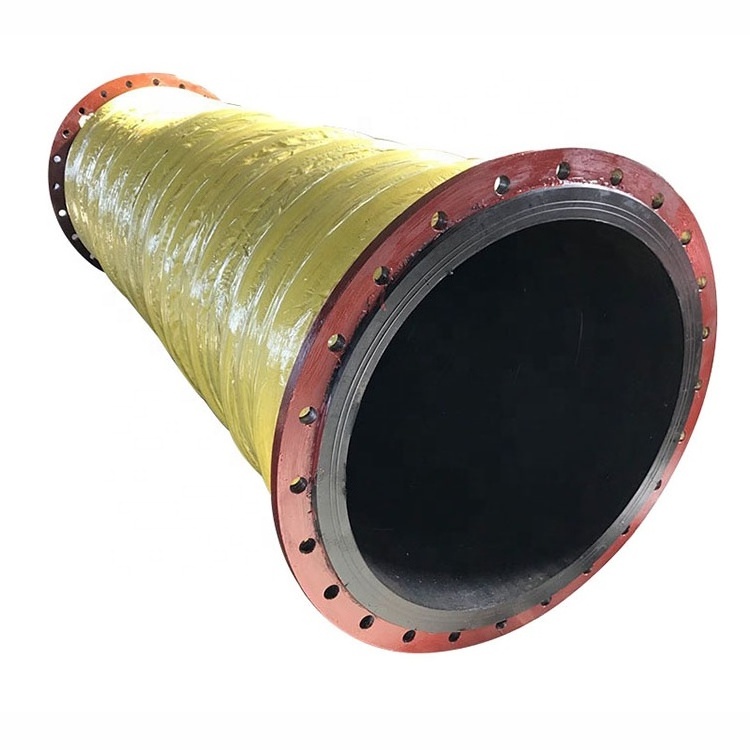

Slurry Suction Hose
Tube： NR,BR ,SBR
Reinforcement: High-strength tire cord with helix steel wire
Cover : NR ,CR
Working temperature : -20℃ to 80℃
Safety factor : 3:1
Application : installed in between the pump and cutter of the dredger, suction the slurry. Suction hose & armored hose with wear-resistant steel ring in , suitable for limestone, granite,coral and mineral etc.
Tube： NR,BR ,SBR
Reinforcement: High-strength tire cord with helix steel wire
Cover : NR ,CR
Working temperature : -20℃ to 80℃
Safety factor : 3:1
Application : installed in between the pump and cutter of the dredger, suction the slurry. Suction hose & armored hose with wear-resistant steel ring in , suitable for limestone, granite,coral and mineral etc.
|
SIZE
|
ID
|
WP
|
BP
|
Vacuum
|
Wear Layer Thickness
|
Cover Thickness
|
Length
|
|
|
mm
|
inch
|
bar
|
bar
|
bar
|
mm
|
mm
|
m
|
|
|
204
|
8"
|
3-10
|
9-30
|
0.8
|
8-10
|
5
|
1-3
|
|
|
254
|
10"
|
3-10
|
9-30
|
0.8
|
8-10
|
5
|
1-3
|
|
|
305
|
12"
|
3-10
|
9-30
|
0.8
|
10-15
|
5
|
1-3
|
|
|
350
|
14"
|
3-10
|
9-30
|
0.8
|
10-15
|
5
|
1-3
|
|
|
400
|
16"
|
3-10
|
9-30
|
0.8
|
10-15
|
5
|
1-3
|
|
|
500
|
20"
|
3-10
|
9-30
|
0.8
|
10-15
|
5-8
|
1.5-3
|
|
|
600
|
24"
|
3-10
|
9-30
|
0.8
|
15-20
|
5-8
|
1.5-3
|
|
|
800
|
32“
|
3-10
|
9-30
|
0.8
|
15-20
|
5-8
|
1.5-3
|
|
|
1000
|
40"
|
3-10
|
9-30
|
0.8
|
20-25
|
10
|
2-3
|
|
|
1200
|
48"
|
3-10
|
9-30
|
0.8
|
25-30
|
10
|
2-3
|
|
