Quick Details
-
Brand Name:
-
LONTA
-
Motor Power:
-
850W
-
Charging Capacity:
-
180L
-
Reclaiming capacity:
-
180L
-
Speed of Mixing Drum:
-
29.5rpm
-
Water Supply Mode:
-
manual
-
Working Cycle Period:
-
S6 30%
-
Discharge Way:
-
manual
-
Outline Dimension:
-
840*720*475
-
Weight (KG):
-
65 kg
-
color:
-
changable
-
drum thickness:
-
1.5-2.0mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Power:
-
800W
-
Drum Speed(min):
-
32
-
Packing Size(L*W*H):
-
840*720*475
-
Motor:
-
230V/50HZ
-
G.W/N.W:
-
64/59
Quick Details
-
Mixing Power:
-
850W
-
Productivity:
-
2M³/H
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LONTA
-
Motor Power:
-
850W
-
Charging Capacity:
-
180L
-
Reclaiming capacity:
-
180L
-
Speed of Mixing Drum:
-
29.5rpm
-
Water Supply Mode:
-
manual
-
Working Cycle Period:
-
S6 30%
-
Discharge Way:
-
manual
-
Outline Dimension:
-
840*720*475
-
Weight (KG):
-
65 kg
-
color:
-
changable
-
drum thickness:
-
1.5-2.0mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Power:
-
800W
-
Drum Speed(min):
-
32
-
Packing Size(L*W*H):
-
840*720*475
-
Motor:
-
230V/50HZ
-
G.W/N.W:
-
64/59
|
LONTA Can Provide You
|
|
|
|
|||
|
1.Budget Analysis
|
Budget Analysis Based On Local Market
|
|
|
|||
|
2.Custom Design
|
Logo/Color/Design Can Be Customized
|
|
|
|||
|
3.OEM&ODM
|
Supported
|
|
|
|||
|
4.Inspection
|
Raw materials & Products Inspection
|
|
|
|||
|
5.Delivery
|
20 Days Fast Delivery /
DDU For Africa
|
|
|
|||
|
6.Installation Guidence
|
Supported
|
|
|
|||
|
7.After-sale
|
1 Year Warranty
|
|
|
|||
Products Description
1. Production Application

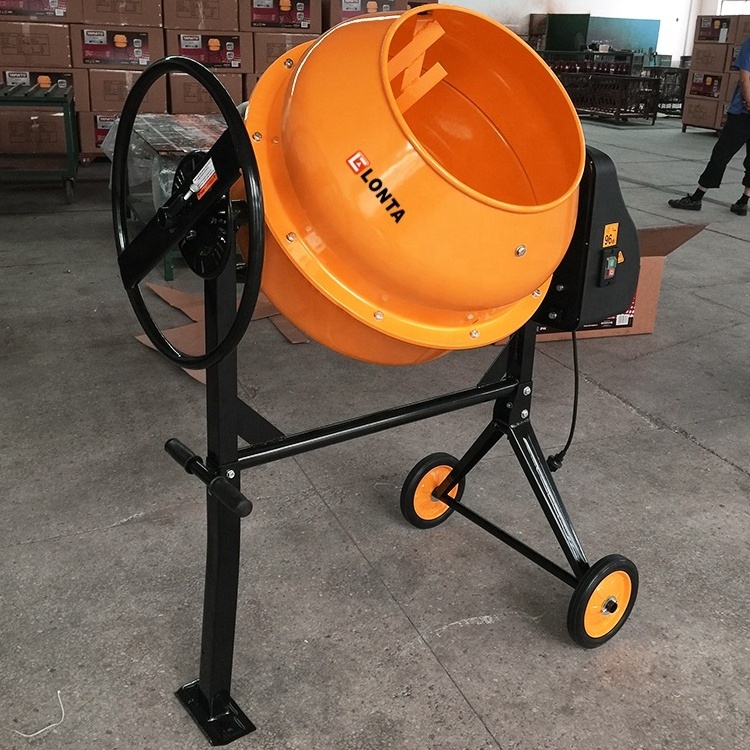

LONTA CM SEIRES Mini Concrete mixer has entirely changed the traditional way of mixing concrete by hand. It provides an easy and quick way to mix of sand or gravel and water. Depending on the application, A portable concrete mixer consists of a motor, arotating drum, blades,stands etc.
2.
Specification Sheet
|
TYPE
|
CM46
|
CM70
|
CM125
|
CM140
|
|
Motor
|
230v/50hz
|
230v/50hz
|
230v/50hz
|
230v/50hz
|
|
Power(W)
|
300w
|
375w
|
550
|
550
|
|
Motor no load speed(min)
|
2950
|
1450
|
2950
|
2950
|
|
Drum Speed
|
35
|
50
|
34
|
34
|
|
Drum Capacity
|
46
|
50
|
125
|
140
|
|
Dia of Drum (mm)
|
420
|
420
|
560
|
560
|
|
Dia of Drum Opeining(mm)
|
270
|
270
|
375
|
375
|
|
Packing Size(mm)
|
585*585*340
|
645*542*320
|
820*705*390
|
810*710*425
|
|
G.W./N.W.
|
28/25
|
30/28
|
52/48
|
57/52
|
|
Loading amount
|
|
|
|
|
|
20GP
|
259pcs
|
250pcs
|
138pcs
|
110pcs
|
|
40HQ
|
558pcs
|
600pcs
|
310pcs
|
270pcs
|
|
TYPE
|
CM160
|
CM180
|
CM200
|
CM220
|
|
Motor
|
230v/50hz
|
230v/50hz
|
230v/50hz
|
230v/50hz
|
|
Power(W)
|
650
|
650
|
800
|
800
|
|
Motor no load speed(min)
|
2950
|
2950
|
2950
|
2950
|
|
Drum Speed
|
32
|
32
|
32
|
32
|
|
Drum Capacity
|
160
|
180
|
200
|
220
|
|
Dia of Drum (mm)
|
160
|
180
|
200
|
220
|
|
Dia of Drum Opeining(mm)
|
400
|
400
|
400
|
400
|
|
Packing Size(mm)
|
840*710*405
|
840*720*425
|
840*720*475
|
840*720*505
|
|
G.W./N.W.
|
58/53
|
61/56
|
64/59
|
66/61
|
|
Loading amount
|
|
|
|
|
|
20GP
|
110pcs
|
110pcs
|
108pcs
|
88pcs
|
|
40HQ
|
264pcs
|
264pcs
|
240pcs
|
220pcs
|
