Quick Details
-
Filling Accuracy:
-
1%
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
youna
-
Dimension(L*W*H):
-
1100x450x500mm
-
Weight:
-
50 KG
-
Core Components:
-
air cylinder
-
item:
-
2 heads filling machine semi auto piston paste fille
-
Function:
-
liquid paste material filling
-
Filling range:
-
100-1000ml
-
power supply:
-
electric&pneumatic
-
Material:
-
304 stainless steel
-
filling nozles:
-
1 or 2
-
other model:
-
10-100 20-200 50-500 100-1000 260-250600 500-5000ml
-
customization:
-
accept
-
Filling speed:
-
5-30bottle/min
Quick Details
-
Machinery Capacity:
-
400BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Glass, Metal, Plastic
-
Filling Material:
-
Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
1%
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
youna
-
Dimension(L*W*H):
-
1100x450x500mm
-
Weight:
-
50 KG
-
Core Components:
-
air cylinder
-
item:
-
2 heads filling machine semi auto piston paste fille
-
Function:
-
liquid paste material filling
-
Filling range:
-
100-1000ml
-
power supply:
-
electric&pneumatic
-
Material:
-
304 stainless steel
-
filling nozles:
-
1 or 2
-
other model:
-
10-100 20-200 50-500 100-1000 260-250600 500-5000ml
-
customization:
-
accept
-
Filling speed:
-
5-30bottle/min
Product Description

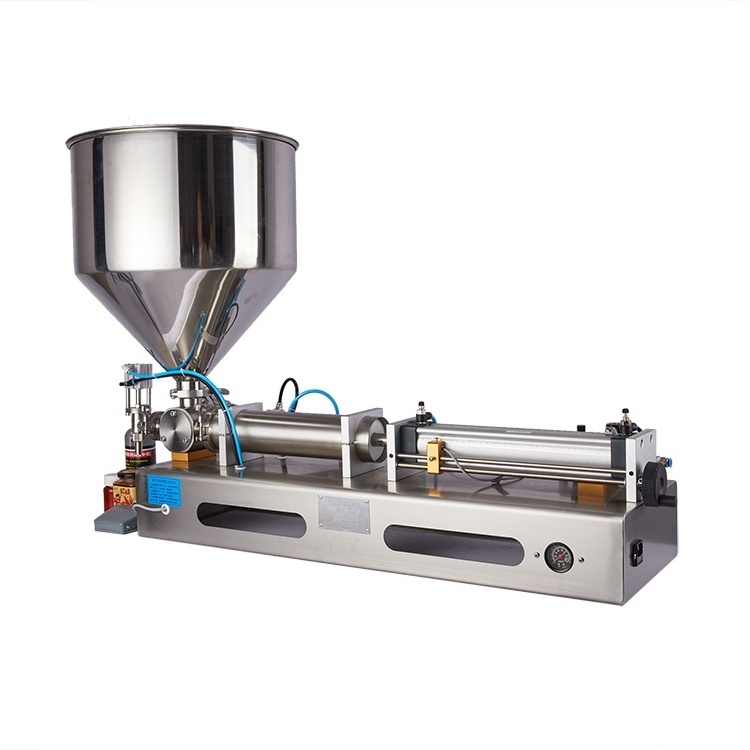

2 heads filling machine semi auto piston paste filler cream sauce cosmetic filling machine
Application：
the filling machine is suitable fo
r kinds of paste and liquid material such as
water, juice,
honey, tomato paste, chilli sauce, peanut butter, seasame paste, jam,cosmetic paste, shampoo, etc.
it is widely used in the food, cosmetic, etc.
2. Adopts 304 stainless steel, corrosion resisting, compact structure with easy operation.
3. Filling capacity can be adjusted easily.
4. it can work automatically or controlled by a operation pedal.
5. has single head, double heads and full pneumatic model, if need, pls contact in advance.
Specification
|
item
|
filling machine
|
|
voltage
|
110/220V
|
|
power
|
20w
|
|
filling range
|
5-50ml, 10-100ml, 15-150ml, 30-300ml, 50-500ml, 100-1000ml, 300-1500ml, 300-2600ml, 500-3500ml, 1000-5000ml
|
|
filling mouth diameter
|
3mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 25mm 28mm
|
|
body
|
full stainless steel body, contact material 304SUS, 316SUS accept customized
|
|
filling nozzles
|
1,2,3,4
|
|
work way
|
pneumatic (air compressor)
|
|
air pressure
|
0.5-0.7MPa
|
|
speed
|
5-30bottle/min (influenced by filling volume and operate speed)
|
|
weight
|
30kg (100-1000ml model)
|
