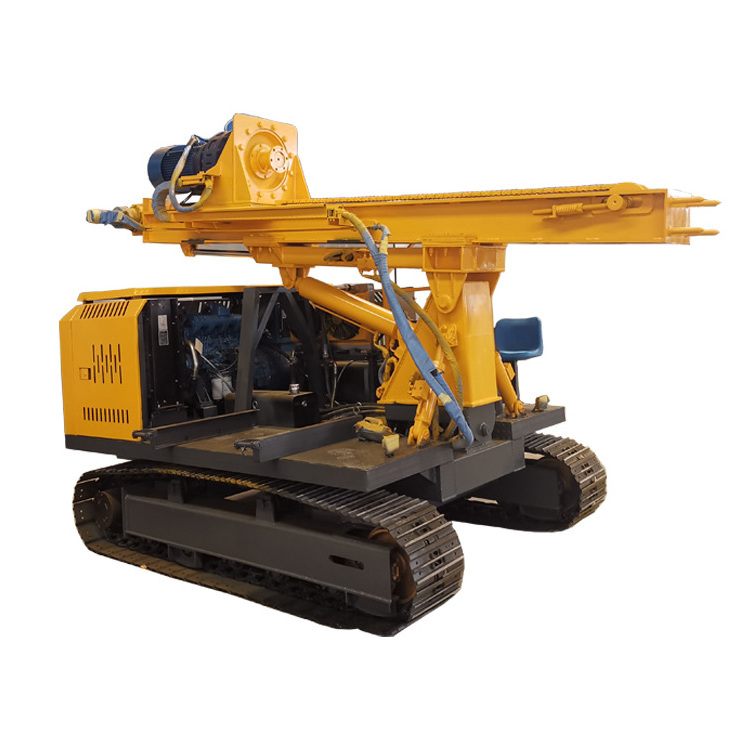

Micropile Drilling Rig Small Piling Rig Rotary solar drop hammer pile driver

Micropile Drilling Rig Small Piling Rig Rotary solar drop hammer pile driver

FOB Reference Price: Get Latest Price

≥1 Pieces

US $11800

≥5 Pieces

US $11000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SHAN JIANG

Weight:: 5300 kg

Dimension(L*W*H):: 4900*2200*2400

Engine:: YUCHAI

Pile driving depth:: 0-3m

Quick Details

Efficiency:: High Efficience

Piling Speed(m/min):: 3m

Place of Origin:: Shandong, China

Brand Name:: SHAN JIANG

Weight:: 5300 kg

Dimension(L*W*H):: 4900*2200*2400

Engine:: YUCHAI

Pile driving depth:: 0-3m

Product Overview

Shan jiang Pile driver

Hydraulic rotary press pile driver is multifunctional pile driving machine for solar pile project, with 360 degrees of freedom torotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency,convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineeringconstruction in the field.

FEATURES AT A GLANCE

Positioning accuracy

Strong power

Fast piling

360 ° rotation

Hydraulic Control

Easy installatio

Excellent components

YUCHAI ENGINE

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	85KW
2	Drilling diameter	90-400mm
3	Drill depth	20m
4	Overall weight	5T
5	Walking speed	0-5km/h
6	ENGINE	YUCHAI
7	Pitch	120°
8	Vehicle size	490022002400mm

PRODUCT CONFIGURATION

YUCHAI high power engine

Adjusting the oil cylinder

power head

Why Choose Us

Shan jiang pile driver

1.The fully enclosed house design is more beautiful, which can effectively prevent the damage to the inside of the machine caused by external dust and greatly reduce the maintenance cost。 2.Suspension seat of this solar pile driver can reduce vibration, relieve the fatigue of the staff after sitting for a long time, and greatly improve the efficiency of the worker. 3.The centralized operation control platform makes the operation more simple and convenient 4.This pile driver equipped with a large power head, the size of the pile cap can be customized. 5.In addition to piling, this machine can also be connected to the air compressor for drilling hole 6.The engineering steel crawler chassis makes pile driver walking and work more stable and reliable than the rubber crawler. 7.For this pile driver, we specially added the anti-wear pulley of the chain, which increases the life of the chain and improves the working performance of the whole machine. 8.The height of the slide carriage is 7.5 meters, and the effective stroke is 6 meters (customized height is acceptable), which can achieve a certain angle of forward inclination, and can accurately positioning the pile without moving the machine, which saves positioning time and improves the piling efficiency. 9.The color of the pile driver can be customized according to customer preferences,our pile driver also has many advantages, if you need it, please send us inquiry for a detailed introduction.

SALES AND SERVICE NETWORK

Workshop

Successful Project

Project in Thailand

Project in India

Project in Russia
