Quick Details
-
Color:
-
Grey
-
Material:
-
Ceramics+Silica gel
-
Packaging:
-
1kg/5kgs/10kgs/20kgs/25kgs/200kgs
-
Usage:
-
heat transfer
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
dubon
-
Model Number:
-
TM-80
-
Color:
-
Grey
-
Material:
-
Ceramics+Silica gel
-
Packaging:
-
1kg/5kgs/10kgs/20kgs/25kgs/200kgs
-
Usage:
-
heat transfer
Product introduction
Thermal mud is a kind of gel made of silicone resin as the base material, heat conducting filler and bonding material added in a certain proportion, and processed by special technology. In the industry, it is also known as thermal conductive putty, thermal conductive mastic, etc. It has excellent high and low temperature resistance, excellent weather resistance, radiation resistance and superior dielectric properties
3
Physics Parameter Form
| Attributes | Unit | Numerica value | |||||||
| TM-10 | TM-20 | TM-30 | TM-40 | TM-50 | TM-60 | TM-70 | TM-80 | ||
| Composing material | Ceramics+Silica gel | ||||||||
| Color | White | Gray | Gray | Gray | Gray | Gray | Gray | Gray | |
| proportion | g/cc | 2.1 | 2.7 | 2.9 | 3.1 | 3.2 | 3.3 | 3.4 | 3.4 |
| Extrudability | g/s | 6.5 | 6 | 5 | 2.5 | 2.5 | 2.5 | 1.5 | 1 |
| Temperature resistance range | ℃ | -40~150 | |||||||
| Breakdown voltage | KV/mm | ≥5.0 | |||||||
| Volume resistivity | Ω.cm | 1014 | |||||||
| Dielectric constant | @10MHz | 6.6 | 7.1 | 7.3 | 7 | 6.6 | 7.1 | 7.3 | 7 |
| Fire rating | V-0 | ||||||||
| Thermal conductivity | W/m-k | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 |
|
Thermal resistance
0.3mm@50pis |
°C-in2/W | 0.68 | 0.56 | 0.3 | 0.21 | 0.13 | 0.083 | 0.075 | 0.051 |
Product Avantage:
1. Thermal conductivity: 1~10W/mk
2.State: Semi-solid
3.Function: used for gap filling
4.Specification packaging; 1kg/ 10kg/25kg

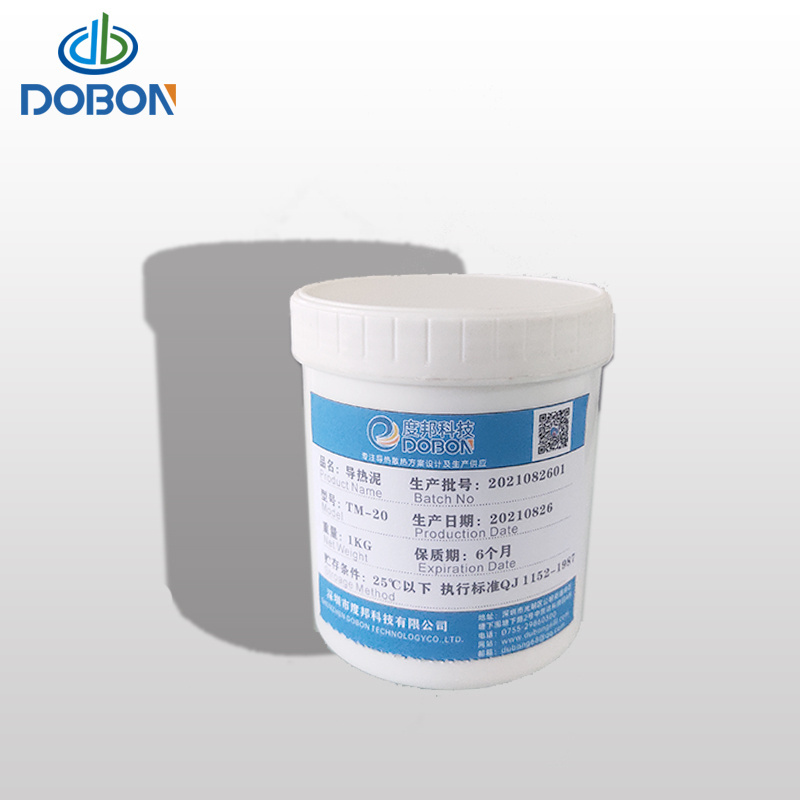

Product Pictures:
Product Application:
rtifications:
Factory Show:
Q: Are you trading company or manufacturer ?
A: We are manufacturer, our factory in Dongguan city, China. Welcome to visit.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free , but not including the shipping cost.
Q: How to customize a sample?
A:If you are ordering a unique sample that we don't have in stock, you need to provide all the details, it will be better if you can send a sample for our evaluation. Customized samples maybe need new molding, which will cost molding fee. We will check your sampling requirements, then issue a sampling P/I. Sampling may take 3-5 days, depending on detailed samples.
Any more questions, please contact us freely.
