Quick Details
-
Model Number:
-
211-9815
-
Type:
-

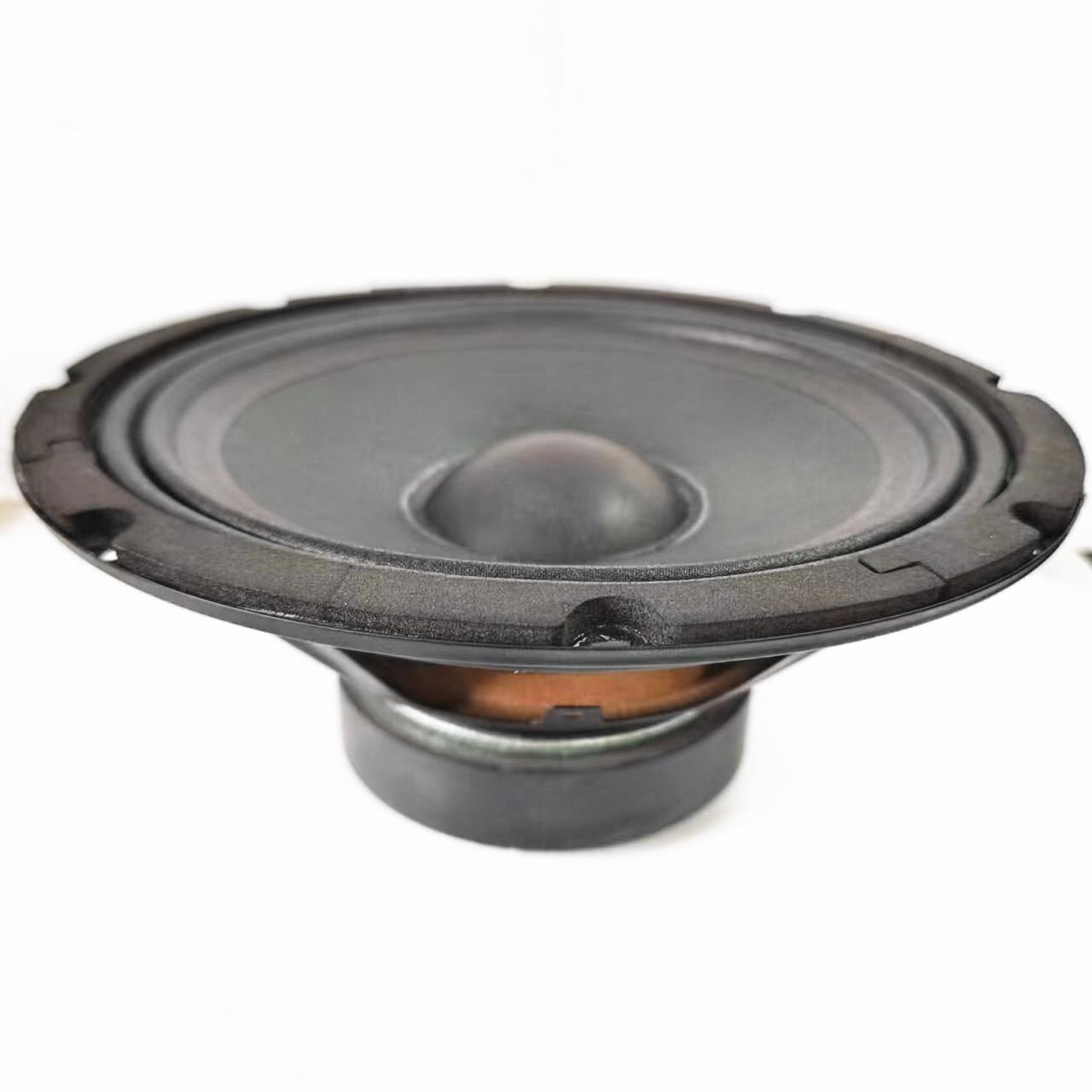

8 inch speaker
-
Diameter:
-
211+/-0.3mm
-
Impedance:
-
4 ohm+/-15%
-
Rate Power:
-
100 W
-
Max Power:
-
120W
-
Sound Pressure Level:
-
86+/-3dB
-
Frequency Range:
-
60-20000Hz
-
Resonant Frequency:
-
60HZ
-
Leadtime:
-
15-20 days
Quick Details
-
Item Type:
-
Speaker Unit
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YSD
-
Model Number:
-
211-9815
-
Type:
-
8 inch speaker
-
Diameter:
-
211+/-0.3mm
-
Impedance:
-
4 ohm+/-15%
-
Rate Power:
-
100 W
-
Max Power:
-
120W
-
Sound Pressure Level:
-
86+/-3dB
-
Frequency Range:
-
60-20000Hz
-
Resonant Frequency:
-
60HZ
-
Leadtime:
-
15-20 days
Products Description
|
|
ITEM
|
SPEC
|
TEST COND
|
|
1
|
VOICE COILIMP
|
3.6 OHM±15%
|
AT 300 HZ 1.0 V
|
|
2
|
OPERATION
|
MUST BE NORMAL
|
AT PROGRAM SOURCE 100 W
|
|
3
|
BUZZES RATTLES
|
MUST BE NORMAL
|
SIM WAVE 20 V
|
|
4
|
(F0)
RESONANT FREQ |
60 Hz±20%
|
WITHOUT BAFFLE
|
|
5
|
(S.P.L)
|
86 dB±3dB
|
AT 1000 2000 3000 5000Hz
1W/1M |
|
6
|
RATED FREQ RANGE
|
FO～ 20 K Hz
|
S.P.L decline 10dB
|
|
7
|
RATED POWER INPUT
|
100 W
|
GB9396/1996 20.3
|
|
8
|
MAX POWER INPUT
|
120 W
|
GB9396/1996 20.2
|
|
9
|
DISTORTION
|
5% MAX
|
AT RATED POWER IMPUT 2KHz
|
|
10
|
HEAT TEST
|
AFTER TEST MEET ITEM2&3
|
35℃±2℃ 20/25%R.24h
|
|
11
|
HUMIDRRY TEST
|
AFTER TEST MEET ITEM2&3
|
40℃±2℃ 90/95%R.24h
|
|
13
|
COLD TEST
|
AFTER TEST MEET ITEM2&3
|
-10±3℃ 1H -25±3℃ 24h
|
|
14
|
POLARITY
|
LEFT(L)– RIGHT(R)+
|
WHEN SUPPLIED PLUS D.C VOLTAGE TO(+) TERMINAL,THE CONE PAPER MUST MOVE TO FORWARD.
|
|
15
|
MAGNET
|
MAIN: Φ100*45*20
SMAIN:Φ |
(mm)
|
|
16
|
V.C.SIZE
|
Φ25.5 mm
|
|
Application
Speakers are widely used in various electronic devices, such as globe, colorful lights, Bluetooth speakers, music players, recording pens, digital cameras, toys, wireless handheld devices, POS, communication facilities, and are widely used in telecommunications, consumer electronics, information technology, household appliances, automotive, security, medical, and industrial equipment related industries.
FAQ
Q:Can we get free sample?
Yes, we can provide 2-3pcs free samples,You just need to bear shipping cost
Q:
What is your MoQ ?
Usually our MOQ is 2000pcs,but we also support trial order
Q:
How about the lead time ?
We always provide speakers with fast delivery time (10-15days after payment)
Q:
Are your speakers approved any certification ?
Our speakers are approved by ROHS,CE,REACH etc.they are all environmentalHow
Q:
can you control the quality ?
Our speakers aim at the middle & high end markets.All the speakers will be tested strictly by our QC before shipment
Q:
What kind of payment methods do you accept?
Paypal and T/T via Bank are all acceptable
