Quick Details
-
Brand Name:
-
DAYTAI
-
Use:
-
FTTH
-
Warranty Time:
-
1 Year
-
Product name:
-
Media Converter
-
Model Name:
-
10-100-1000M-DF-MM-SC-2KM
-
Optic Wavelength:
-
1310nm
-
Transmission Distance:
-
Multimode: 2KM
-
MDI/MDI-X:
-
Auto selection
-
Mac address table:
-
4K
-
Memory buffer:
-
256K
-
Operating Temperature:
-
0 °C to +70 °C
-
Storage Temperature:
-
-20 °C to +80 °C
-
Relative Humidity:
-
5% to 90% (non-condensing) MTBF: >100,000 hours
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
10-100-1000M-DF-MM-SC-2KM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Use:
-
FTTH
-
Warranty Time:
-
1 Year
-
Product name:
-
Media Converter
-
Model Name:
-
10-100-1000M-DF-MM-SC-2KM
-
Optic Wavelength:
-
1310nm
-
Transmission Distance:
-
Multimode: 2KM
-
MDI/MDI-X:
-
Auto selection
-
Mac address table:
-
4K
-
Memory buffer:
-
256K
-
Operating Temperature:
-
0 °C to +70 °C
-
Storage Temperature:
-
-20 °C to +80 °C
-
Relative Humidity:
-
5% to 90% (non-condensing) MTBF: >100,000 hours

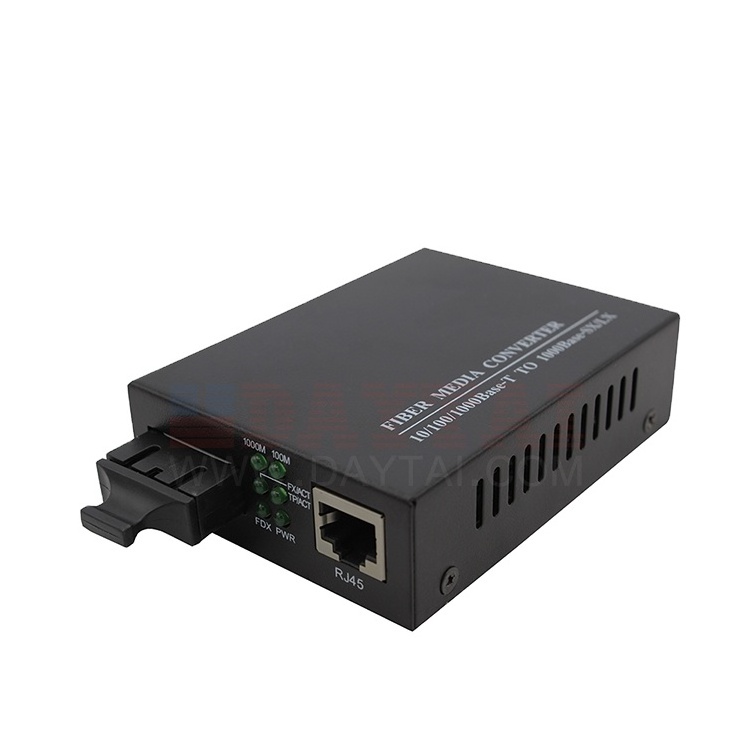

Gigabit Ethernet Media Converter 10/100/1000M-DF-MM-SC-2KM
Gigabit Ethernet Media Converter 10/100/1000M-DF-MM-SC-550M
Gigabit Ethernet Media Converter 10/100/1000M-SM-DF-SC-20KM
WELCOME TO CONTACT US FOR GETTING CATALOG AND LOW PRICE! :)
★Description
The Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
★Features
⊙10/100/1000Mbps Ethernet
⊙10/100/1000 BASE-T/TX electrical port
⊙1000 BASE-SX/LX optical port
⊙Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
⊙Automatic MDI/MDI-X crossover
⊙Distances :2KM Multi mode
⊙Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
⊙No in-field optical adjustments required
⊙LED Indicators
★Applications
⊙Access Control Systems
⊙Building and Environmental Control Systems
⊙Tamper Switch
⊙10/100/1000 Mbps Ethernet Media Converter
⊙High Speed Computer Links
|
★Product Specification
|
|
|
|
Parameters
|
Specifications
|
|
|
Standards
|
IEEE 802.3 10Base-T
|
|
|
|
IEEE 802.3u 100Base-TX
|
|
|
|
IEEE 802.3ab 1000Base-TX/FX
|
|
|
Optic Wavelength
|
1310nm
|
|
|
Transmission Distance
|
Multimode: 2KM
|
|
|
Port
|
Optical: 2 Fibers (SC Optional)
|
|
|
|
Power: Terminal Block
|
|
|
|
Electrical: RJ45
|
|
|
Led Indicators
|
Optical Link/Data Activity
|
|
|
|
Electrical Link/Data Activity
|
|
|
MDI/MDI-X
|
Auto selection
|
|
|
Mac address table
|
4K
|
|
|
Memory buffer
|
256K
|
|
|
Data
|
Data Interface: Ethernet
|
|
|
|
Data Rate:10/100/1000 Mbps
|
|
|
Power Supply
|
External : 5V DC 1A
|
|
|
|
Built-in: 100 V to 240 V AC 50Hz to 60 Hz
|
|
|
|
Power Consumption : ≤5W
|
|
|
Operating Temperature
|
0 °C to +70 °C
|
|
|
Storage Temperature
|
-20 °C to +80 °C
|
|
|
Relative Humidity
|
5% to 90% (non-condensing)
|
|
|
|
MTBF: >100,000 hours
|
|
|
Dimensions
|
95mm * 70 mm * 25mm
|
|
|
Net Weight
|
0.165 kg
|
|
|
Emissions
|
FCC , Class A, RoHS, CE Mark
|
|
Hangzhou Daytai ,over 10 years manufacturer on fiber optic field ,offering one-stop solutions porducts and service ,not just items showed in this listing ,please send inquiry with your demands and requirements.
