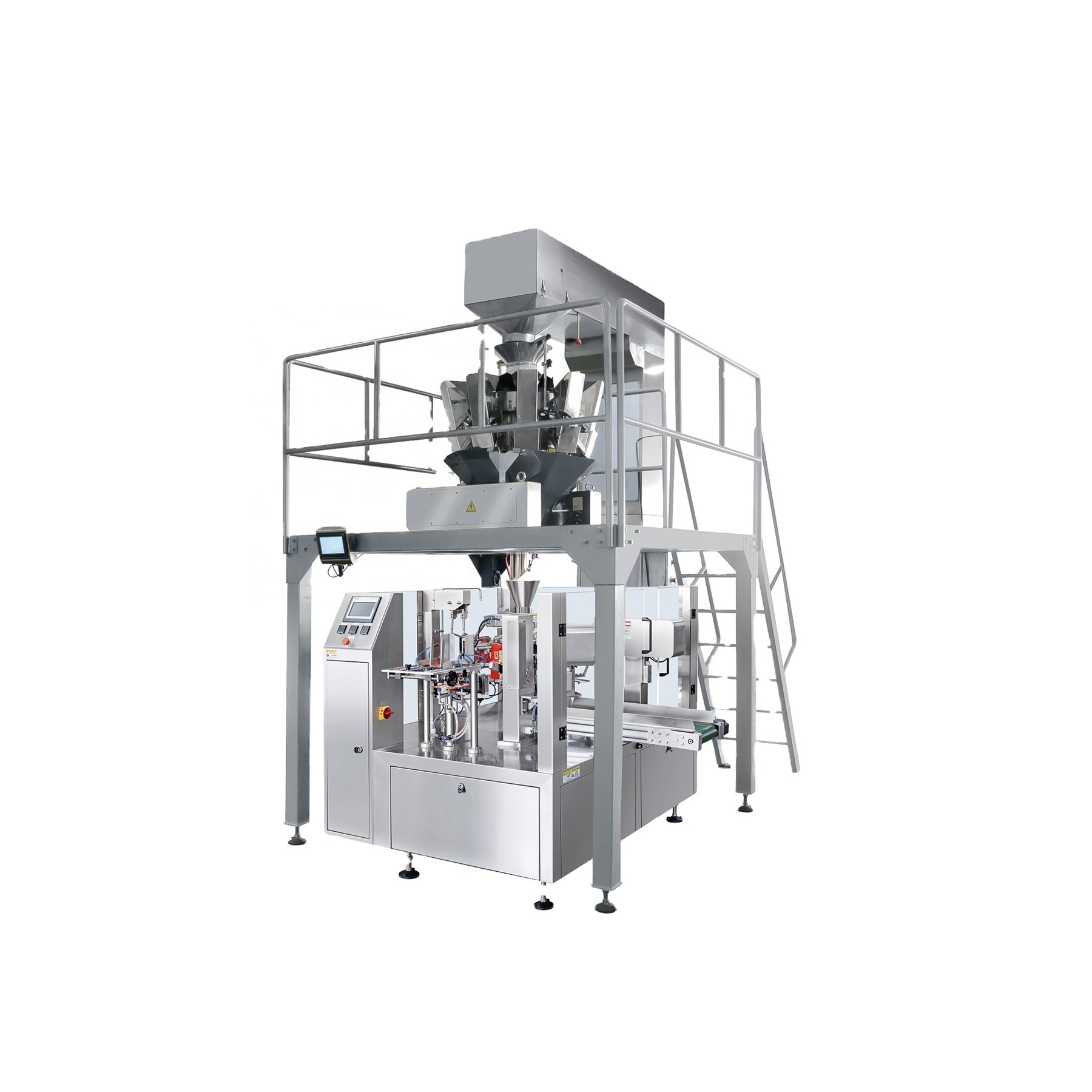

ZOMUKIKAI paper doyapck capsule rotary counting packing machine automatic

FOB Reference Price: Get Latest Price

≥1 Sets

US $18000

≥5 Sets

US $16000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 1500

Voltage:: 220/380V customized

Place of Origin:: Zhejiang, China

Brand Name:: ZOMUKIKAI

Dimension(L*W*H):: 2000*1830*1440mm

Product name:: Premade Bag Packing Machine

Bag type:: Premade Bag

Main Function:: Weighing Filling Sealing

Keyword:: Rotary Packing Machine

Sealing type:: Hot Sealing

Machine type:: Rotary Pre-made Pouch Packing Machine

Usage:: Soft Pouch Packing

Control system:: PLC+touch Screen

Packing speed:: 10-70 Bags/min

Name:: Rotary Bag Filling Sealing Machine

Quick Details

Function:: FILLING, Wrapping, Sealing, counting

Packaging Type:: Stand-up Pouch, Bags, Pouch, zipper bag

Packaging Material:: Plastic, Paper

Weight (KG):: 1500

Voltage:: 220/380V customized

Place of Origin:: Zhejiang, China

Brand Name:: ZOMUKIKAI

Dimension(L*W*H):: 2000*1830*1440mm

Product name:: Premade Bag Packing Machine

Bag type:: Premade Bag

Main Function:: Weighing Filling Sealing

Keyword:: Rotary Packing Machine

Sealing type:: Hot Sealing

Machine type:: Rotary Pre-made Pouch Packing Machine

Usage:: Soft Pouch Packing

Control system:: PLC+touch Screen

Packing speed:: 10-70 Bags/min

Name:: Rotary Bag Filling Sealing Machine

MAIN FEATURES

It is versatile, compatible with different types of filling machines and pre-made bags, including paper bags , plastic bags , PE bags , Aluminium foil bag , etc. Whether you're packaging food, beverages, cosmetics, liquid , granules , or powder products, the pre-made bags packaging machine is a cost-effective solution for streamlining your packaging process and ensuring the quality of your packaged products.

1.Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2.Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
3.The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.
4.Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard.
5.Internal grooved cam design: The technology with high precision, suits for max. packing speed: 65 cycles/min with stable running.

ZP Model	ZP8-200	ZP10-200	ZP8-260	ZP8-300	ZP8-400
Pouch Size	W80-200mm L100-400mm	W80-200mm L100-400mm	W80-260mm L100-400mm	W190-300mm L100-400mm	W300-400mm L100-450mm
Packing Range	10-1000g	10-1000g	10-1500g	10-2000g	50-3000g
Capacity	10-60 bags/min	10-80bags/min	10-50bags/min	10-40bags/min	10-25bags/min
Power	3.3Kw	3.6Kw	3.3Kw	3.8Kw
Pouch Type	Flat pouch, Stand up pouch, Zipper pouch, Spout pouch, Shaped pouch, etc.					Flat pouch, Stand-up pouch, Zipper pouch, Spout pouch, Shaped pouch,
Standard Stations	Pouch feeding; Ribbon date coding; Pouch-top opening; Filling; Buffering; Sealing; Forming; Discharging
Air Consumption	0.6m³/min						0.8m³/min
