Name: Gear box drive and Transmission shaft drive
Brand: WALI NONGZHUANG
Original: CHINA
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
950*1150*1000 mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Name:
-
RIDGER MAKING MACHINE
-
Drive mode:
-
Chain saw
-
Linkage:
-
Three-point Linkage
-
Tilling Width:
-
60-70cm
-
Engine power:
-
40-60 HP
-
Application:
-
RICE FIELD
-
Transmission:
-
Chain saw with gear box
-
Main market:
-
used for paddy field
Quick Details
-
Use:
-
Ridging
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WALIE
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
950*1150*1000 mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Name:
-
RIDGER MAKING MACHINE
-
Drive mode:
-
Chain saw
-
Linkage:
-
Three-point Linkage
-
Tilling Width:
-
60-70cm
-
Engine power:
-
40-60 HP
-
Application:
-
RICE FIELD
-
Transmission:
-
Chain saw with gear box
-
Main market:
-
used for paddy field
Product Description
Product Application

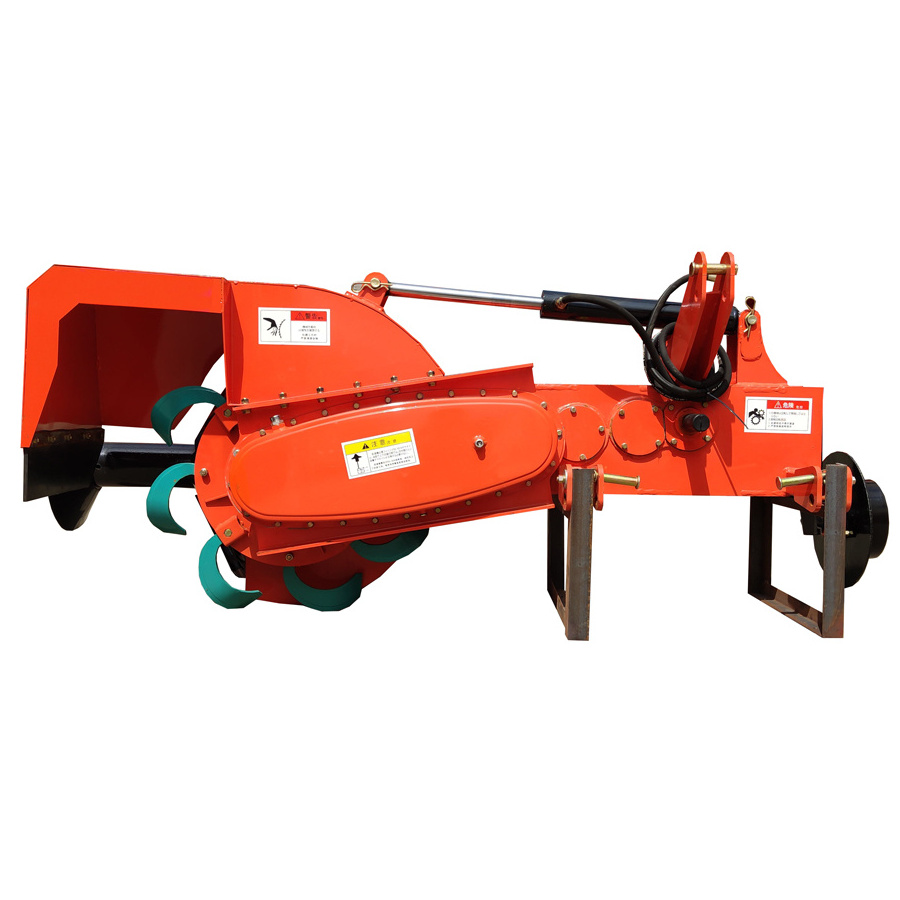

The high quality paddy ridge building machine, working with 45-130hp farm tractor, can caltivate the earth, forming and tightly pressing the paddy ridge at one operation. The completed ridge is hard, nice surface, straight and water-resistant. It is the best helper for paddy farmer with high efficiency.
Model ZGJ-300H
Name Single side ridger making machine
Work speed 1000-1800 m/h
Configuration tractor 29.4 kw (40HP) Tractor
Transmission type tractor PTO / shaft drive
on-link mode After the tractor mounted
Height adjustment After the tractor mounted / hydraulic cylinder adjust
Oil consumption ≤3kg/km
Overall size Length 950mm
Width 2040 mm(working) width1150 mm (moving)
Height 1000 mm
Net weight 260 KG
Speed 240-280 r/min
Optimum operation conditions The soil moisture content 30% - 30%
Main Features
1) Drive type: gear box and chain dirve .
2) Multipurpose: rice paddy field ridger making machine and build Canal.
3) Material: Alloy shovel and Manganese steel shrapnel.
4) It can be operated in frozen soil environment.
Detailed Images
Machine Parts
Main Features
Name:
Hydraulic cylinder adjust the ridger height
Brand:
WALI NONGZHUANG
Original:
CHINA
Machine Parts
Name:
Terrace roller
Brand:
WALI NONGZHUANG
Original:
CHINA
Main Features
Name:
Cultivator tiller rotary blade
Brand:
WALI NONGZHUANG
Original:
China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
