Quick Details
-
Dimension(L*W*H):
-
500*455*540mm
-
Weight:
-
53.00KGS
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001/CE/SONCAP/TUV/GS
-
Type:
-
Single cylinder,4-stroke,air-cooled diesel engine
-
Combustion:
-
Direct injection
-
Bore*Stroke:
-
86*72mm
-
Displacement:
-
406cc
-
Engine Speed:
-
3600Rpm
-
Max Output:
-
10.0HP
-
Continuous Output:
-
9.0HP
-
Fuel Tank Capacity:
-
5.5L
-
Lube Oil Capacity:
-
1.65L
-
Option:
-
Oil bath air cleaner
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUAHE
-
Model Number:
-
HH186F
-
Dimension(L*W*H):
-
500*455*540mm
-
Weight:
-
53.00KGS
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001/CE/SONCAP/TUV/GS
-
Type:
-
Single cylinder,4-stroke,air-cooled diesel engine
-
Combustion:
-
Direct injection
-
Bore*Stroke:
-
86*72mm
-
Displacement:
-
406cc
-
Engine Speed:
-
3600Rpm
-
Max Output:
-
10.0HP
-
Continuous Output:
-
9.0HP
-
Fuel Tank Capacity:
-
5.5L
-
Lube Oil Capacity:
-
1.65L
-
Option:
-
Oil bath air cleaner
PRODUCT DESCRIPTION

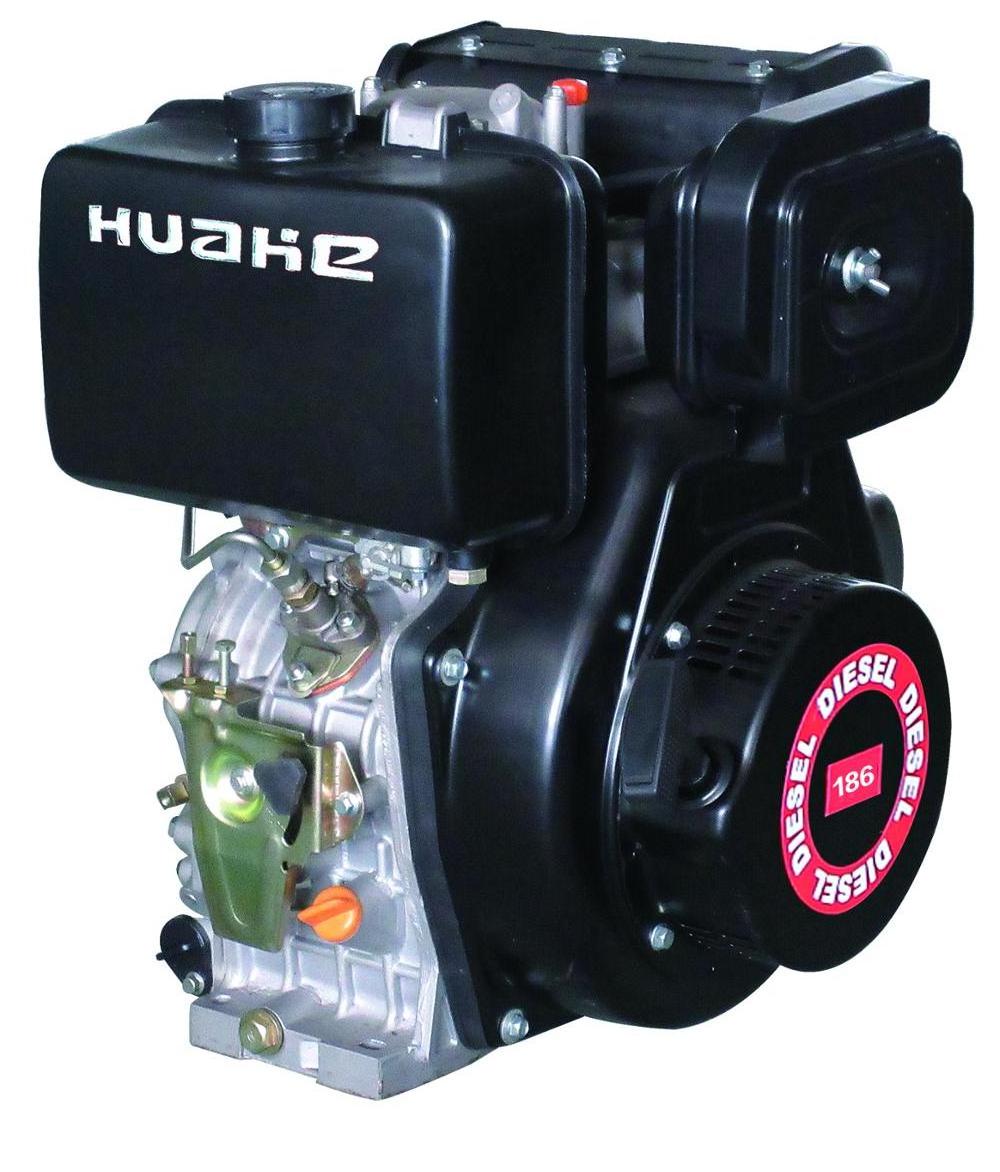

DIESEL ENGINE
Model:HH186F
Type:Single cylinder,4-stroke,air-cooled diesel engine
Combustion Systme:Direct injection
Bore*Stroke:86*72mm
Displacement:406cc
Engine Speed:3600Rpm
Max,Output:10.0HP
Continuous Output:9.0HP
Power take off:Crankshaft or Camshaft
Starting System:Recoil and Electric (Optional)
Fuel Tank Capacity 5.5L
Lube Oil Capacity:1.65L
Fuel Type:0#,-10#,-20#
Lube Oil Type:CD Grade or SEA 10W-30,SEA 15W-40
Option:Oil bath air cleaner
Net Weight:38KGS
Gross Weight:53 KGS
Dimension:500*455*540 MM
ADVANTAGES
1.
Easier to start.
2.Overload protection for safe running.
3.Solid Muffler to reduce the noise.
4.Full protection for easy transportation and carry.
5.Compact, light and portable power source for Diesel Generaotr or Boats .
6.Economical, low fuel consumption for continuous stable running.
7.100% testing with loaded before packing.
8.With CE,GS,ROHS,ISO9001,TUV,SONCAP certification.
9.12 months warranty for long sevices life.
10. Reasonable price with higher quality .
