Quick Details
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
UV-5R 5W
-
Dimensions:
-
125*65*40mm(not included antenna)
-
Frequency Range:
-
136-174&400-520MHz
-
Product Name:
-

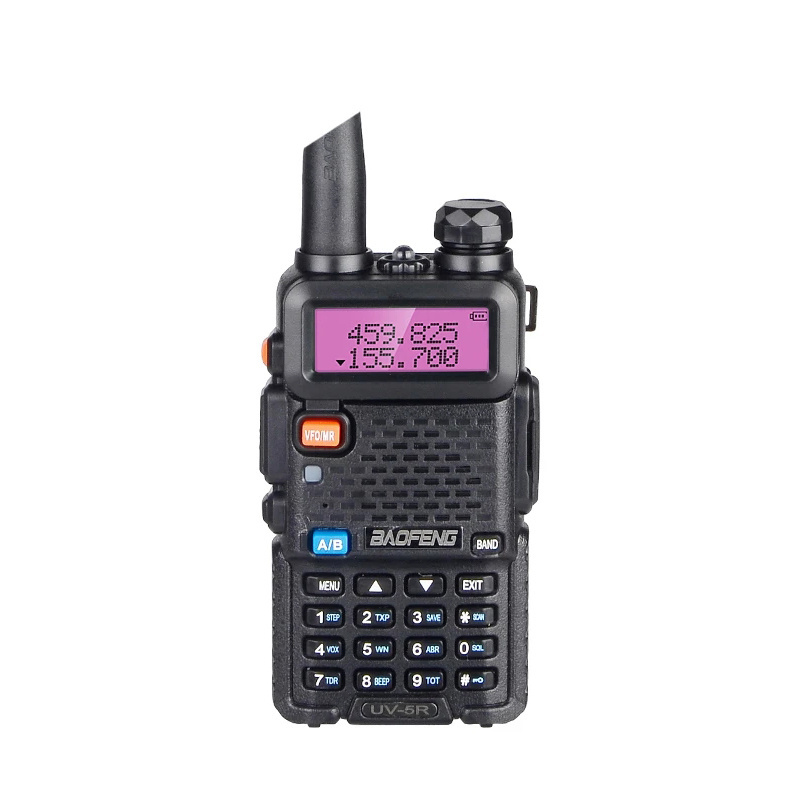

BAOFENG UV-5R
-
Main Features:
-
Dual Band,Dual display
-
Color:
-
Black, Camo, Red, Blue, Yellow
-
Radio Type:
-
Analog Radio
-
Battery capacity:
-
High Capacity
-
OEM:
-
YES
-
Weight:
-
450g
-
Channel Spacing:
-
128
Quick Details
-
Talk Range:
-
3-10KM
-
Terminal style:
-
Handheld
-
Storage Channel:
-
128
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
UV-5R 5W
-
Dimensions:
-
125*65*40mm(not included antenna)
-
Frequency Range:
-
136-174&400-520MHz
-
Product Name:
-
BAOFENG UV-5R
-
Main Features:
-
Dual Band,Dual display
-
Color:
-
Black, Camo, Red, Blue, Yellow
-
Radio Type:
-
Analog Radio
-
Battery capacity:
-
High Capacity
-
OEM:
-
YES
-
Weight:
-
450g
-
Channel Spacing:
-
128
Product Description
FEATURES AND FUNCTIONS:
-Dual-band handheld transceiver with display function menu on the display "LCD"
-DTMF encoded
-Lithium-ion battery with high capacity
-Commercial FM radio receiver (65 MHz ~ 108 MHz)
-Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable
-Function "VOX" (voice operated transmission)
-Alarm function
-Up to 128 memory channels
-Broadband (Wide) / Narrowband (Narrow), selectable
-High power /low (5 W/1 W )selectable
-Display illumination and programmable keyboard
-Function "beep" on the keyboard
-Dual Watch/dual reception
-Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz
-Function "OFFSET" (frequency offset for repeater access)
-Battery saving function "SAVE"
-Timer transmission "TOT" programmable
-Selecting the Scan Mode.
-Function Busy Channel Lock "BCLO"
-Built-in RX CTCSS/DCS scan
-Built-in LED flashlight
-Programmable by PC
-Level Threshold "Squelch" adjustable from 0 to 9
-Crossband reception
-Tone end of transmission
-Built-in key lock
PACKAGE CONTAIN:
1× UV-5R 5W(VHF136-174 & UHF 400-520Mhz) 1× 7.4V 1800mAh Li-ion Battery Pack 1× Dual Band Antenna 1× Charger 1× Belt Clip 1× Handstrap 1× Headphones
PACKAGE CONTAIN:
1× UV-5R 5W(VHF136-174 & UHF 400-520Mhz) 1× 7.4V 1800mAh Li-ion Battery Pack 1× Dual Band Antenna 1× Charger 1× Belt Clip 1× Handstrap 1× Headphones
1×
Manual
1× BOX
TECHNICAL SPECIFICATION:
1.GENERAL:
Frequency range 65MHz-108MHz(Only commercial FM radio reception)
VHF:136MHz-174MHz(Rx/Tx).UHF:400MHz-480MHz (Rx/Tx)
Memory channels Up to 128 channels
Frequency stability 2.5ppm
Frequency step 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz
Antenna impedance 50Ω
Operating temperature -20 ℃ to +60 ℃
Supply voltage Rechargeable Lithium-Ion mAh 7.4V/1800
Consumption in standby ≤75mA
Consumption in reception 380mA
Consumption in transmission ≤1.4 A
Mode of operation Simplex or semi-duplex
Duty cycle 03/03/54 min.(Rx / Tx / Standby)
Dimensions 58mm x 110mm x 32mm
Weight 450 g (approximate)
2.TRANSMITTER:
RF power 5W/1W
Type of modulation FM
Emission class 16KФF3E/11KФF3E (W/N)
Maximum deviation ≤ ± 5 kHz/≤ ± 2.5 kHz (W/N)
Spurious emissions <-60 dB
3.RECEIVER:
Receiver sensitivity 0.2 μ V(at 12 dB SINAD)
Intermodulation 60 dB
Audio output 1000mW
Adjacent channel selectivity 65/60dB
Note:
All specifications shown are subject to change without notice.
Hiking, Climbing, Agriculture, Farm, Security Guard, Port, suitable for More Applicable Enivronments
