Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
ZTE
-
Place of Origin:
-
Guangdong, China
-
Working band:
-
FDD: B1/2/3/5/7/8/20/28,TDD: B38/40/41
-
WIFI:
-
2.4G/5G, WiFI 802.11 b/g/n/ac, 64 WiFi users
-
Interfaces:
-
4X Wan/Lan port,1X Rj11 tel port
-
Buttons:
-
Power, Reset, WPS
-
VPN:
-
PP2P/L2TP/IPSec
-
IPv4,IPv6:
-
Support
-
Dimension:
-
145.5mm *27mm*182mm
-
WIFI Security:
-
OPEN&WPA-PSK&WPA2-PSK&WPA-PSK/WPA2-PSK
-
Voice:
-
CSFB&VoLTE
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
ZTE
-
Place of Origin:
-
Guangdong, China
-
Working band:
-
FDD: B1/2/3/5/7/8/20/28,TDD: B38/40/41
-
WIFI:
-
2.4G/5G, WiFI 802.11 b/g/n/ac, 64 WiFi users
-
Interfaces:
-
4X Wan/Lan port,1X Rj11 tel port
-
Buttons:
-
Power, Reset, WPS
-
VPN:
-
PP2P/L2TP/IPSec
-
IPv4,IPv6:
-
Support
-
Dimension:
-
145.5mm *27mm*182mm
-
WIFI Security:
-
OPEN&WPA-PSK&WPA2-PSK&WPA-PSK/WPA2-PSK
-
Voice:
-
CSFB&VoLTE
Product Specification
|
Item
|
Sub Item
|
Description
|
|
Basical Information
|
Type
|
4G LTE cat6
|
|
|
Model Name
|

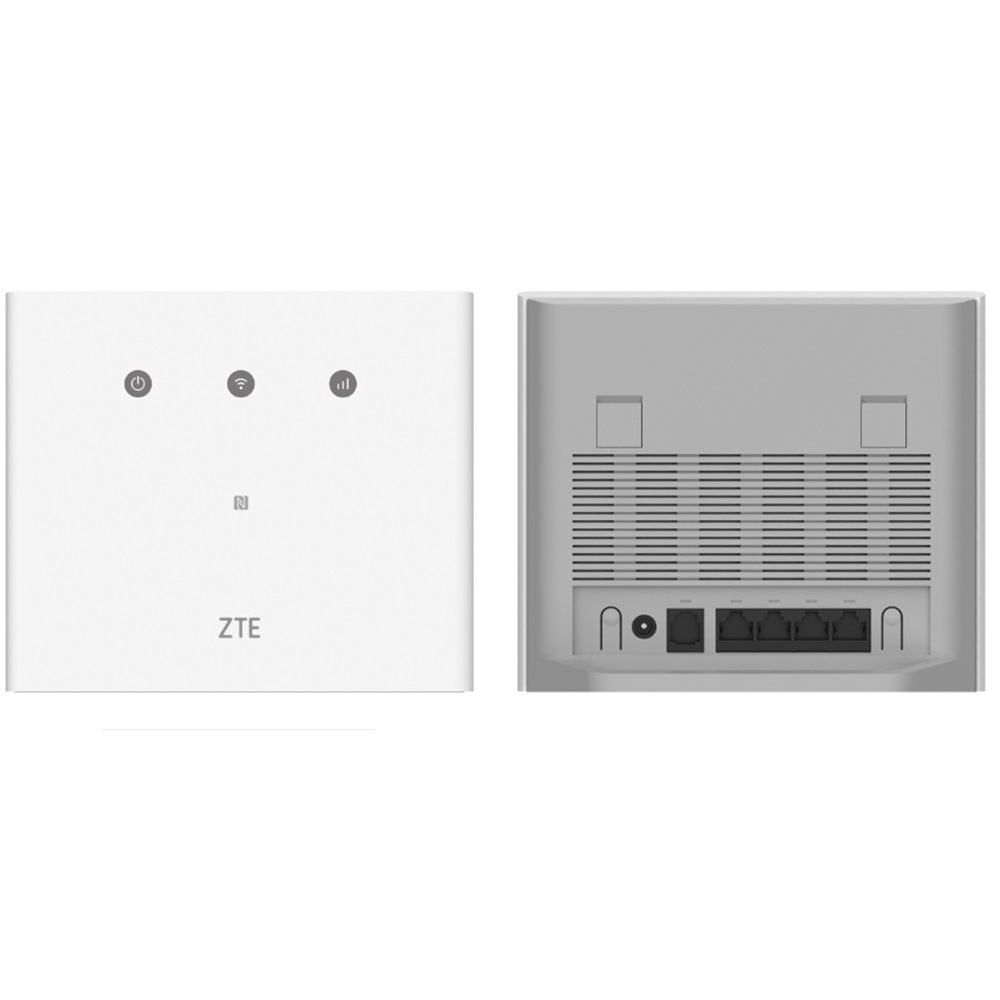

ZTE MF296R
|
|
|
Dimension
|
145.5mm *27mm*182mm
|
|
Working band
|
4G LTE
|
FDD: B1/2/3/5/7/8/20/28,TDD: B38/40/41
|
|
|
3G UMTS
|
WCDMA: B1/2/5/8
|
|
|
WIFI
|
2.4G/5G, WiFI 802.11 b/g/n/ac, 64 WiFi users
|
|
Speed
|
Maximum Data Throughput
|
FDD-LTE(DL/UL) 300Mbps/50Mbps
HSPA+ (DL/UL) 42/5.76Mbps |
|
Hardware
|
Chipset
|
MT7621A + ASR1826
|
|
|
LED indicator
|
Power/ Wi-Fi/Network mode/LAN status
|
|
|
Interfaces
|
1X nano SIM(4FF) slot
|
|
|
|
4X Wan/Lan port,1X Rj11 tel port
|
|
|
|
1Xpower adapter port
|
|
|
|
2XSMA Slot(external 4G antenna)
|
|
|
Buttons
|
Power, Reset, WPS
|
|
|
Power supply
|
AC (input): 100V-240V 50Hz/60Hz, DC (output): 12V/1.5A
|
|
Software
|
Management
|
via WebUI:192.168.0.1
|
|
|
Language
|
English,Chinese
|
|
|
WIFI Mode
|
AP/STATION mode
|
|
|
WIFI Security
|
OPEN&WPA-PSK&WPA2-PSK&WPA-PSK/WPA2-PSK;
|
|
|
Voice
|
CSFB&VoLTE
|
|
|
VPN
|
No
|
|
|
IMEI/TTL changing
|
Support
|
|
|
IPv4,IPv6
|
Support
|
|
|
Firewall
|
Mac/IP address filter, Port forwarding, WiFi Black/White list
|
|
|
Other feature
|
SMS,Phone Book, Data Statistics,USSD,DHCP,DNS,DMZ
|
