Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANGIR
-
Model Number:
-
JB-2P
-
Rated Frequency (Hz):
-
50H/60Hz
-
Number of Pole:
-
2
-
Certificate:
-
TUV
-
Standard:
-
IEC60898-1/GB10963.1
-
Application:
-
Household
-
Mechanical Life:
-
20000 Times
-
Function:
-
Voltage
-

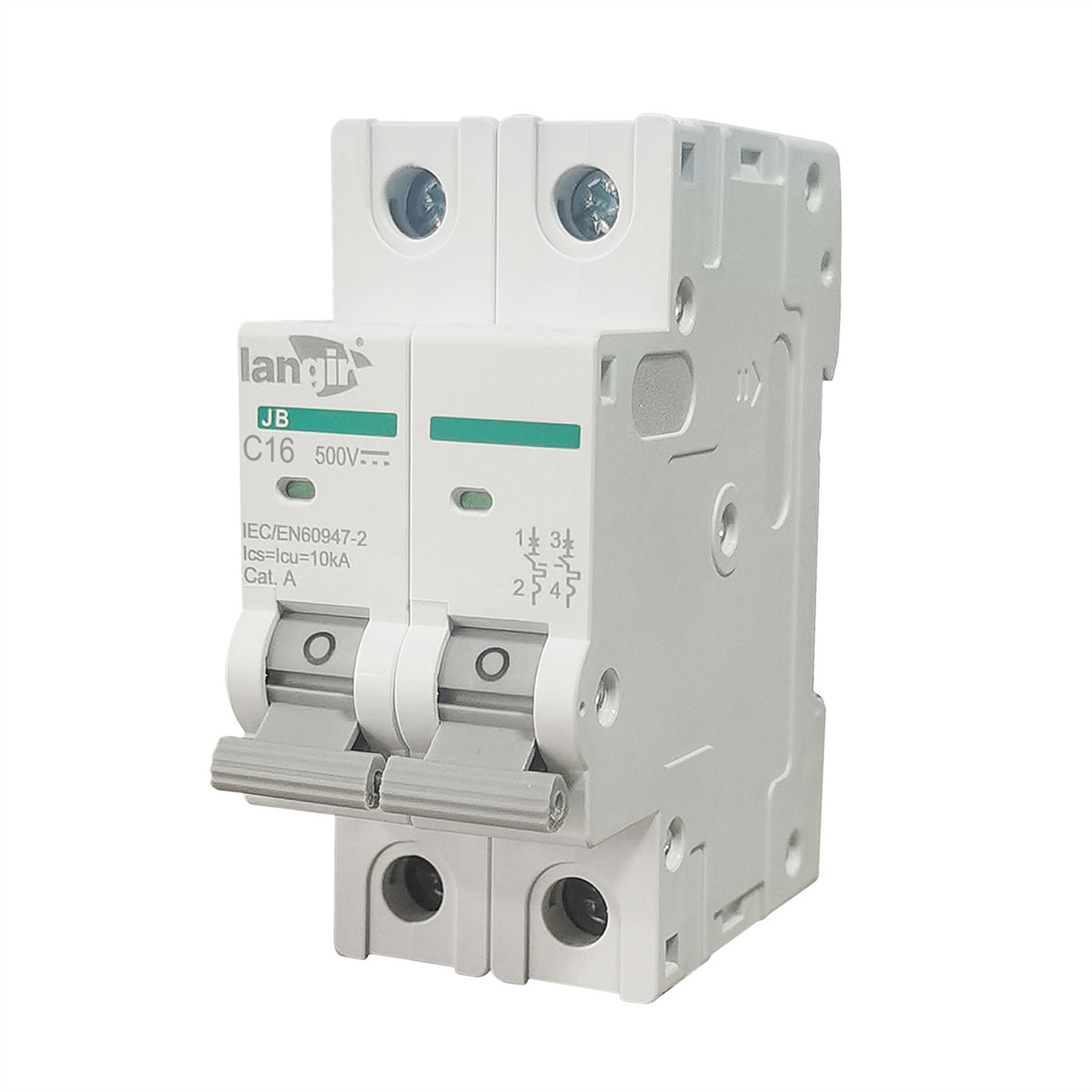

Product name:
-
Mini Circuit Breaker
-
Installation:
-
35mm DIN Rail
-
Rated current:
-
1A-63A
-
Pole:
-
1P/2P/3P/4P
Quick Details
-
Breaking Capacity:
-
10KA
-
Rated Voltage:
-
250
-
Rated Current:
-
1-63A
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANGIR
-
Model Number:
-
JB-2P
-
Rated Frequency (Hz):
-
50H/60Hz
-
Number of Pole:
-
2
-
Certificate:
-
TUV
-
Standard:
-
IEC60898-1/GB10963.1
-
Application:
-
Household
-
Mechanical Life:
-
20000 Times
-
Function:
-
Voltage
-
Product name:
-
Mini Circuit Breaker
-
Installation:
-
35mm DIN Rail
-
Rated current:
-
1A-63A
-
Pole:
-
1P/2P/3P/4P
Product Information
|
Operating voltage (Ue)
|
|
2P=500 V DC
|
|
|
|||
|
Rated insulation voltage (Ui)
|
|
1,000 V DC
|
|
|
|||
|
Breaking capacity (Icu)
|
|
10kA
|
|
|
|||
|
Impulse voltage (Uimp)
|
|
4kV
|
|
|
|||
|
Electrical connection
|
|
By the bottom for In and Out
|
|
|
|||
|
Number of poles
|
|
1P, 2P, 3P, 4P
|
|
|
|||
|
Standards
|
|
IEC 60947-2 EN 60947-2
|
|
|
|||
|
Rated service breaking capacity (Ics)
|
|
100 % of the Icu
|
|
|
|||
|
Endurance (O-C)
|
Electrical
|
1,500 cycles (where L/R=2 ms)
|
|
|
|||
|
|
Mechanical
|
20,000 cycles
|
|
|
|||
|
Mechanical
|
|
20,000 cycles
|
|
|
|||
|
Degree of pollution
|
|
2
|
|
|
|||
|
Category
|
|
A (no delay in accordance with IEC / EN 60947-2 standards)
|
|
|
|||
|
Degree of protection (IEC 60529)
|
Device in modular enclosure
|
IP40
|
|
|
|||
|
Tropicalisation
|
|
Relative humidity: 95 % at 55°C in accordance with IEC 60068-2 and GB 14048.2 standards
|
|
|
|||
|
Temperature
|
Operating
|
-25°C to 70 °C
|
|
|
|||
|
|
Storage
|
-40°C to 85°C
|
|
|
|||
