Quick Details
-
Fiber Diameter:
-
2~5 μm
-
Thermal Conductivity:
-
0.05~0.195 W/m.k
-
Width:
-
30~500 mm
-
Length:
-
30000 mm
-
Shrinkage (1800℉, 3h):
-
0.3
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HYRD
-
Model Number:
-
JSCW-289
-
classification temperature:
-
1260 ℃
-
work temperature:
-
1150 ℃
-
density:
-
500~550 kg/m³
-
warp density:
-
48~60 piece/10cm
-
weft density:
-
21~30 piece/10cm
-
organic content:
-
≤ 15%
-
color:
-
white
Quick Details
-
Chemical Composition:
-
Ceramic fibber textiles
-
Ultimate Strength (≥ MPa):
-
0.5
-
Working Temperature:
-
1050~1400 ℃
-
Fiber Diameter:
-
2~5 μm
-
Thermal Conductivity:
-
0.05~0.195 W/m.k
-
Width:
-
30~500 mm
-
Length:
-
30000 mm
-
Shrinkage (1800℉, 3h):
-
0.3
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HYRD
-
Model Number:
-
JSCW-289
-
classification temperature:
-
1260 ℃
-
work temperature:
-
1150 ℃
-
density:
-
500~550 kg/m³
-
warp density:
-
48~60 piece/10cm
-
weft density:
-
21~30 piece/10cm
-
organic content:
-
≤ 15%
-
color:
-
white

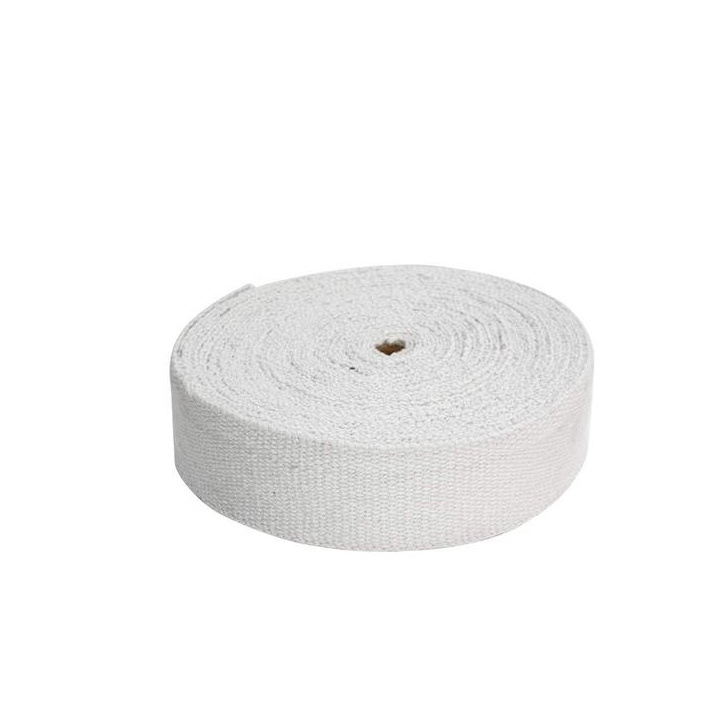

White Ceramic Fiber Products Insulation / Blankets
Typical Application
1.Industrial furnace wall lining and bricking-up insulating layer
2.Heat insulation of high temperature and high-heat equiments
3.Heat insulation , fireproof and sound insulation of aerospace, ship building industries
4.Combustion chamber of boilers&heaters
|
Grade
|
|
Common
|
Standard
|
High Pure
|
High Aluminium
|
Zirconium
|
|||||
|
Classification
Temperature(°C)
|
|
1000
|
1260
|
1260
|
1300
|
1430
|
|||||
|
Working
Temperature(°C)
|
|
≤1000
|
1150
|
1200
|
1260
|
1400
|
|||||
|
Density(kg/m3)
|
|
220-500
|
220-500
|
220-500
|
220-500
|
220-500
|
|||||
|
Thermal conductivity
by mean temp(W/m.k.)
(density 285kg/m3)
|
|
0.085(400°C)
0.132(800°C)
0.180(1000°C)
|
0.085(400°C)
0.132(800°C)
0.180(1000°C)
|
0.085(400°C)
0.132(800°C)
0.180(1000°C)
|
0.085(400°C)
0.132(800°C)
0.180(1000°C)
|
0.085(400°C)
0.132(800°C)
0.180(1000°C
|
|||||
|
Compression strength(Mpa)
|
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|||||
|
Chemical
Composition (%) |
Al2O3
|
44
|
46
|
47-49
|
52-55
|
32-33
|
|||||
|
|
Al2O3+SiO2
|
96
|
97
|
99
|
99
|
-
|
|||||
|
|
Al2O3+SiO2+ZrO2
|
-
|
-
|
-
|
-
|
17-18
|
|||||
|
|
ZrO2
|
-
|
-
|
-
|
-
|
15-17
|
|||||
|
|
Fe2O3
|
<1.2
|
<1.0
|
0.2
|
0.2
|
0.2
|
|||||
|
|
Na2O+K2O
|
≤0.5
|
≤0.5
|
0.2
|
0.2
|
0.2
|
|||||
|
Size (mm)
|
|
Other sizes and shapes on the working conditions
|
|
|
|
|
|||||
