Quick Details
-
Brand Name:
-
Veinasa
-
Model Number:
-
XS-SD1
-
Product name:
-
Anemometer
-
Measurement range:
-
wind speed:0~45m/s wind direction:0~360°
-
Accuracy:
-
wind speed:±(0.3+0.03V)m/s wind direction:±3°
-
Long term stability:
-
wind speed:<0.1m/s/y wind direction: 0°/y
-
Power supply mode:
-
AC 220V; DC 24V;DC 12V;DC 5V
-
Communication mode:
-
RS232,RS485,USB,GPRS
-
Size:
-
165 mm*125 mm*75mm
-
Working environment:
-
-40℃~50℃;5%RH~95%RH
-
Store-in:
-
4M bit (57344 meteorological data)
-
Interrecord gap:
-
1 minute- 240 min continuous adjustable
Quick Details
-
Warranty:
-
1 year
-
Type:
-
wind speed and direction sensor with data logger
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Veinasa
-
Model Number:
-
XS-SD1
-
Product name:
-
Anemometer
-
Measurement range:
-
wind speed:0~45m/s wind direction:0~360°
-
Accuracy:
-
wind speed:±(0.3+0.03V)m/s wind direction:±3°
-
Long term stability:
-
wind speed:<0.1m/s/y wind direction: 0°/y
-
Power supply mode:
-
AC 220V; DC 24V;DC 12V;DC 5V
-
Communication mode:
-
RS232,RS485,USB,GPRS
-
Size:
-
165 mm*125 mm*75mm
-
Working environment:
-
-40℃~50℃;5%RH~95%RH
-
Store-in:
-
4M bit (57344 meteorological data)
-
Interrecord gap:
-
1 minute- 240 min continuous adjustable

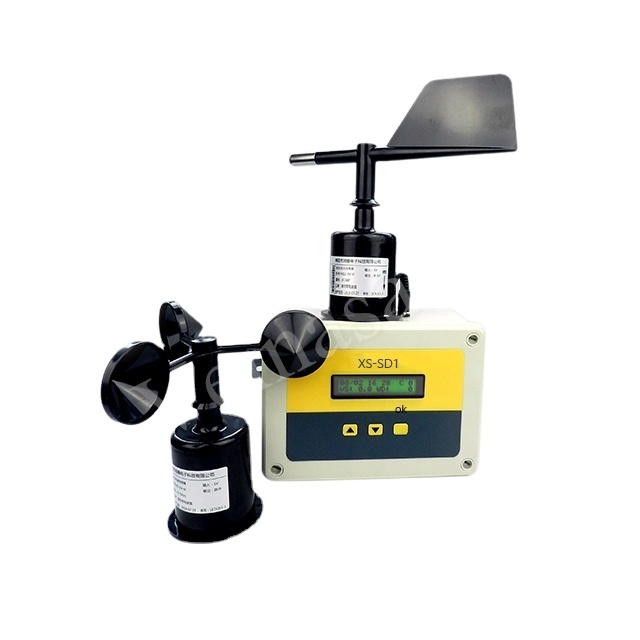

XS-SD1 Digital Anemometer Price Wind Speed Measurement for Cranes Direction Sensor Power Plant Physical Measuring Instruments
Products Description
The instrument is equipped with
three communication interfaces (rs232/rs485/usb)
for establishing communication connections with computers, Remote observation of real time wind speed and wind direction can be made by supporting upper computer software. Users can also use the function of the perfect meteorological software for further processing and analysis of meteorological data.
Product Paramenters
|
Item
|
Technical Specification
|
|
|
|
|
Wind speed
|
Wind direction
|
|
|
Measurement range
|
0~45m/s
|
0~360°
|
|
|
Accuracy
|
±(0.3+0.03V)m/s
|
±3°
|
|
|
Long term stability
|
<0.1m/s/y
|
0°/y
|
|
|
Power supply mode
|
AC 220V; DC 24V;DC 12V;DC 5V
|
|
|
|
Store-in
|
4M bit (57344 meteorological data)
|
|
|
|
Record gap
|
1 minute— 240 min continuous adjustable
|
|
|
|
Communication mode
|
RS232, RS485, USB, GPRS
|
|
|
|
Size
|
165 mm×125 mm×75mm
|
|
|
|
Working environment
|
-40℃~50℃;5%RH~95%RH
|
|
|
Product Features
1. High definition character liquid crystal display screen with friendly man-machine interface
2. High wind speed , high measuring precision of wind direction , stable and reliable system
3. Bulk storage of up to 57344 meteorological data (data recording intervals can be set between 1-240 minutes)
4. The communication interface is humanized, and the three communication interfaces can be chosen according to needs.
5. Powerful upper computer software to facilitate remote monitoring and meteorological data processing and analysis
6. Scientific and reasonable structural design and convenient installation
Application Field
Applications of
XS-SD1 Digital Anemometer Price Wind Speed Measurement for Cranes Direction Sensor Power Plant Physical Measuring Instruments:
Agriculture application: To monitor wind speed and wind direction value.
Other fields application: By observing meteorological factors such as wind speed and wind direction. Assist scientific research, provide services for constuction, enviromental protection and monitoring, and facilitate people's life.
Other fields application: By observing meteorological factors such as wind speed and wind direction. Assist scientific research, provide services for constuction, enviromental protection and monitoring, and facilitate people's life.
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor CXS01.
Q: What’s the main characteristics of this wind speed and wind direction sensor?
A: Congratulations, the XS-SD1 adopts a high definition liquid crystal display screen, has large
storage space, support multiple output mode. And it is high quality but factory price.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC5V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A:This meter has a high definition character liquid crystal display screen with friendly man-machine interface and it can storage of up to 57344 meteorological data (data recording intervals can be set between 1-240 minutes) .
Q: What's the lifetime of this wind speed and wind direction meter?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
XS-SD1 Digital Anemometer Price Wind Speed Measurement for Cranes Direction Sensor Power Plant Physical Measuring Instruments
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
XS-SD1 Digital Anemometer Price Wind Speed Measurement for Cranes Direction Sensor Power Plant Physical Measuring Instruments
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
XS-SD1 Digital Anemometer Price Wind Speed Measurement for Cranes Direction Sensor Power Plant Physical Measuring Instruments
