Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TID
-
Model Number:
-
TD-666
-
Dimensions:
-
107*54*31mm
-
Frequency Range:
-
VHF:136-174MHz/UHF:400-470MHz
-
Color:
-
black
-
Power switchable:
-
High / Low power switchable
-
Operation Voltage:
-
DC7.4V
-
Support:
-
UHF:4.0W/1.0W,VHF:5.0W/1.0W
-
opterating temperature:
-
-20~ 60℃
-
opterating Voltage:
-
DC7.4V
-
Channel spacing:
-
12.5 /25.0KHz
-
Battery:
-
1800mAh(Li-ion)
-
Weight:
-
231g
Quick Details
-
Talk Range:
-
5 km
-
Terminal style:
-
Handheld
-
Storage Channel:
-
16, 16 channels by voice annunciation
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TID
-
Model Number:
-
TD-666
-
Dimensions:
-
107*54*31mm
-
Frequency Range:
-
VHF:136-174MHz/UHF:400-470MHz
-
Color:
-
black
-
Power switchable:
-
High / Low power switchable
-
Operation Voltage:
-
DC7.4V
-
Support:
-
UHF:4.0W/1.0W,VHF:5.0W/1.0W
-
opterating temperature:
-
-20~ 60℃
-
opterating Voltage:
-
DC7.4V
-
Channel spacing:
-
12.5 /25.0KHz
-
Battery:
-
1800mAh(Li-ion)
-
Weight:
-
231g
Related Product Recommendation
TD-G5
TD-DP650 digital
TD-DP880 digital
Product Description

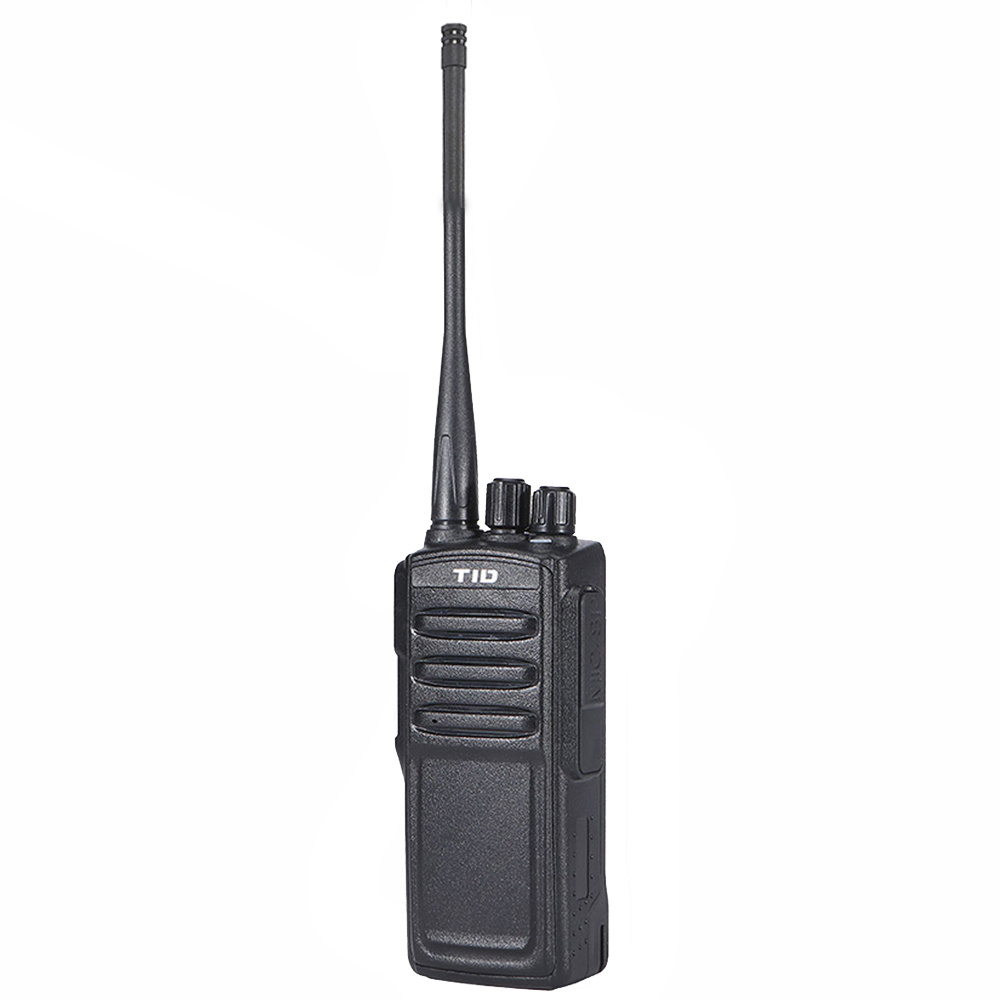

Handheld Radio Station TD-666 Communication Receiver Long Distance Walkie Talkie
l 16 Channels with Scan Function
l Power of 5 Watts in VHF 136-174Mhz or UHF400-520MHz
l Programming password.
l Channel widths 12.5 kHz or 25 kHz.
l Battery: 2200mAh (Li-ion)
l 7.4V Operating Voltage
l Channel announcement in English
l CTCSS and DCS tones.
l Transmission timer (TOT).
l Busy channel lock (BCLO)
l Low battery alert.
l VOX for hands-free use.
l Integrated coding by voice inversion (scrambling)
l 2-Pin Accessories Connector
Channel scanning and priority scanning function
l Dimensions: 104.5X59.5X33.5mm (without antenna)
l Power of 5 Watts in VHF 136-174Mhz or UHF400-520MHz
l Programming password.
l Channel widths 12.5 kHz or 25 kHz.
l Battery: 2200mAh (Li-ion)
l 7.4V Operating Voltage
l Channel announcement in English
l CTCSS and DCS tones.
l Transmission timer (TOT).
l Busy channel lock (BCLO)
l Low battery alert.
l VOX for hands-free use.
l Integrated coding by voice inversion (scrambling)
l 2-Pin Accessories Connector
Channel scanning and priority scanning function
l Dimensions: 104.5X59.5X33.5mm (without antenna)
|
Speciation
|
Item
|
TD-666
|
|
General Specifications
|
General Specifications
|
Frequency Range
|
|
|
Channel Spacing
|
16
|
|
|
Channel Temperature
|
-20°C~ 60°C
|
|
|
Operating Voltage
|
7.4V
|
|
|
Dimensions(L*W*H)
|
113×51×32mm
|
|
|
Weight
|
261g
|
|
|
Power Output
|
VHF:5W/1W, UHF: 5W/1W
|
|
|
Modulaion
|
F3E
|
|
|
Modulation Limiting
|
±2.5KHz/12.5KHz;±5.0KHz/25KHz
|
|
|
Spurious Emission
|
45/40dB
|
|
|
Adjacent Channel Power
|
60/70dB
|
|
|
Sensitivity
|
≤0.30/0.20μV
|
|
|
Adjacent Channel selectivity
|
60/70dB
|
|
|
Intermodulation
|
65dB
|
|
|
Audio Power outpur
|
600mW
|
|
|
Stand-by Current
|
48mA
|
Detailed Images
Packing & Delivery
Packing
According to the customer's requirement, to customize boxes or using our standard box packaging.
Delivery
By air/sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS etc.
1. UPS, DHL, EMS, HK EMS, FEDEX, HK post, TNT and so on (door to door)
2. For air shipment, please choose your favorite shipping method according to your requirements
3. The shipping cost varies in different location, also depends on specific weight. We will recommend the cheapest and safest way according to your detailed quantities.
4. Shipping period varies depending upon your location. Normally, it will take around 3-7days from China to destination country, but some remote places need more add 1-3 days.
