Quick Details
-
Model Number:
-
SK-10629
-
Place of Origin:
-
Taiwan
-
Technology:
-
Forged
-
Working Load Limit:
-
Please kindly refer to the chart
-
Minimum Breaking Load:
-
Please kindly refer to the chart
-
Certificates:
-
ISO9001, SGS, DGUV Test
-
Chains Size:
-
6-22 mm
-
Hooks Grade:
-
Grade 100 (G100)
-
Hooks Type:
-
Swivel self locking hook with bearing
-
Weight:
-
0.2-7.0 kg
Quick Details
-
Finish:
-
Powder coated
-
Application:
-
Heavy Industry, General Industry, Automotive Industry
-
Material:
-
Alloy steel
-
Model Number:
-
SK-10629
-
Place of Origin:
-
Taiwan
-
Technology:
-
Forged
-
Working Load Limit:
-
Please kindly refer to the chart
-
Minimum Breaking Load:
-
Please kindly refer to the chart
-
Certificates:
-
ISO9001, SGS, DGUV Test
-
Chains Size:
-
6-22 mm
-
Hooks Grade:
-
Grade 100 (G100)
-
Hooks Type:
-
Swivel self locking hook with bearing
-
Weight:
-
0.2-7.0 kg

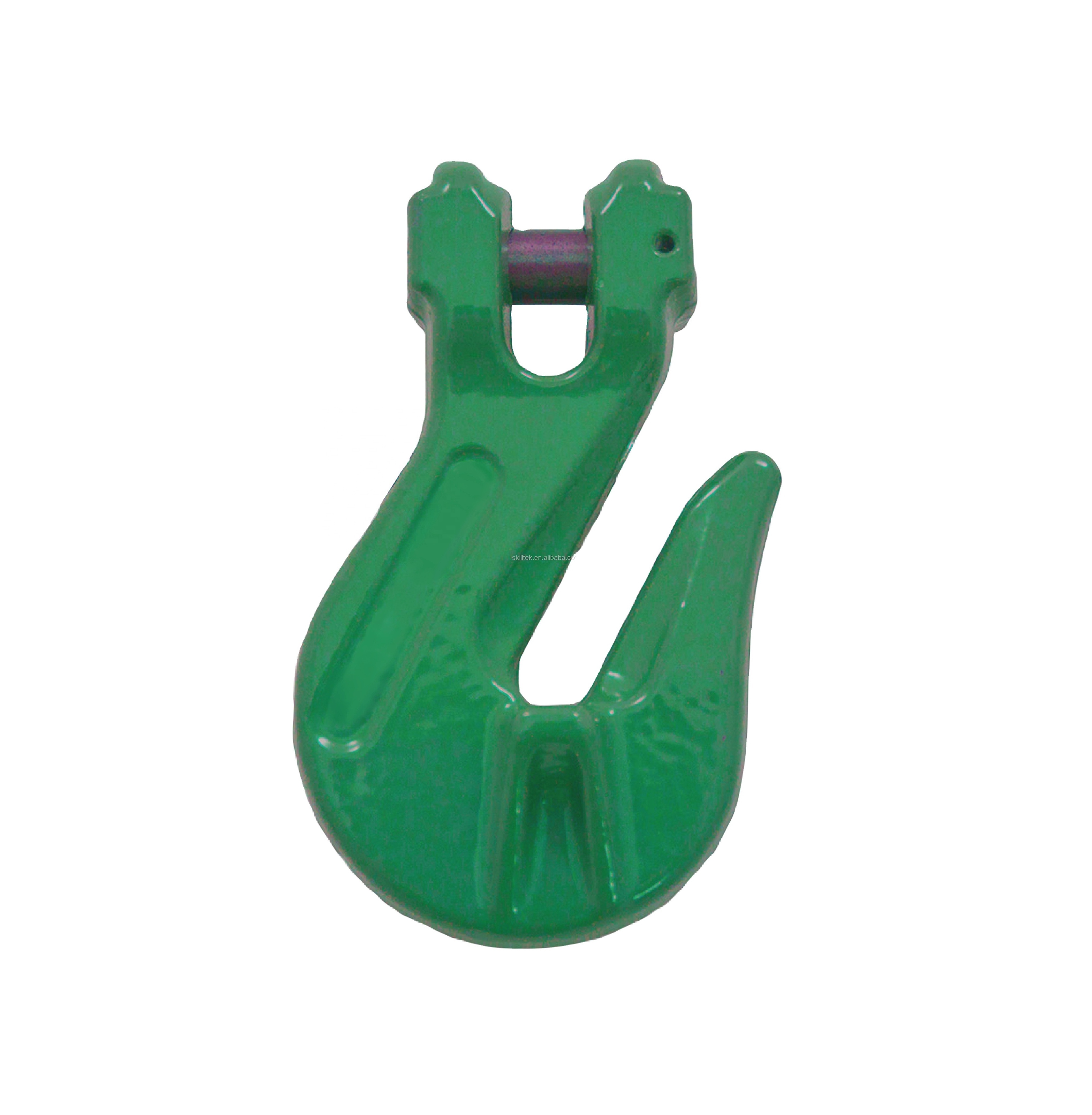

Taiwan quality Grade 100 alloy metal
clevis grab hook
| Technology | Forged |
| Working Load Limit | Please kindly refer to the chart |
| Minimum Breaking Load | Please kindly refer to the chart |
| Certificates | ISO9001, SGS, DGUV Test |
| Chains Size | 6-22 mm |
| Hooks Grade | Grade 100 (G100) |
| Hooks Type | Self locking hook |
| Weight | 0.2-7.0 kg |
SPECIAL SERVICE
1. Support FREE SAMPLE.
2. Support CUSTOMIZATION. (Logo, Color)
Logo by laser: MOQ 100 pcs / size.
Logo by molding:MOQ 3,000 pcs / size.
Custom Color:MOQ 1,000 pcs / size
| Model Number |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
Weight (kg) | Working Load Limit (Ton) | Proof Load (Ton) | Breaking Load (Ton) |
|
SK-10629 -6-10 |
28
|
18 | 42 | 71 |
7
|
42.5 | 23 | 7 | 0.135 | 1..4T | 3.5T | 5.6T |
|
SK-10629 -7/8-10 |
39 | 22.5 | 50 |
96.4
|
9.3 | 57.8 | 31.5 | 10 | 0.39 | 2.5T |
6.25T
|
10.0T |
|
SK-10629 -10-10 |
46 | 28 | 70 | 128 | 12 | 74 | 43.5 | 12 | 0.9 | 4.0T | 10.0T | 16.0T |
|
SK-10629 -13-10 |
57.5 | 35 | 86 | 154.5 | 16 | 93 | 51.5 | 15 | 1.583 | 6.7T | 16.75T | 26.8T |
|
SK-10629 -16-10 |
67 | 40 | 100 | 180 | 18 | 107.5 | 58 |
22
|
2.4 |
10.0T
|
25.0T | 40.0T |
|
SK-10629 -18/20 -10 |
80 | 46 | 122 | 216 | 23 | 133.5 | 66 | 25 |
4.2
|
16.0T | 40.0T | 64.0T |
|
SK-10629 -22-10 |
90 | 50 | 138.5 | 250 | 25 | 150 | 99 | 26 | 7 | 19.0T | 47.5T | 76.0T |
