Quick Details
-
Memory Type:
-
DDR3, SO DDRIII
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
SOC
-
FSB / HT:
-
1600/1333MHz
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Celeron J1900/2.0GHz quad-core processor
-
Memory:
-
supports 1600/1333MHz DDR3L,up to 8GB Ram
-
Power type:
-
DC_12V single power input
-
Store:
-
1* SATA hard disk interface
-
Network:
-
2* GbE
-
Display:
-
1*VGA, 1*HD, 1*LVDS
-
USB:
-
4*USB
-
PS/2:
-
1* PS/2 mouse keyboard interface (1*6Pin)
-
Fan interface:
-
1* CPU fan interface 4pin
-
Operating System:
-
WIN7/WIN8/WIN10/LINUX
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
Mini PC;Thin Client;Digital Signage etc.
-
Form Factor:
-
120mm x 120mm
-
Memory Type:
-
DDR3, SO DDRIII
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
SOC
-
FSB / HT:
-
1600/1333MHz
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Celeron J1900/2.0GHz quad-core processor
-
Memory:
-
supports 1600/1333MHz DDR3L,up to 8GB Ram
-
Power type:
-
DC_12V single power input
-
Store:
-
1* SATA hard disk interface
-
Network:
-
2* GbE
-
Display:
-
1*VGA, 1*HD, 1*LVDS
-
USB:
-
4*USB
-
PS/2:
-
1* PS/2 mouse keyboard interface (1*6Pin)
-
Fan interface:
-
1* CPU fan interface 4pin
-
Operating System:
-
WIN7/WIN8/WIN10/LINUX
Specification
|

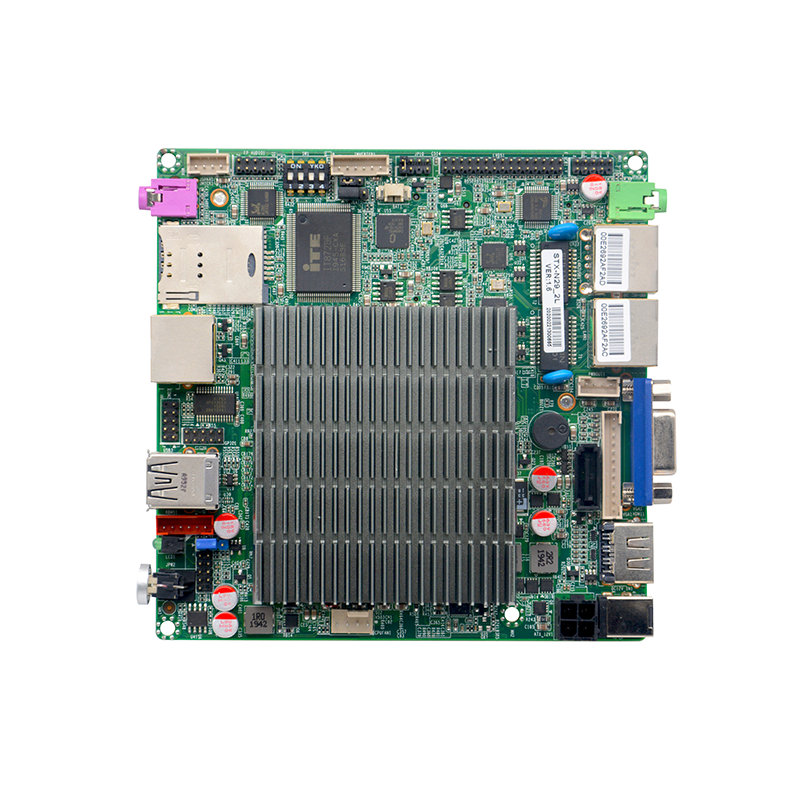

STX-N29_2L
(12cm x 12cm) |
Based on Intel Bay trail SOC platform
|
|
|
Integrated Intel J1900 2.00GHz Quad core processor
|
|
|
Intel HD Graphics;VGA+HDMI+LVDS
|
|
|
1*SO DDRIII Socket,up to 8GB
|
|
|
2* RJ-45 network interface/3*USB2.0/1*USB3.0/1*RS232/1* PS2
|
|
|
1*mSATA (SSD/Wifi)/1*mini-pcie(Wifi/3G)
|
|
|
Support GPIO;Watchdog Timer;Audio power amplifier
|
|
|
Support DC_12V Input
|
Product Description
Application
We have a
comprehensive layout
in the fields of
smart loT and cloud computing
.Our products have been widely used in
i
ndustrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, military field, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
