Quick Details
-
Power:
-
7500
-
Weight:
-
180 KG
-
Dimension(L*W*H):
-
115*45*120cm
-
Product name:
-

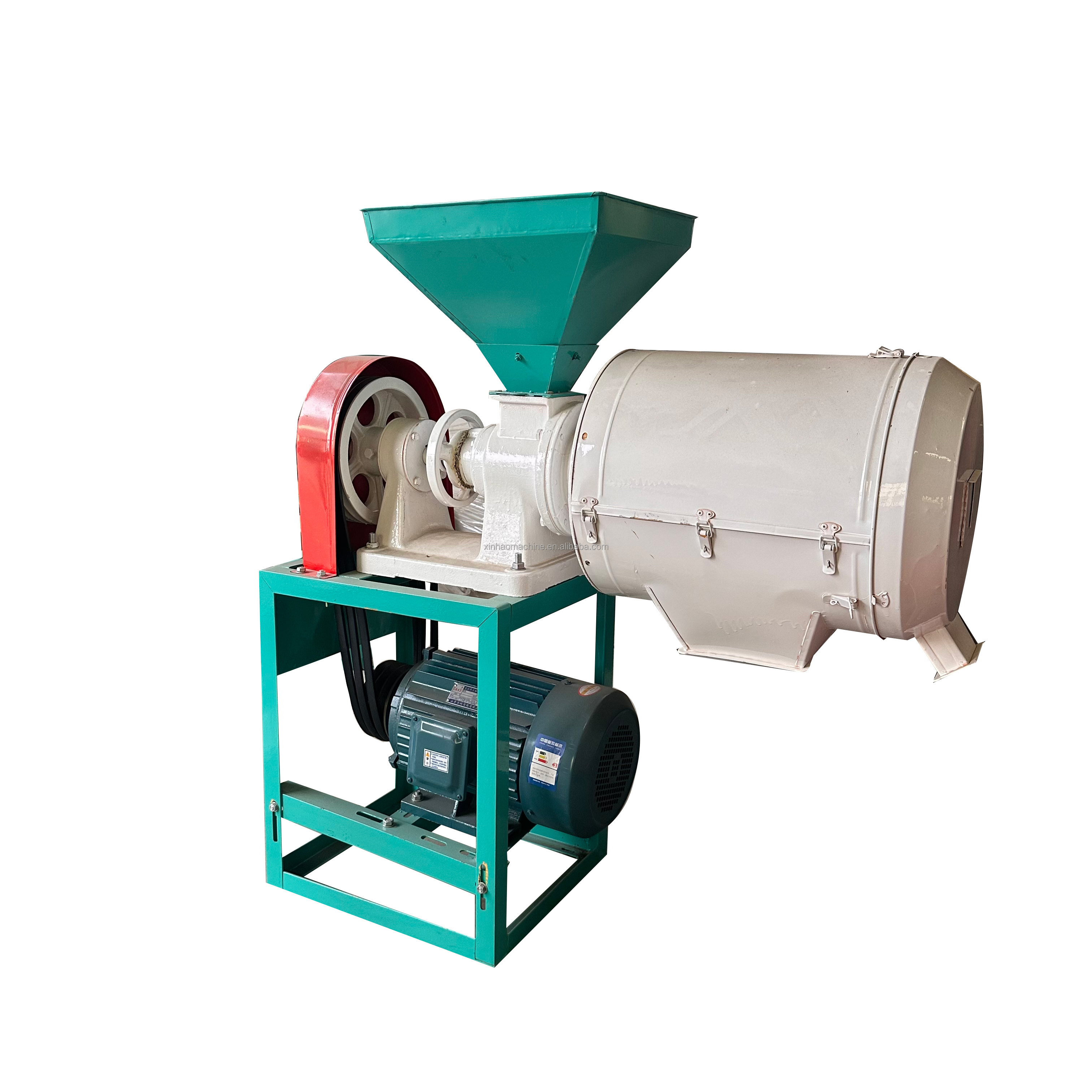

Corn Grinding Mill
-
Application:
-
Food Flour Grinding Mill Machine
-
Raw material:
-
Wheat Maize Corn
-
Name:
-
Electric Grinding Machine
-
Function:
-
Multifunction Flour Grinder
-
Usage:
-
Grinding Wheat Maize Corn Rice
-
Type:
-
Grain Processing Equipment
-
Final products:
-
Super Fine Maize Flour
-
Keywords:
-
Electric Grain Mill
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINHAO
-
Voltage:
-
380V
-
Power:
-
7500
-
Weight:
-
180 KG
-
Dimension(L*W*H):
-
115*45*120cm
-
Product name:
-
Corn Grinding Mill
-
Application:
-
Food Flour Grinding Mill Machine
-
Raw material:
-
Wheat Maize Corn
-
Name:
-
Electric Grinding Machine
-
Function:
-
Multifunction Flour Grinder
-
Usage:
-
Grinding Wheat Maize Corn Rice
-
Type:
-
Grain Processing Equipment
-
Final products:
-
Super Fine Maize Flour
-
Keywords:
-
Electric Grain Mill
|
Type
|
TYM-278
|
|
Power
|
7.5KW
|
|
Yield
|
400-500KG/H
|
|
Size（L*W*H）
|
115*45*120 CM
|
|
Weight
|
200 KG
|
Working principle: The matching surface of the inner and outer grinding head of the grinding machine is conical, the upper part of the grinding head is composed of two centripetal ball bearings as two main supporting points, and the cylinder at the lower end of the inner and outer grinding head is used as a rotating auxiliary supporting point, and the clearance of the inner and outer grinding head is adjusted by the axial movement of the inner grinding head. Using the relative movement of the movable tooth plate and the fixed tooth plate, the coarse grain is ground by the impact of the teeth, friction and the impact between the materials, etc. The ground grain falls directly from the gap of the grinding head to the bottom of the roller, and the flour and bran (seed coat) are separated by the brush and the bottom of the adjustable gap.
Cone grinding machine has a simple structure, consisting of feeding, adjusting, grinding, screening four parts, suitable for small flour processing plants in towns and villages, processing wheat, corn, beans, grains, potatoes and other grains into flour or starch, and can process refined feed, salt, plastics, rubber, chemical raw materials, wood flour and so on. Good processing and installation technology, small size, easy to operate and use, not easy to produce excessive torque or bond flour.
