Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Laser Source
-
Place of Origin:
-
China
-
Brand Name:
-
Domain Laser
-
Weight (KG):
-
120 KG
-
Laser power:
-
100W
-
Cleaning process:
-
Laser cleaning
-
Scan width:
-
10-60mm
-
Laser wavelength:
-
1055~1070 nm
-
Working temperature:
-
5-40℃
-
Cooling method:
-
Air cooling
-
Application:
-
Metal products
-
color:
-
White-bule
Quick Details
-
Power:
-
100W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
Orion
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Laser Source
-
Place of Origin:
-
China
-
Brand Name:
-
Domain Laser
-
Weight (KG):
-
120 KG
-
Laser power:
-
100W
-
Cleaning process:
-
Laser cleaning
-
Scan width:
-
10-60mm
-
Laser wavelength:
-
1055~1070 nm
-
Working temperature:
-
5-40℃
-
Cooling method:
-
Air cooling
-
Application:
-
Metal products
-
color:
-
White-bule

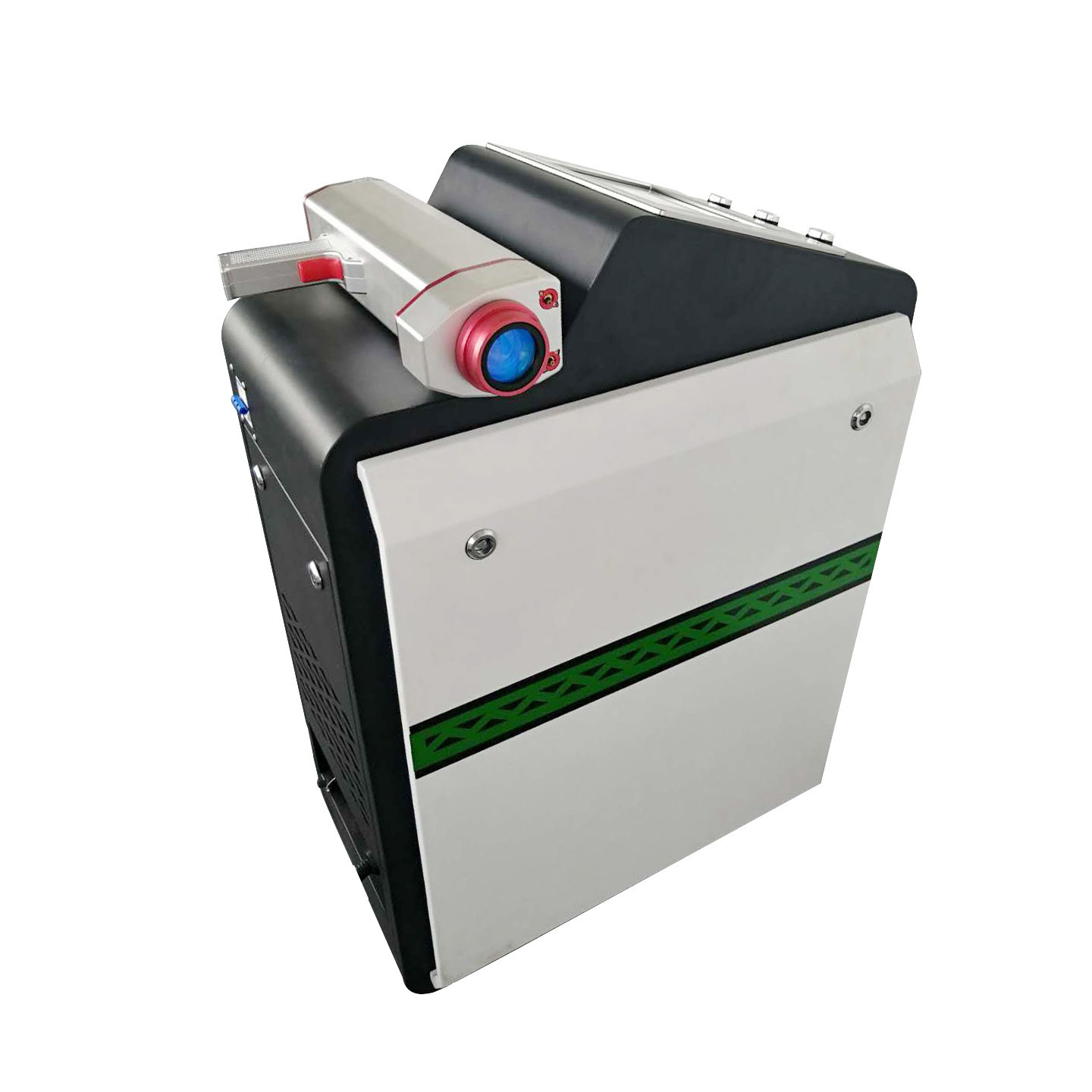

Fiber laser cleaning laser galvo scanner for metal surface deep laser clean and rust removal and corrosion rust cleaning
Introduction:
Laser cleaning machine is a new generation of surface cleaning and high-tech products. It has the functions of easy installation, manipulation and automation. When connecting the power and opening the equipment, cleaning function can be carried out without chemical reagent, medium, dust, water. Handheld laser rust remover also can automatic focusing and surface cleaning. Not only that, handheld laser cleaner can clear surface resin, grease, dirt, stains, objects burning, coating, embroidered paint.
Performance:
Non-contact cleaning without damage to parts matrix
Handheld laser cleaner can remove rust without any chemical cleaning fluid
Pre-coating surface preparation / contaminant removal
Stable laser source, no maintenance
No consumables, environmental friendly
Hand-held type, automation and easy for operation
Parameter:
|
Model No. |
CY-MF100 |
|
Laser Power |
100W |
|
Laser Source |
Orion MOPA |
|
Laser Wavelength |
1055~1070 nm |
|
Line Width |
≤15nm |
|
Cleaning Ability |
1.8m²/hour |
|
Cleaning Speed |
1~1000mm/s |
|
Beam Quality |
<1.6m² |
|
Weight of Head |
2.5Kg |
|
Control Panel |
LED touch screen |
|
Language Option |
English/Chinese |
|
Power Supply |
220V/50Hz (60Hz optional) |
|
Cooling System |
Air Cooling |
|
Machine Dimensions (L*W*H) |
Host Machine: 650*500*60mm Cleaning Head: 390mm |
|
Applicable Materials |
Stainless steel, Iron, Galvanized sheet, carbon steel, Aluminium etc. |
|
Working Temperature |
5~40° |
Picture:
Despatch port:
Shanghai/Guangzhou
Shipping method:
Seaway shipping is recommended
Packing:
Standard export plywood cases
Payment:
T/T 30% in advance and 70% before delivery
Warranty:
1 year overall warranty (Fault diagnosis and parts exchange for free)
- Lifelong maintenance and spare parts supply
- Free design of fixtures as customers required
- Free training for operation staffs
- Free Welding samples of customer provided
