Quick Details
-
Match power:
-
18-90hp
-
Bucket size:
-
300-600mm width
-
Max.Digging Depth:
-
1850mm-350mm
-
Max digging height:
-
2500mm-4300mm
-
COLOR:
-
Customized
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
3 point hitch backhoe
-
Engine:
-
Tractor PTO driven
-
Match power:
-
18-90hp
-
Bucket size:
-
300-600mm width
-
Max.Digging Depth:
-
1850mm-350mm
-
Max digging height:
-
2500mm-4300mm
-
COLOR:
-
Customized
3 point hitch backhoe
3 point hitch backhoe specification
|
Model |
LW—6 |
LW—7 |
LW—8 |
LW—9 |
LW—10 |
LW—12 |
|
Fitting power |
16-35 hp |
25-75 hp |
45-85hp |
50-100hp |
70—125hp |
80-150hp |
|
Max. digging depth |
1850 mm |
2150 mm |
2640 mm |
2900 mm |
3000 mm |
3500 mm |
|
Digging depth Flat bottom |
1600 mm |
2000 mm |
2500 mm |
2760 mm |
2800 mm |
3350 mm |
|
Max. digging height |
2500 mm |
3400 mm |
3510 mm |
3900 mm |
4000 mm |
4300 mm |
|
Loading heigh |
1400 mm |
1760 mm |
2000 mm |
2362 mm |
2337 mm |
2700 mm |
|
Unloading heigh |
1733 mm |
1878 mm |
1952 mm |
2413 mm |
2540 mm |
2770 mm |
|
Max. digging radius |
2800 mm |
3360 mm |
3930 mm |
3977 mm |
3886 mm |
4300 mm |
|
Max. digging load |
1300 kg |
1200 kg |
1600 kg |
1900 kg |
2600 kg |
2700 kg |
|
Bucket rofation (°) |
160° |
160° |
160° |
150° |
150° |
172° |
|
Swing angle (°) |
140° |
140° |
140° |
160° |
160° |
180° |
|
Valve standard press |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
|
Bucket width |
300 mm |
400 mm |
450 mm |
480 mm |
500 mm |
550 mm |
|
Bucket volume |
0.03 m3 |
0.036 m3 |
0.048 m3 |
0.054 m3 |
0.06 m3 |
0.07 m3 |
|
Weight |
580 kg |
670 kg |
760 kg |
820 kg |
870 kg |
960 kg |

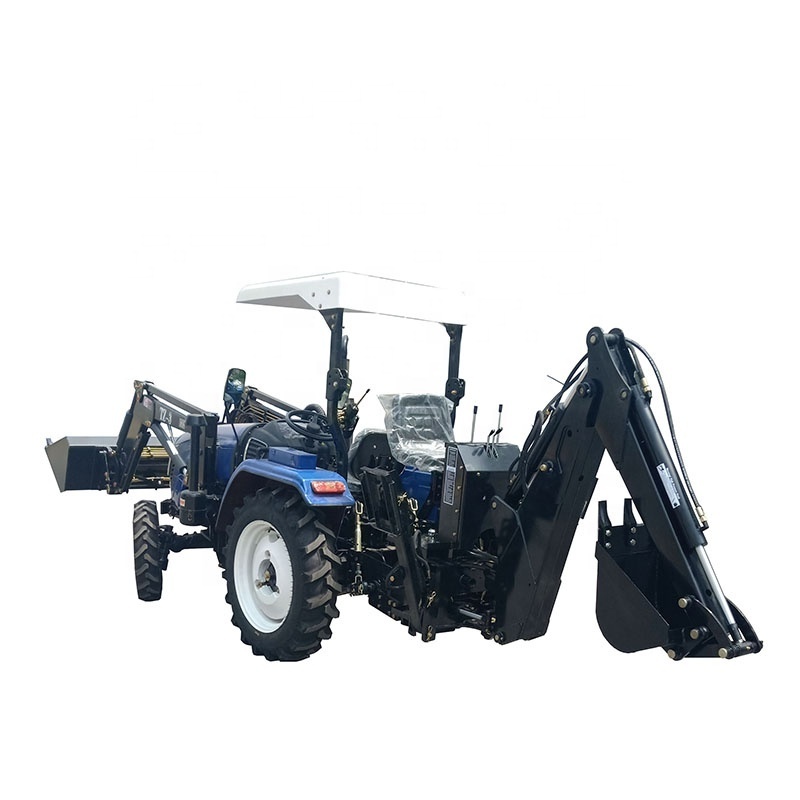

3 point hitch backhoe product show
3 point hitch backhoe details picture
3 point hitch backhoe packaging and shipping
we supply one year warranty with spare parts,video support,and online help
