- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Earthwork, Earthwork Apllication
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Boyuan
-
Model Number:
-
100-545
-
Product Name:
-
Geocell
-
Color:
-
Grey
-
Size:
-
5*6,customized
-
Specifications:
-
100-545
-
Material:
-
HDPE
-
Service:
-
24 Hours Online Service
-
Quality:
-
high-quality
-
Height:
-
100mm
-
Welding distance:
-
545mm
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, Cross Categories Consolidation, Others
-
Application:
-
Earthwork, Earthwork Apllication
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Boyuan
-
Model Number:
-
100-545
-
Product Name:
-
Geocell
-
Color:
-
Grey
-
Size:
-
5*6,customized
-
Specifications:
-
100-545
-
Material:
-
HDPE
-
Service:
-
24 Hours Online Service
-
Quality:
-
high-quality
-
Height:
-
100mm
-
Welding distance:
-
545mm
Product Description
|
Product Name
|
Geocell
|
|
Color
|
Yellow,Black,Green
|
|
Size
|
5.5*6,customized
|
|
Specifications
|
100-545
|
|
Material
|
HDPE
|
|
Application
|
Earthwork Apllication
|
|
Service
|
24 Hours Online Service
|
|
Quality
|
high-quality
|
Introduction
Geocell is a new geosynthetics.It is efficacious for reinforcing cohesionless wind-drift sand.It is three-dimensional, permeable, polymeric ( synthetic or natural) honeycomb or similar cellular structure, made of linked strips of geosynthetics. For the ill subgrade in use, concrete rammed cast-in-situ pile and concrete rammed cast-in-situ pile combined with geocell are swift and high-efficient methods, worth popularizing.The application results also show that, the effect of geocell structure is the best one followed by the three-dimensional net and the diamond wire net. The geocell reinforcement can reduce the settlement of the subgrade, but a size effect is existed.The total settlement is not affected by the thickness of geocell layer, but the horizontal displacement is affected distinctly by the thickness.The geocell flexible retaining wall is a new type of retaining structures for the slope protection; and it is widely used in highway engineering.

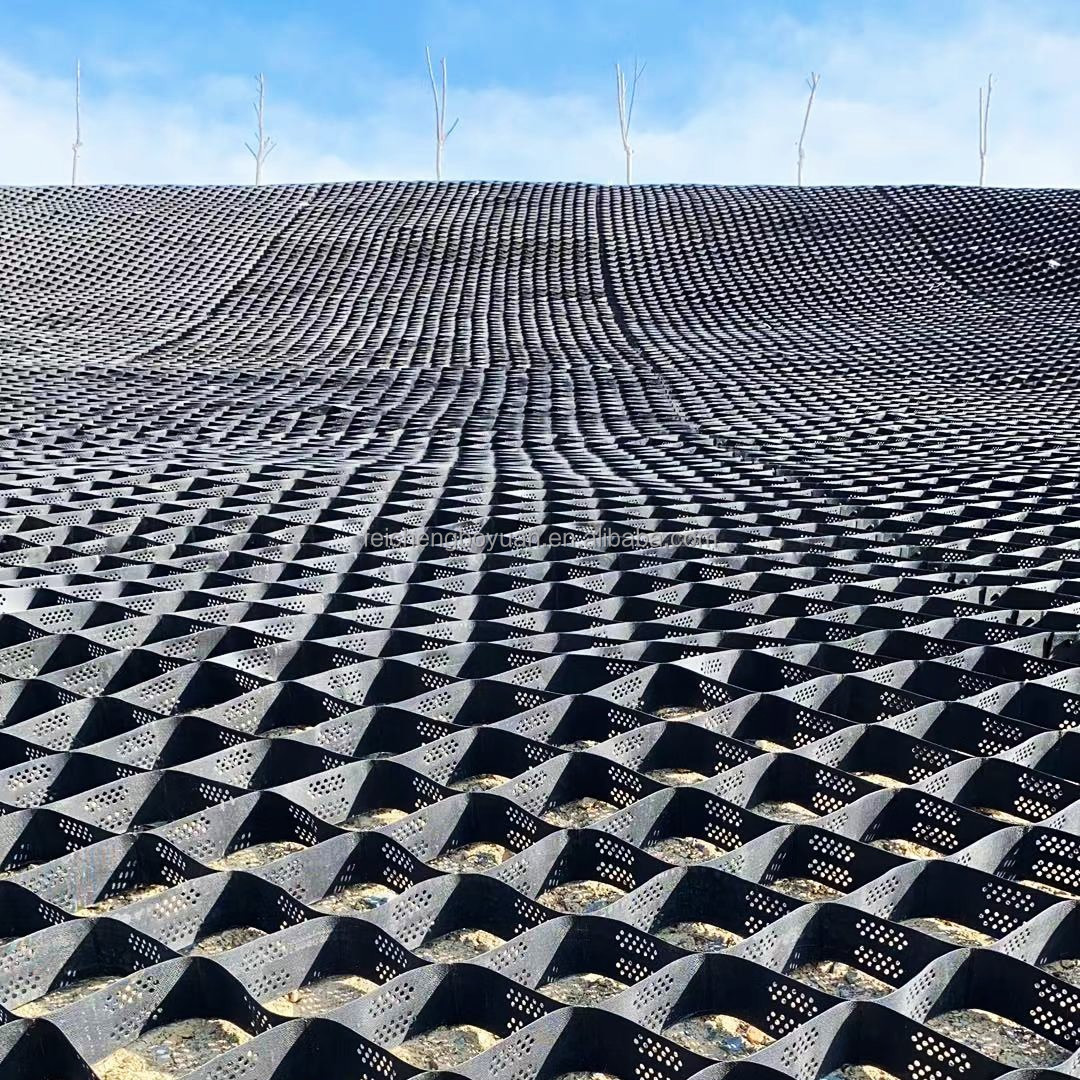

Slope Reinforcement
On slope applications, GeoCell can be filled with angular rock, concrete or with vegetated soil. The cells confine the infill
material, creating a stable layer protecting the slope from erosion. GeoCell is a flexible system that will contour to the
subgrade of a slope, reducing preparation time. When filled with vegetated soil or rock, the system is permeable - reducing water runoff.
Channel Protection
Subgrade Application
For the ill subgrade in use, concrete rammed cast-in-situ pile and concrete rammed cast-in-situ pile combined with geocell are
swift and high-efficient methods, worth popularizing.
swift and high-efficient methods, worth popularizing.
Retaining Wall application
The geocell flexible retaining wall is a new type of retaining structures for the slope protection; and it is widely used in highway engineering.
Characteristics
Economics
Less land acquisition, excellent structure, less labor and materials, compact and light, less transportation, short construction period, low labor and maintenance
Ecological and environmental benefits of low quality fillers available at low prices ecology 98% of the green area is covered by local vegetation Combination and matching are conducive to growth
Environment protection
Water soluble hazardous substances can be recycled and local filler
Reproducing natural landform and functions, preventing and controlling various environmental problems
Quick
Long, compact, light and labor-saving construction season
Simple construction, quick start, and fast continuous collaborative work
Excellent quality
High performance polymer composites with flexible and stable structure resist erosion and sedimentation
Systematization
New material+four-dimensional nest room standard
Special accessories+geosynthetics integrated application
Value service improves engineering performance
Less land acquisition, excellent structure, less labor and materials, compact and light, less transportation, short construction period, low labor and maintenance
Ecological and environmental benefits of low quality fillers available at low prices ecology 98% of the green area is covered by local vegetation Combination and matching are conducive to growth
Environment protection
Water soluble hazardous substances can be recycled and local filler
Reproducing natural landform and functions, preventing and controlling various environmental problems
Quick
Long, compact, light and labor-saving construction season
Simple construction, quick start, and fast continuous collaborative work
Excellent quality
High performance polymer composites with flexible and stable structure resist erosion and sedimentation
Systematization
New material+four-dimensional nest room standard
Special accessories+geosynthetics integrated application
Value service improves engineering performance
Product Parameters
|
Item
|
Property
|
|
Units
|
Value
|
|
Material
|
Polymer Density
|
|
g/cm3
|
0.94
|
|
|
|
Carbon Black Content
|
%
|
2.0
|
|
|
|
Oxidative Induction Time
|
Min
|
20
|
|
|
|
Low Temperature Brittleness
|
℃
|
≤-50
|
|
|
|
Vicat softening temperature
|
℃
|
≧112
|
|
|
|
Environment Stress Crack Resistance F50
|
hours
|
≧800
|
|
Strip Properties
|
Sheet Thickness
|
|
mm
|
1.1/1.2/1.5
|
|
|
|
Sheet Tensile Strength
|
Mpa
|
≧20
|
|
|
|
Sheet Surface
|
/
|
Smooth/Textured
Perforated/ Not perforated |
|
|
|
Color
|
/
|
Black/Yellow/Green
|
|
|
|
Cell Depth
|
mm
|
50/75/100/150/200/250
|
|
Seam Properties
|
Seam Peel Strength
|
|
N/10cm
|
≧1000
|
