Quick Details
-
Use:
-
Warehouse Rack, warehouse storage
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ESWIRES
-
Model Number:
-
ES01-40
-
Depth:
-
Customerization
-
Weight Capacity:
-
300-1200 kg
-
Width:
-
Customerization
-
Height:
-
Customerization
-
Dimensions:
-
1100x880 mm
-
Mesh size:
-
50x50/50x100/50x125 mm and Customer Size
-
Wire diameter:
-
4-6 mm or customized
-
Channel thickness:
-
1.2/ 1.5/ 1.8/ 2 mm
-
Finish:
-
Zinc/hot dip galvanized/powder coating
-
Advantages:
-
Flexibility, versatility
-
Waterfall:
-
Up-turned, flat flush, inside waterfull
-
Channel type:
-
Flared channel, U channel, inverted U channel
-
Beam:
-
Suitable for box beam or step beam
-
General Use:
-
Storage, Garage, Supermarket, Showroom, Exhibition et
Quick Details
-
Type:
-
Plate Type
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack, warehouse storage
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ESWIRES
-
Model Number:
-
ES01-40
-
Depth:
-
Customerization
-
Weight Capacity:
-
300-1200 kg
-
Width:
-
Customerization
-
Height:
-
Customerization
-
Dimensions:
-
1100x880 mm
-
Mesh size:
-
50x50/50x100/50x125 mm and Customer Size
-
Wire diameter:
-
4-6 mm or customized
-
Channel thickness:
-
1.2/ 1.5/ 1.8/ 2 mm
-
Finish:
-
Zinc/hot dip galvanized/powder coating
-
Advantages:
-
Flexibility, versatility
-
Waterfall:
-
Up-turned, flat flush, inside waterfull
-
Channel type:
-
Flared channel, U channel, inverted U channel
-
Beam:
-
Suitable for box beam or step beam
-
General Use:
-
Storage, Garage, Supermarket, Showroom, Exhibition et

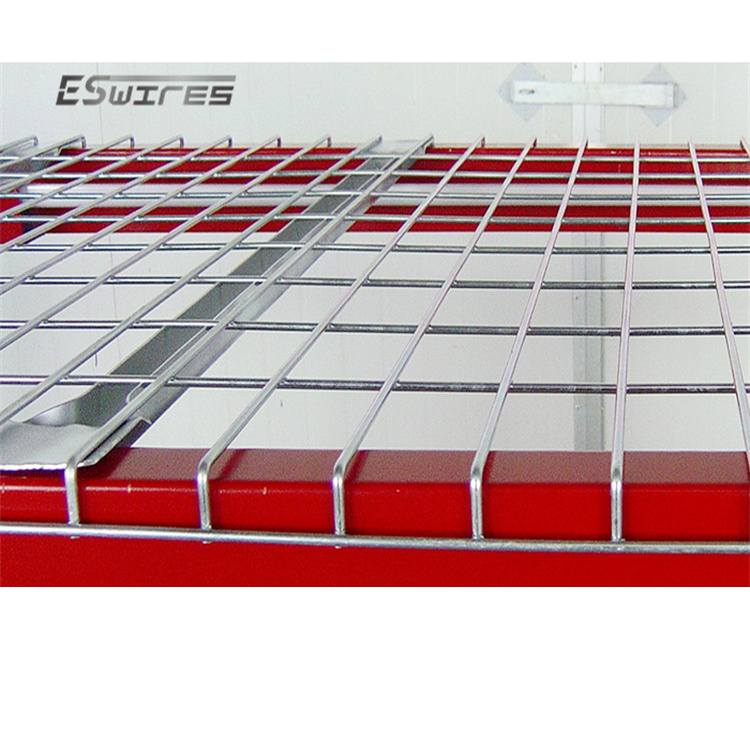

Warehouse equipment practical heavy duty pallet rack wire mesh decking for shelving
As a shelf offering an alternative to timber decking and solid steel panel solutions
Specifications of wire mesh decking for shelving
Wire decking is widely used in warehouses, as an accompaniment to the rack. The outside finish can be powder coated, galvanized, and also spray painted.
| Euro Sizes | |||
| A. Loading capacity 300kg | B. Loading capacity 500kg | C. Loading capacity 800kg | D. Loading capacity 1000kg |
| Mesh 50×150 mm | Mesh 50×125 mm | Mesh 50×100 mm | Mesh 50×100 mm |
| Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) |
| 800×880 | 1000×880 | 1000×880 | 900×1340 |
| 1100×880 | 1050×880 | 1050×880 | 1050×1340 |
| 600×880 | 1100×880 | 1100×880 | 1100×1340 |
| 1050×880 | 1000×1090 | 800×1340 | |
| American Sizes | ||
| Standard U-channel | Pallet Deck | |
| Dim (D×W) (inch) | Dim (D×W) (inch) | |
| 24"×46" | 42"×46" | 24"×46" |
| 30"×46" | 42"×52" | 36"×46" |
| 36"×34" | 42"×58" | 36"×52" |
| 36"×46" | 48"×34" | 42"×46" |
| 36"×52" | 48"×46" | 42"×52" |
| 36"×58" | 48"×52" | 44"×46" |
| 42"×34" | 48"×58" | 48"×46" |
Details of Wire Mesh Deck
--
Easy to install
, simply drops into place
-- Improves fire
safety
by enhancing the performance of your overhead sprinkler system
--
Protects
employees and products
-- Improves inventory visibility and brightens your facility
-- Self-cleaning &
maintenance-free
-- Gives you the flexibility to store cartons, drums, and multiple goods
Wire mesh decking for shelving is commonly used as a safety measure on selective pallet racks to prevent pallets or the products stored on them from falling through the rack structure.
It comes in various thicknesses and meshes dimensions. Wire mesh construction also allows for easy identification of shelf contents and prevents dirt and other debris from accumulating on the shelves because of the holes in the mesh.
Currently, our wire decking is widely exported to the US, UK, France & Australia .
Custom style is welcome. Contact us now to get a FREE sample for the test!
More accessories for warehouse shelves, such as wire shelf dividers, back panels, back mesh, flat mesh, etc.
Plastic or metal straps to fix the product and add paper to reduce friction.
