Quick Details
-
Brand Name:
-
lotuxs
-
Model Number:
-
Smart-S30B
-

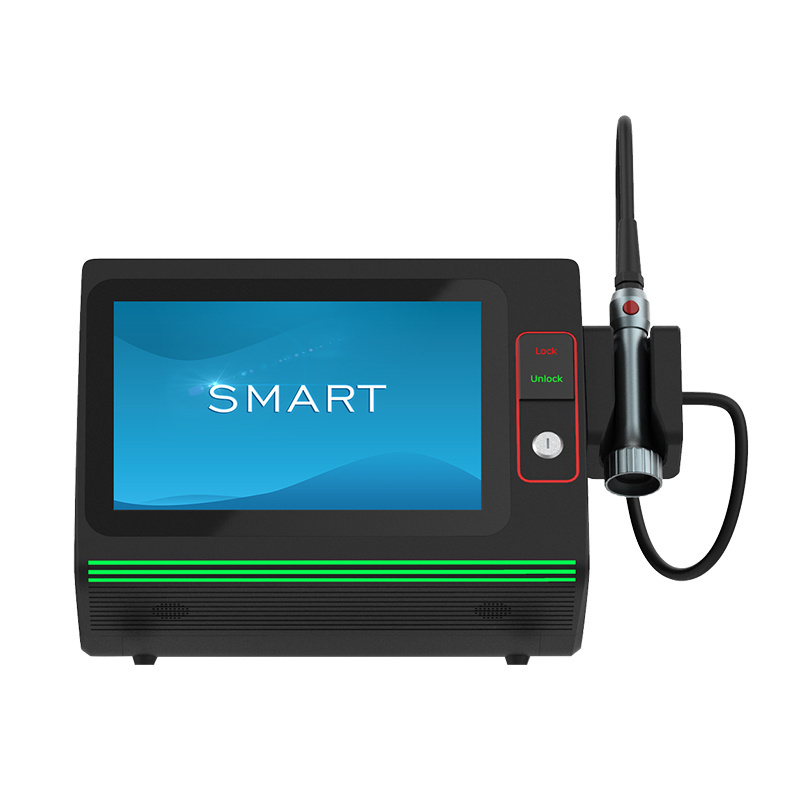

Product name:
-
30W Class 4 physical therapy for clinic
-
Light Source:
-
980nm,810nm diode laser
-
Function:
-
pain relief
-
Terminal Laser Output Power:
-
30W
-
OEM:
-
Yes
-
Net Weight:
-
9Kg
-
Size:
-
700mm*580mm*650mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
lotuxs
-
Model Number:
-
Smart-S30B
-
Product name:
-
30W Class 4 physical therapy for clinic
-
Light Source:
-
980nm,810nm diode laser
-
Function:
-
pain relief
-
Terminal Laser Output Power:
-
30W
-
OEM:
-
Yes
-
Net Weight:
-
9Kg
-
Size:
-
700mm*580mm*650mm
Why Choose Us
Specifications
|
Model
|
SMART-S30B
|
SMART-S45D
|
SMART-S60C
|
||
|
Max Power
|
30W
|
45W
|
60W
|
||
|
Wavelength
|
810nm(15w)+980nm(15w)
|
635nm(0.5w)+810nm(15w)+915nm(15w)+980nm(15w)
|
810nm(30w)+980nm(30w)
|
||
|
Laser Type
|
GaAlAs Diode Laser
|
|
|
||
|
Spot Size
|
Φ9mm&Φ10mm&Φ20mm
|
|
|
||
|
Working mode
|
CW /Single(Pulse) / Repeat /B
|
|
|
||
|
Pilot Beam
|
Red Diode Laser Of 635nm
|
|
|
||
|
Control Mode
|
12-inche true color touch screen
|
|
|
||
|
Power Supply
|
AC 100～240V，50/60Hz
|
|
|
||
|
Input Power
|
500W
|
|
|
||
|
Dimension
|
425mm*465mm*310mm
|
|
|
||
|
Weight
|
12kg
|
|
|
||
Product Description
-Smooth product lines, modern product appearance, showing the sense of technology and design, won the
iF DESIGN AWARD 2020
.
-
12-inch
large intelligent operation interface, easy to operate
-
CW
mode,
Pulse
mode,
Repeat
mode,
B
mode
-
635nm /810nm /915nm /980nm
4 treatment modes to choose from, 4 wavelengths to emit laser at the same time, each wavelength can be adjusted individually
Intelligent data management
Smart ice provides you a strong physical therapy system with multi modes, multi-wavelength, preset protocol, and patient management software. You can store all the patients' info and treatment records, even your treatment projects.
Multiple safety designs
Safety interlock, emergency stop switch, key switch and other safety designs
Optional thermal imaging
function
With the help of a thermal imager, doctors can quickly and accurately identify where a patient is injured or inflamed.
Detailed instructions for use
Detailed instructions for use
We provide detailed video tutorials and user manual, which can be easily operated by even
non-professional doctors.
Intelligent product customization services
non-professional doctors.
Intelligent product customization services
Customize power:
30W-60W
Customize wavelength:
635nm/810nm/915nm/980nm/1064nm
Customize optional function:
thermal imaging、
language、animal version program
Custom optional accessories:
trolley, treatment head holder
10mm standard handle:
can be used directly, or can be connected to the lens components.
10mm
spherical lens cone:
The spherical lens make the light uniform and the treatment more efficient, suitable for large treatment areas.
20mm light spots lens cone:
Large spot size, quick results, suitable for fixed-point treatment of trauma, wound and bleeding sites.
9mm lens components:
Small spot size, precise treatment, suitable for small areas such as hands and feet.
120mm large diameter
lens components
：It is more efficient for treating large areas such as the back
Application
Smart ICE with high power and short treatment time
Penetrate into human tissues deeply for relieving body and nerve pain
Sports Injuries
It can repair muscles, ligaments, soft or hard tissues and even bones in the body
Neurological Rehabilitation
Continuous energy is provided for effective penetration into deeper tissues
Continuous energy is provided for effective penetration into deeper tissues
Bone Diseases
Effective in reducing pain and inflammation and promoting tissue healing
Non-invasive
Non-toxic
No known adverse effects
No drug interactions Often make surgical interventions unnecessary
Provide a treatment alternative for patients that have not responded to other therapy
Treatment Theory
Photobioregulatory Therapy
The clinical principle of Smart physical laser therapy equipment using photobiological regulation The central goal of laser therapy is to stimulate the cell to perform its natural functions. The Smart focuses on the convergence and integration of laser technologies for chronic spinal pain, neuropathies, sports injuries, sprains/strains, and other chiropractic applications.
Smart Laser Therapy is a non-invasive, safe and effective treatment modality where light is used to relieve pain, reduce inflammation and promote wound healing and soft tissue repair. Our laser is with single-wave, multi-wave system, and power from 10W to 60W for different market needs. This means deeper penetration with no heat produced and allowing faster healing with no side effects.
The clinical principle of Smart physical laser therapy equipment using photobiological regulation The central goal of laser therapy is to stimulate the cell to perform its natural functions. The Smart focuses on the convergence and integration of laser technologies for chronic spinal pain, neuropathies, sports injuries, sprains/strains, and other chiropractic applications.
Smart Laser Therapy is a non-invasive, safe and effective treatment modality where light is used to relieve pain, reduce inflammation and promote wound healing and soft tissue repair. Our laser is with single-wave, multi-wave system, and power from 10W to 60W for different market needs. This means deeper penetration with no heat produced and allowing faster healing with no side effects.
