Quick Details
-
Production Capacity:
-
2.5-3 sqm/h for midium hard granite
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
WANLONG
-
Voltage:
-
380V/50Hz, etc
-
Dimension(L*W*H):
-
6000*2900*3300mm
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Product name:
-
Single Blade Stone Cutting Machine
-
Function:
-
Cutting Granite
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Control system:
-
PLC(imported Brand)
-
Feature:
-
High Cutting Efficiency
-
Blade diameter:
-
1600/1800
-
Max Cutting Length:
-
3000mm
-
Control method:
-
Touch Screen DXF
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
22kw
-
Cutting thickness (max):
-
750mm
-
Production Capacity:
-
2.5-3 sqm/h for midium hard granite
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
WANLONG
-
Voltage:
-
380V/50Hz, etc
-
Dimension(L*W*H):
-
6000*2900*3300mm
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Product name:
-
Single Blade Stone Cutting Machine
-
Function:
-
Cutting Granite
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Control system:
-
PLC(imported Brand)
-
Feature:
-
High Cutting Efficiency
-
Blade diameter:
-
1600/1800
-
Max Cutting Length:
-
3000mm
-
Control method:
-
Touch Screen DXF

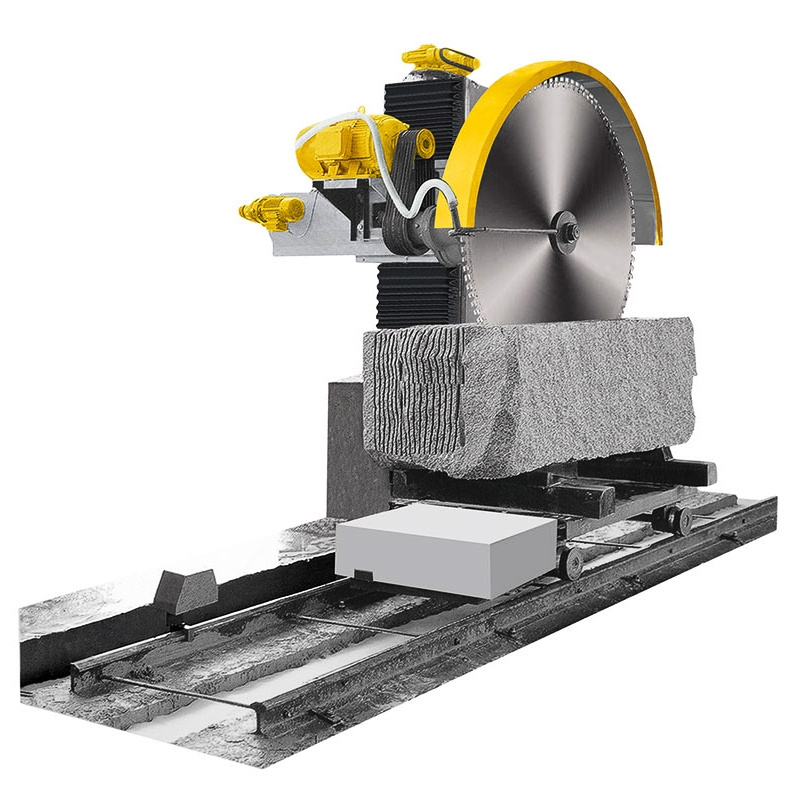

QZQ-1600 Single Column Auto Cutting Machine:
This machine combines advantages of several types of stone cutting machines. Single column supporting structure, and two-stage variable speed gear for headstock to make cutting more smoothly. Its main advantages are cutting automatically according to pre-set cutting depth and slicing thickness, low energy comsuption, high cutting efficiency, easy operation and maintenance.
Technical Parameters
|
Model |
Unit |
QZQ-1600 |
QZQ-1800 |
|
Max. diameter of blade |
mm |
φ1600 |
φ1800 |
|
Max. No. of blades |
pcs |
2 |
1
|
|
Recommended Blade Combination |
mm |
φ1600 + φ900 |
φ1800
|
|
Main motor power |
kw |
22 |
22 |
|
General power |
kw |
25.15 |
25.15 |
|
Max. processing sizes (L x W x H) |
mm |
3000 x 1200 x 650 |
3000 x 1200 x 750 |
|
Max. lifting stroke |
mm |
900 |
900 |
|
Overall dimensions (L x W x H) |
mm |
2300 x 1200 x 2200 |
2300 x 1200 x 2200 |
|
Water consumption |
m³/h |
6 |
6 |
|
Total weight |
kg |
4000 |
4000 |
