Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TD
-
Dimension(L*W*H):
-
48.5*54*95cm
-
Weight:
-
75 KG
-
Product name:
-
Food Vacuum Sealer
-
Function:
-
Vacuum Seal Food Packing Machine
-
Chamber type:
-
Single
-
Advantage:
-
High Efficiency
-
Product Keywords:
-
Double Vacuum Sealing
-
Other name:
-
Household Vacuum Packer
-
Keyword:
-
Vacum Food Packs
-
Usage:
-
Food Vacuum Package
-
Packing machine:
-
Meat Vacuum Packing Equipmet
-
Material:
-
304 Stainless Steel
Quick Details
-
Packaging Type:
-
Cartons, Bags, Film
-
Packaging Material:
-
Plastic, Paper
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TD
-
Dimension(L*W*H):
-
48.5*54*95cm
-
Weight:
-
75 KG
-
Product name:
-
Food Vacuum Sealer
-
Function:
-
Vacuum Seal Food Packing Machine
-
Chamber type:
-
Single
-
Advantage:
-
High Efficiency
-
Product Keywords:
-
Double Vacuum Sealing
-
Other name:
-
Household Vacuum Packer
-
Keyword:
-
Vacum Food Packs
-
Usage:
-
Food Vacuum Package
-
Packing machine:
-
Meat Vacuum Packing Equipmet
-
Material:
-
304 Stainless Steel
Products Description

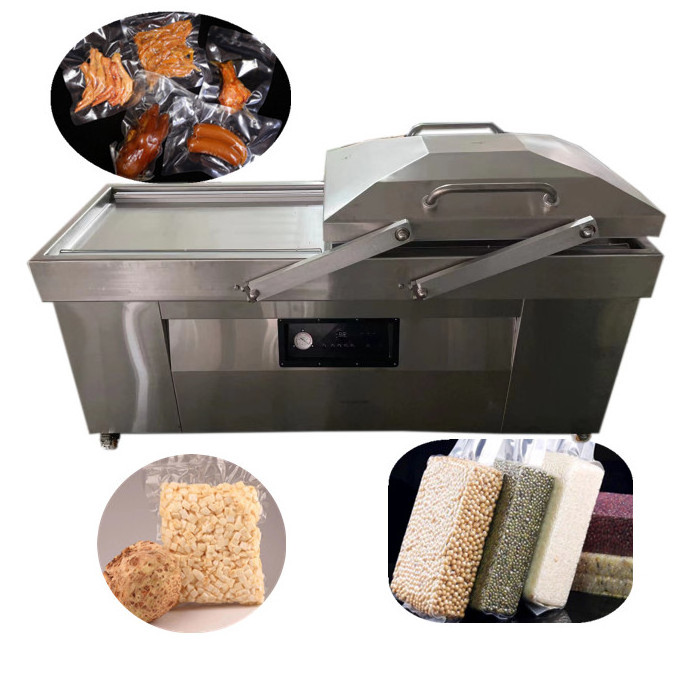

Ce Certified Industrial vertical dry fish meat sealer automatic vacuum packing machine for food
Main Features
1.Material of Main Structure: 304 stainless steel.
2.Electrical requirement and plug could be custom according to customer requirement.
3.The products can be prevented from oxidation, going mould,insects or getting damp, thus can be kept fresh for longer time.
4.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, cooling and exhaust automatically.
5.Lid Gasket: The vacuum chamber lid gasket made ofhigh-density material guarantees the sealing performance of the machine in
routine work.
The series of vacuum packing machines is featured automatic processing of vacuuming, sealing, cooling, which is used in vacuum
packing of food, pharmaceutical aquatic, chemical and electronices industries. It can prevent the products from oxidization and
mildew, as well as corrosion and moisture, keeping the quality and freshness and prolonging the storage time.
Detailed description of the method of operation
1. Plug in the power (110V or 220V)
2. Turn on the power button
3. Adjust the pumping time (about 30 seconds)
4. Adjust the sealing time (about 2 seconds)
5. Adjust the cooling time (about 3 seconds)
6. Installed items, placed inside the bag sealed
7. Press the top cover to operate the vacuum gauge back to zero to complete the work.
1.Material of Main Structure: 304 stainless steel.
2.Electrical requirement and plug could be custom according to customer requirement.
3.The products can be prevented from oxidation, going mould,insects or getting damp, thus can be kept fresh for longer time.
4.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, cooling and exhaust automatically.
5.Lid Gasket: The vacuum chamber lid gasket made ofhigh-density material guarantees the sealing performance of the machine in
routine work.
The series of vacuum packing machines is featured automatic processing of vacuuming, sealing, cooling, which is used in vacuum
packing of food, pharmaceutical aquatic, chemical and electronices industries. It can prevent the products from oxidization and
mildew, as well as corrosion and moisture, keeping the quality and freshness and prolonging the storage time.
Detailed description of the method of operation
1. Plug in the power (110V or 220V)
2. Turn on the power button
3. Adjust the pumping time (about 30 seconds)
4. Adjust the sealing time (about 2 seconds)
5. Adjust the cooling time (about 3 seconds)
6. Installed items, placed inside the bag sealed
7. Press the top cover to operate the vacuum gauge back to zero to complete the work.
Technical Parameters
|
Modle
|
ZYZK-400
|
|
Voltage
|
220V/50Hz
|
|
Power of pump
|
0.9kw
|
|
Heat-sealing power
|
0.5kw
|
|
Lowest absolute pressure
|
0.1Pa
|
|
Olume of vacuum case
|
425x420x100mm
|
|
Sealing strip size
|
400x10mm
|
|
Number of heater
|
2
|
|
Exhaustment of vacuum pump
|
20m³/h
|
|
Material of vacuum case and hull
|
304 SS
|
|
Dimension
|
485X540X950mm
|
|
Weight
|
75kg
|
|
Modle
|
DZ-240
|
|
Power of pump
|
0.18kw
|
|
Heat-sealing power
|
0.3kw
|
|
Lowest absolute pressure
|
0.1Pa
|
|
Olume of vacuum case
|
320X250X50mm
|
|
Sealing strip size
|
240x10mm
|
|
Number of heater
|
1
|
|
Exhaustment of vacuum pump
|
8m³/h
|
|
Material of vacuum case and hull
|
304 SS
|
|
Dimension
|
470X325X275mm
|
|
Weight
|
30kg
|
|
Modle
|
DZ-300
|
|
Power of pump
|
0.18kw
|
|
Voltage
|
220V/50Hz
|
|
Heat-sealing power
|
0.4kw
|
|
Lowest absolute pressure
|
0.1Pa
|
|
Olume of vacuum case
|
390X325X100mm
|
|
Sealing strip size
|
300x10mm
|
|
Number of heater
|
1
|
|
Exhaustment of vacuum pump
|
8m³/h
|
|
Material of vacuum case and hull
|
304 SS
|
|
Dimension
|
485X385X370mm
|
|
Weight
|
45kg
|
|
Modle
|
DZ-400/2H
|
|
Voltage
|
220V/50Hz
|
|
Power of pump
|
0.9kw
|
|
Heat-sealing power
|
0.6kw
|
|
Lowest absolute pressure
|
0.1Pa
|
|
Olume of vacuum case
|
420X440X130mm
|
|
Sealing strip size
|
400x10mm
|
|
Number of heater
|
2
|
|
Exhaustment of vacuum pump
|
20m³/h
|
|
Material of vacuum case and hull
|
304 SS
|
|
Dimension
|
540x490x960mm
|
|
Weight
|
70kg
|
|
Modle
|
DZ-600/2H
|
|
Voltage
|
220V/50Hz
|
|
Power of pump
|
1.5kw
|
|
Heat-sealing power
|
1.17kw
|
|
Lowest absolute pressure
|
0.1Pa
|
|
Olume of vacuum case
|
628x620x160mm
|
|
Sealing strip size
|
600x10mm
|
|
Number of heater
|
2
|
|
Exhaustment of vacuum pump
|
40m³/h
|
|
Material of vacuum case and hull
|
304 SS
|
|
Dimension
|
760x690x960mm
|
|
Weight
|
100kg
|
|
Modle
|
DZ-400/2SD
|
|
Voltage
|
380V/50Hz
|
|
Power of pump
|
0.9kw
|
|
Heat-sealing power
|
0.6kw
|
|
Lowest absolute pressure
|
0.1Pa
|
|
Olume of vacuum case
|
500x430x160mm
|
|
Sealing strip size
|
400x10mm
|
|
Number of heater
|
2
|
|
Exhaustment of vacuum pump
|
20m³/h
|
|
Material of vacuum case and hull
|
304 SS
|
|
Dimension
|
1120x498x960mm
|
|
Weight
|
100kg
|
|
Modle
|
DZ-600/2SE
|
|
Voltage
|
380V/50Hz
|
|
Power of pump
|
2.5kw
|
|
Heat-sealing power
|
1.17kw
|
|
Lowest absolute pressure
|
0.1Pa
|
|
Olume of vacuum case
|
660X530X130mm
|
|
Sealing strip size
|
600x10mm
|
|
Number of heater
|
2
|
|
Exhaustment of vacuum pump
|
63m³/h
|
|
Material of vacuum case and hull
|
304 SS
|
|
Dimension
|
1460x610x770mm
|
|
Weight
|
180kg
|
|
Modle
|
DZ-800/2SC
|
|
Voltage
|
380V/50Hz
|
|
Power of pump
|
2.5kw
|
|
Heat-sealing power
|
1.17kw
|
|
Lowest absolute pressure
|
0.1Pa
|
|
Olume of vacuum case
|
880x705x160mm
|
|
Sealing strip size
|
800x10mm
|
|
Exhaustment of vacuum pump
|
63m³/h
|
|
Dimension
|
1900X730X960mm
|
|
Weight
|
300kg
|
