Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TY
-
Voltage:
-
380V 50hz three-phase
-
Dimension(L*W*H):
-
according to your equirement
-
Weight:
-
5500 kg
-
Warranty:
-
1year
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Roof Sheet Forming Machine
-
Main frame:
-
350H Steel
-
control system:
-
PLC(detla) System
-
Cutting type:
-
Automatic Hydraulic Cutting
-
Raw material:
-
PPGI PPGL GI GL
-
Motor brand:
-
China Famous Brand
-
Roller material:
-
Cr 12
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Plc:
-
DETLA
-
Shaft material:
-
45# Steel Outer Diameter: 80mm
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TY
-
Voltage:
-
380V 50hz three-phase
-
Dimension(L*W*H):
-
according to your equirement
-
Weight:
-
5500 kg
-
Warranty:
-
1year
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Roof Sheet Forming Machine
-
Main frame:
-
350H Steel
-
control system:
-
PLC(detla) System
-
Cutting type:
-
Automatic Hydraulic Cutting
-
Raw material:
-
PPGI PPGL GI GL
-
Motor brand:
-
China Famous Brand
-
Roller material:
-
Cr 12
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Plc:
-
DETLA
-
Shaft material:
-
45# Steel Outer Diameter: 80mm

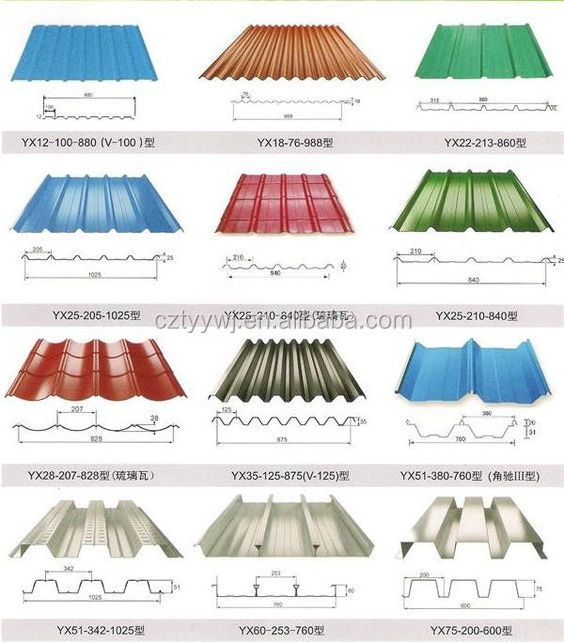

one machine multiple models · can meet your various needs
Roll Forming Machine Process
Uncoiling --- Material Feeding --- Roll Forming --- Step Making --- Automatic Cutting --- Products Receiving
Uncoiling --- Material Feeding --- Roll Forming --- Step Making --- Automatic Cutting --- Products Receiving
Machine parameters
|
Tile making machine Setting Parameters
|
|
|
|
1.Weight capacity of decoiler
|
5T
|
|
|
2.Appearance Size(L*W*H)
|
6500*1500*1200
|
|
|
3.Raw material /feeding sheet material
|
colored steel & galvanized steel
|
|
|
4.Roller material
|
45# high grade steel
|
|
|
5.Shaft material
|
45# high grade steel
|
|
|
6.Kind of drive
|
chain drive
|
|
|
7.Cutting system
|
automatic hydyaulic cutting
|
|
|
8.Cutting blade material
|
Cr 12 high grade steel
|
|
|
9.Frame material
|
300 H-high grade steel
|
|
|
10. Control system
|
totally automatic PLC control system
|
|
|
11.Main power
|
3.5 kw
|
|
|
12.Roller stations
|
13 rows
|
|
|
13.Speed of production
|
8-12m/min
|
|
|
14.Thickness of colored steel
|
0.2-0.8mm
|
|
|
15.Frame material
|
300 H-steel
|
|
Products Description
Trapezoidal sheet roll forming machine
Trapezoidal sheet roll forming machine popular sell in many countries,
Coil width before rolling is 1200mm /1220mm / 1250mm.
After rolling product width is 1000mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm. Machine details is like up type:
Corrugated roof sheet roll forming machine
Glazed tile roll forming machine
More design and machine videos - consult us
