Quick Details
-
Max. Work Height:
-
>=65m
-
Size:
-
10075*2500*3650
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
SINOTRUK
-
Product Name:
-

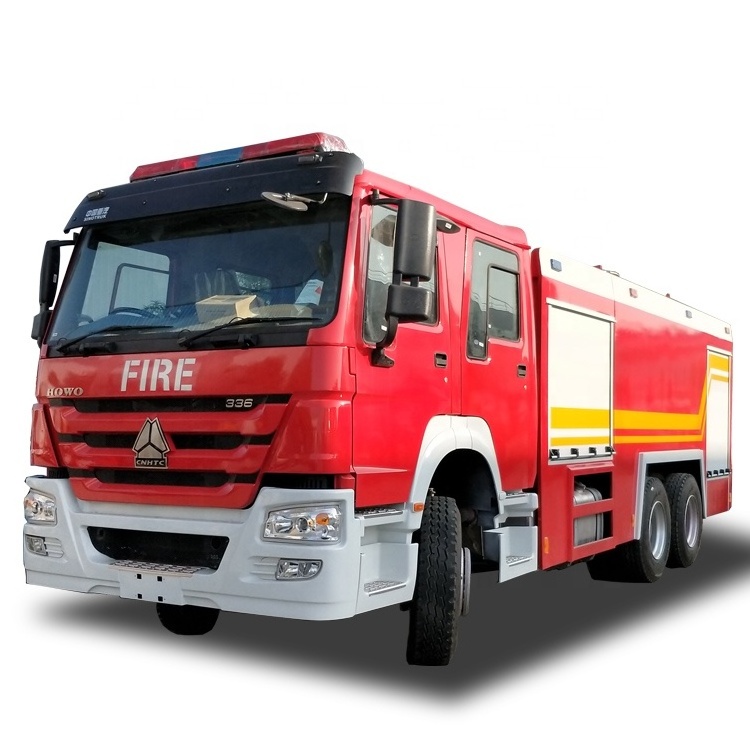

fire fighting truck
-
Color:
-
Red
-
Chassis brand:
-
SINOTRUK
-
Drive type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Fire pump:
-
CB10/60
-
Extinguishant:
-
foam and water
-
Engine type:
-
D10.31-50
-
Chassis model:
-
ZZ5207N4617E5
-
Name:
-
water and foam fire truck
-
Wheelbase:
-
4600+1350mm
Quick Details
-
Drive Wheel:
-
6x4
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Max. Work Height:
-
>=65m
-
Size:
-
10075*2500*3650
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
SINOTRUK
-
Product Name:
-
fire fighting truck
-
Color:
-
Red
-
Chassis brand:
-
SINOTRUK
-
Drive type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Fire pump:
-
CB10/60
-
Extinguishant:
-
foam and water
-
Engine type:
-
D10.31-50
-
Chassis model:
-
ZZ5207N4617E5
-
Name:
-
water and foam fire truck
-
Wheelbase:
-
4600+1350mm
1.Chassis
| Chassis model | ZZ5207N4617E5 |
| Drive Type | 6x4 |
| Whelbase | 460+1350mm |
| Top Speed | 95km/h |
| Engine Type | D10.31-50 (GB17691-2005,GB3847-2005)(diesel)(Euro 5) |
| Power | 276kw |
2.Driving room
| Size(L*w*H) | 10075*2500*3650 |
| Structure | Flat head, four door double row cab |
| Seat set | 3+3(three people in the front row (including the driver) and three in the back) |
| Equipment | In addition to the original vehicle equipment, it is equipped with 100W alarm, rotary warning light switch, lever control switch and indicator light |
3.Volume of tank
| Volume | water:14000L,foam:2000L |
| Material | High quality carbon steel plate |
| Structure | Steel plate welded type, internal anti - swash plate |
| Equipment |
2 population hole, with a quick locking and opening device
2 overflow device 2 level indicator 2 outlet, manual control valve |
| Technical requirements | Comply with the relevant provisions of GA39 |
4.Fire pump
| Model | CB10/60 |
| Flow | 60L/s |
| pressure | 1.0Mpa |
| Water diversion time | ≤50s |
| Type of installation | rear-mounted |
5.fire monitor
| Model | PL48 |
| Flow | 48L/s |
| Range | range of water more than 65m,range of foam more than 55m. |
| pressure | 1.0Mpa |
| Turning Angle | The level is greater than 270 degrees, and the pitch is -15 to 45 degrees. |
