Quick Details
-
Model Number:
-
12V100
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
Weight:
-
13kg
-
The charging ratio:
-
1C
-
The discharge rate:
-
0.5C
-
Warranty:
-
3months-1year, 3years
-
Type:
-
Li-Ion
-
battery size:
-
335x175x235mm
-
Continuous discharge current:
-
120A
-
Overcharge cut-off voltage::
-
14.6V
-
Over discharge voltage::
-
10V
-
keyword:
-
lithium ion batteries 12v 200ah solar battery
Quick Details
-
Anode Material:
-
Other
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
-
Brand Name:
-
HongDongLi
-
Model Number:
-
12V100
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
Weight:
-
13kg
-
The charging ratio:
-
1C
-
The discharge rate:
-
0.5C
-
Warranty:
-
3months-1year, 3years
-
Type:
-
Li-Ion
-
battery size:
-
335x175x235mm
-
Continuous discharge current:
-
120A
-
Overcharge cut-off voltage::
-
14.6V
-
Over discharge voltage::
-
10V
-
keyword:
-
lithium ion batteries 12v 200ah solar battery

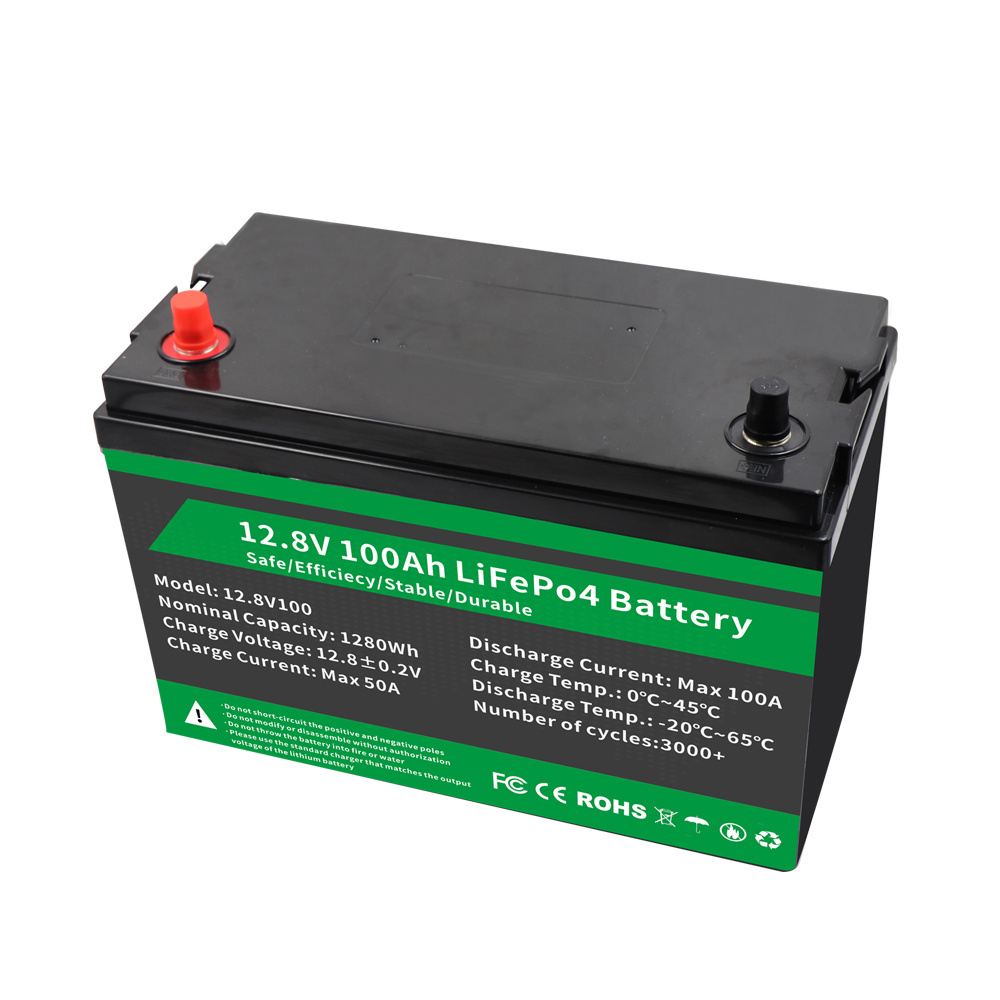

Specification
|
Nominal voltage
|
12.8v
|
|
Nominal capacity
|
100ah
|
|
Energy storage
|
1280wh
|
|
Battery type
|
grade A 3.2VLifePO4 Prismatic Lithium iron phosphate battery cell 4S1P
|
|
Charge Voltage
|
14.6V±0.2V
|
|
Discharge Cut-off Voltage
|
10V
|
|
Max charging current (A)
|
50A(0.5C)
|
|
BMS function
|
Overcharge, overdischarge, overcurrent, short circuit, etc.
|
|
Continuous discharge current
|
120A
|
|
Peak current
|
240A (<3s)
|
|
Charging temperature
|
0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity
|
|
Discharge temperature
|
-20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
|
|
Storage Temperature
|
-20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity
|
|
Life cycle
|
It is 2000 times at 85% dose, 5000 times at 65% dose, and 8000 times at 40% dose.
|
|
Net weight
|
13kg
|
|
Battery display
|
Display voltage/remaining power
|
|
Battery size
|
335x175x235mm
|
|
Case material
|
ABS IP65
|
|
Terminal Type
|
M8 terminals
|
|
Warranty
|
5 years
|
|
Life cycle
|
Deep cycle life 4000 times, life span is more than 10 years
|
|
keyword
|
lithium ion batteries 12v 200ah solar battery
|
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check the quality.
Q2. What about the delivery time?
A.Sample needs 3 days, mass production time needs 5-7 weeks, it depends on the order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on different part numbers. 1~10pcs sample order is available. Low MOQ, 1 piece for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping are also optional.
Q5. How to process an order?
A. Let us know your requirements or applications first. Secondly, we quote according to your requirements or our suggestions. Thirdly, the customer confirms the samples and pays a deposit for the formal order. Fourth, we arrange production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design based on our samples first.
Q7. What certificates do you have?
Q7. What certificates do you have?
A: We have CE/FCC/ROHS/UN38.3/MSDS...etc.
Q8. How about the warranty?
A: 3 years warranty
