Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Wall-mounted
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BAYKEE
-
Model Number:
-
10kW system
-
Output Voltage (V):
-
380V, 220VAC
-
Output Frequency:
-
50/60Hz
-
Work Time (h):
-
24 Hours
-
Product name:
-

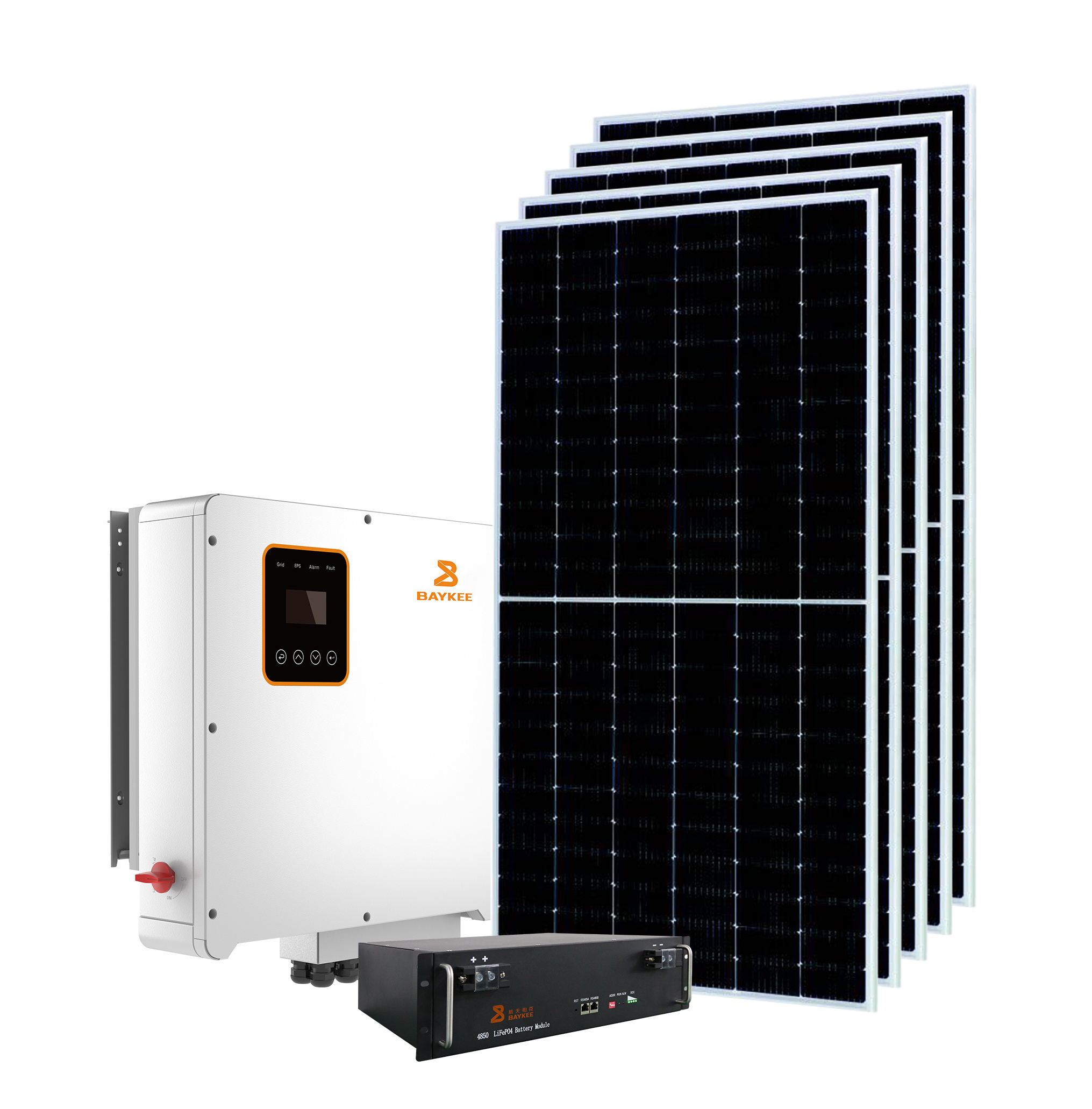

Solar with lifepo4 three Phase Hybrid 8KW 10kW solar system
-
Type:
-
Three Phase
-
Wave:
-
Pure sine wave
-
Solar controller:
-
built-in MPPT controller
-
Controller:
-
MPPT Solar Charge Controller
-
Function:
-
Provide Power
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Wall-mounted
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BAYKEE
-
Model Number:
-
10kW system
-
Output Voltage (V):
-
380V, 220VAC
-
Output Frequency:
-
50/60Hz
-
Work Time (h):
-
24 Hours
-
Product name:
-
Solar with lifepo4 three Phase Hybrid 8KW 10kW solar system
-
Type:
-
Three Phase
-
Wave:
-
Pure sine wave
-
Solar controller:
-
built-in MPPT controller
-
Controller:
-
MPPT Solar Charge Controller
-
Function:
-
Provide Power
You may also like
Product Description
BAYKEE Residential Energy Storage Inverters
Three phase ESS hybrid inverter
Technical Features:
Safe & reliable
*Passed IEC/EN 62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-1/-6-3, European grid connection: EN50549-1, German grid connection: VDE4105/0124 , UK grid connection: G99, South Africa: NRS097-2-1:2017 test certification;
Friendly & flexible
* Support diesel generator access;
* Support full power discharge, automatic management of battery charge and discharge;
Economical &practical
* It is more economical to support multiple operating modes;
* Can be as a UPS for the important loads when power off;
*Passed IEC/EN 62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-1/-6-3, European grid connection: EN50549-1, German grid connection: VDE4105/0124 , UK grid connection: G99, South Africa: NRS097-2-1:2017 test certification;
Friendly & flexible
* Support diesel generator access;
* Support full power discharge, automatic management of battery charge and discharge;
Economical &practical
* It is more economical to support multiple operating modes;
* Can be as a UPS for the important loads when power off;
Specification
|
Technical specification
|
R8KH3
|
R10KH3
|
R12KH3
|
|||
|
Input(PV)
|
|
|
|
|||
|
Max.power(kW)
|
12
|
15
|
18
|
|||
|
Max.DC voltage(V)
|
1,000
|
|
|
|||
|
MPPT voltage range(V)
|
180-850
|
|
|
|||
|
Max.input current of single MPPT(A)
|
13
|
|
|
|||
|
MPPT tracker/strings
|
2/1
|
2/1
|
2/1
|
|||
|
AC output
|
|
|
|
|||
|
Rated output power(kVA)
|
8
|
10
|
12
|
|||
|
Max.output current(A)
|
12.7
|
15.9
|
19.1
|
|||
|
Grid voltage/range(V)
|
400/360-440
|
|
|
|||
|
Frequency(Hz)
|
50/60
|
|
|
|||
|
Power factor
|
0.81agging-0.81eading
|
|
|
|||
|
THDi
|
<3%
|
|
|
|||
|
AC output topology
|
3W+N+PE
|
|
|
|||
|
Battery
|
|
|
|
|||
|
Battery voltage range(V)
|
125-600
|
|
|
|||
|
Max. charging voltage(V)
|
600
|
|
|
|||
|
Full battery voltage(V)
|
250
|
300
|
350
|
|||
|
Rated charge/discharge current(A)
|
40
|
40
|
40
|
|||
|
Battery type
|
lithium/Lead-acid
|
|
|
|||
|
Communication Interface
|
CAN/RS485
|
|
|
|||
|
EPS output
|
|
|
|
|||
|
Rated power(kVA)
|
8.8
|
11
|
13.2
|
|||
|
Rated output voltage(V)
|
400
|
|
|
|||
|
Max.output current(A)
|
12.7
|
15.9
|
19.1
|
|||
|
Rated frequency(Hz)
|
50/60
|
|
|
|||
|
Automatic switching time(ms)
|
<20
|
|
|
|||
|
THDu
|
<2%
|
|
|
|||
|
Overload capacity
|
110%,30S/120%,10S/150%,0.02S
|
|
|
|||
|
General data
|
|
|
|
|||
|
Battery charge /discharge efficiency
|
96.60%
|
96.70%
|
96.80%
|
|||
|
DC Max.efficiency
|
97.90%
|
98.20%
|
98.20%
|
|||
|
Europe efficiency
|
97.20%
|
97.50%
|
97.50%
|
|||
|
MPPT efficiency
|
99.50%
|
99.50%
|
99.50%
|
|||
|
Ingress protection
|
IP65
|
|
|
|||
|
Noise emission(dB)
|
<35
|
|
|
|||
|
Operation temperature
|
-25℃-60℃
|
|
|
|||
|
Cooling
|
Natural
|
|
|
|||
|
Relative Humidity
|
0-95%(non-condensing)
|
|
|
|||
|
Altitude
|
2000m(>2000 Derating)
|
|
|
|||
|
Dimensions W*D*H(mm)
|
530*200*600
|
|
|
|||
|
Weight(kg)
|
29
|
|
|
|||
|
Isolation transformer
|
No
|
|
|
|||
|
Self-consumption(W)
|
<3
|
|
|
|||
|
Display and communication
|
|
|
|
|||
|
Display
|
LCD
|
|
|
|||
|
lnterface:RS485/Wifi/4G/CAN/DRM
|
Yes/Opt/Opt/Yes/Yes
|
|
|
|||
|
Safety standard
|
IEC/EN62109-1/-2, IEC/EN62477-1
|
|
|
|||
|
EMC
|
IEC/EN61000-6-1, IEC/EN62000-6-3
|
|
|
|||
|
On-grid
|
Europe:EN50549-1,Germany：VDE4105/0124,UK:G99，South Africa:NRS097-2-1:2017
|
|
|
|||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
