Quick Details
-
Warranty:
-
25 years warranty
-
Brand Name:
-
Longi
-
Model Number:
-

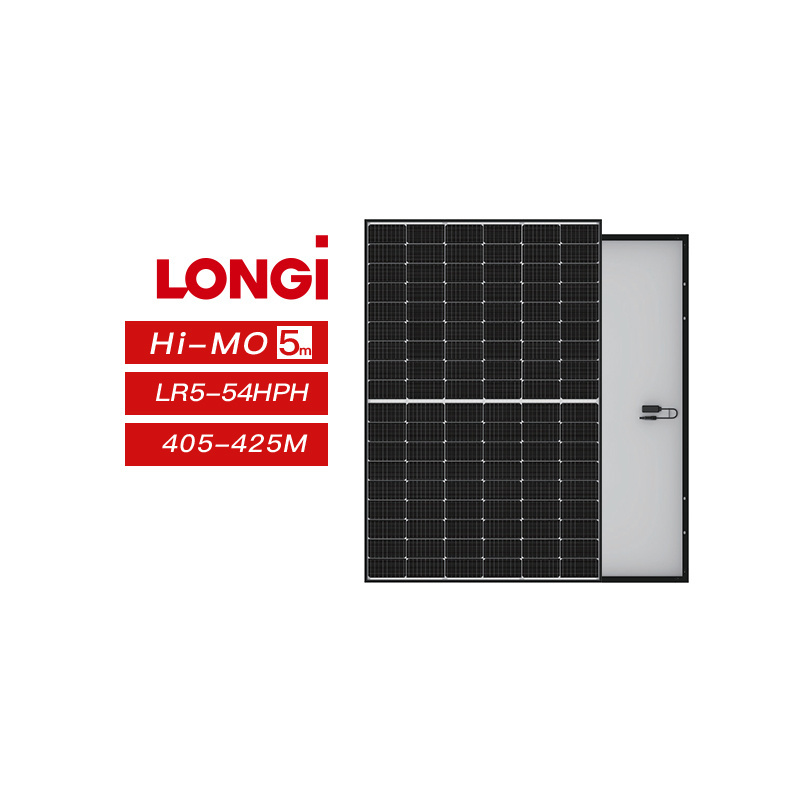

LR554HPH 405-425M
-
Place of Origin:
-
Anhui
-
Panel Dimensions:
-
1722*1134*30mm
-
Color:
-
Normal
-
Frame:
-
Anodized Aluminium Alloy
-
Material:
-
Silicon
-
Junction Box:
-
IP68 Rated
-
Application:
-
Solar System
-
Working Life:
-
More than 25 years
-
Work Time:
-
24 Hours
-
Cable:
-
4mm2
-
Weight:
-
20.8kg
-
Certificate:
-
TUV/CE, TUV CE
Quick Details
-
Cell size:
-
108cells
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.8%
-
Warranty:
-
25 years warranty
-
Brand Name:
-
Longi
-
Model Number:
-
LR554HPH 405-425M
-
Place of Origin:
-
Anhui
-
Panel Dimensions:
-
1722*1134*30mm
-
Color:
-
Normal
-
Frame:
-
Anodized Aluminium Alloy
-
Material:
-
Silicon
-
Junction Box:
-
IP68 Rated
-
Application:
-
Solar System
-
Working Life:
-
More than 25 years
-
Work Time:
-
24 Hours
-
Cable:
-
4mm2
-
Weight:
-
20.8kg
-
Certificate:
-
TUV/CE, TUV CE
Quick Data
|
Module Type
|
LR5-54HPH 410M
|
LR5-54HPH 415M
|
LR5-54HPH 420M
|
LR5-72HPB 425M
|
|||
|
Module Efficiency
|
21.0%
|
21.3%
|
21.5%
|
21.8%
|
|||
|
Voltage Max Power
|
31.25V
|
31.49V
|
31.73V
|
31.94V
|
|||
|
Open Circuit Voltage
|
37.25V
|
37.50V
|
37.75V
|
37.96V
|
|||
|
Current Max Power
|
13.12A
|
13.18A
|
13.24A
|
13.31A
|
|||
|
Short Circuit Current
|
13.88A
|
13.94A
|
14.01A
|
14.08A
|
|||
|
Backside Increase
|
NO
|
|
|
|
|||
|
Cell Type
|
P Type
|
|
|
|
|||
|
Dimension
|
1722*1134*30mm
|
|
|
|
|||
|
Weight
|
20.8kg
|
|
|
|
|||
|
Junction Box
|
IP68, three diodes
|
|
|
|
|||
|
Glass
|
Single Glass
|
|
|
|
|||
|
Frame
|
Anodized Aluminum Alloy
|
|
|
|
|||
Longi Technology
Why Choose LONGi Tochnology
1.
Hi-MO 54c has an industry standardized size, which is conducive to the system costs caused by the standardization of brackets and inverters.
The size and weight of module are suitable for single person handling
, and the operation and installation are convenient, and it is perfectly
suitable for 15A string inverter.
2.
LONGi has the largest module production capacity in the industry, with more than 65 GW in its integrated capacity network fully guaranteeing the supply of modules. In addition, the production network facilitates the global distribution of modules with the
help of land transportation, railway transportation and sea transportation.
3.
LONGi launched Life-cycle Standards to guarantee the whole life-cycel quality. LONGi's Integrated capacity layout can
guarantee the traceability of each module,
and our highly automated production lines feature end-to-end inspection and analysis processes to ensure that
each module meets the highest quality standards
. We select module materials according to the highest standards, with the requirement that all new materials be subject to extended qualification and reliability tests before being incorporated into our products. Third-party labs like RETC and PVEL have ranked our modules among the highest quality products on the market.
Longi Factory
Anhui Production Facilities
The Anhui production facilities consist of two plants: Chuzhou module plant and Hefei cell plant.
Kuching Production Facilities
The Kuching production facilities consist of seven plants: Kuching ingot plant, Kuching shaping plant, Kuching wafer plant,
Kuching Cell Plant 1-4, and Kuching module plant.
Kuching Cell Plant 1-4, and Kuching module plant.
In May 2022, Forbes released its 2022 Global 2000 List, in which LONGi rose to the 724th place in the rank.
Solar for Solar
LONGi supports the "Solar for Solar" business model. While creating low-cost clean energy products for the world, the company uses clean energy and green manufacturing practices in its operations whenever possible.
Since 2015, LONGi has located its operations in Yunnan, China, and Kuching, Malaysia, to utilize the abundant local hydropower resources to provide clean energy for its facilities. LONGi plans to integrate solar power plants with pumped storage in areas that feature significant elevation differences and abundant sunlight, creating an industrial model for using solar.
