Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Freerchobby
-
Material:
-
Aluminum
-
Model Number:
-
MP5065
-
Size:
-
50*60mm
-
Max power:
-
1550 watt
-
Kv:
-
270
-
Motor dimension:
-
50*65mm
-
Max torque:
-
4Nm
-
Motor resistance:
-
64mΩ
-
Weight:
-
0.99 lb / 0.45 kg
-
SHAFT:
-
Diameter 8mm, 20mm length, 3x1.5 keyway slot.
-
Motor Wire:
-
160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male.
-
Stator:
-
0.2mm thickness lamination japan steel
-
Magnet:
-
N42SH high temp curve magnet
Quick Details
-
Type:
-
Electric SkateBoard
-
Board Category:
-
Dragon Skateboard (Four-wheel)
-
Applicable People:
-
Adult
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Freerchobby
-
Material:
-
Aluminum
-
Model Number:
-
MP5065
-
Size:
-
50*60mm
-
Max power:
-
1550 watt
-
Kv:
-
270
-
Motor dimension:
-
50*65mm
-
Max torque:
-
4Nm
-
Motor resistance:
-
64mΩ
-
Weight:
-
0.99 lb / 0.45 kg
-
SHAFT:
-
Diameter 8mm, 20mm length, 3x1.5 keyway slot.
-
Motor Wire:
-
160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male.
-
Stator:
-
0.2mm thickness lamination japan steel
-
Magnet:
-
N42SH high temp curve magnet
5065 270KV 1550W DIY Electric Skateboard DC BLDC Brushless Motor
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.
Wire configuration:
Red = 5v
White = Temp
Blue = A
Yellow = C
Green = B
Black = GND
PRODUCT DESCRIPTION:
| Max Power | 1550 Watts |
| Max Current | 80 Amps |
| No-load Current | 1.12A 10V |
| Max Volts | 41.5V |
| Lipo | DC, BLDC, FOC (sinusoidal) |
| 3S-8S (11.1V-29.6V) | ABI, HALL, AS5047 |
| Max Torque | 4Nm |
| Motor Resistance | 64mΩ |
| Weight | 0.99 lb / 0.45 kg |
| SHAFT | Diameter 8mm, 20mm length, 3x1.5 keyway slot. |
| Motor Wire | 160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male. |
| Wire configuration |
Blue(Heat shrinkable film) = A
Black(Heat shrinkable film)= B Yellow(Heat shrinkable film)= C |
| Stator | 0.2mm thickness lamination japan steel |
| Magnet | N42SH high temp curve magnet |
| Brushless Motor Fits | 50mm Motor Mount |
| The number of pole | 14 |
Reference Information:
The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
Screws to mount the motor are not included with the motor.
The key for keyway is not included with motors for shipping
package just include 1pcs motor
If you need more motors, esc and remote controller, pls feel free to contact us.

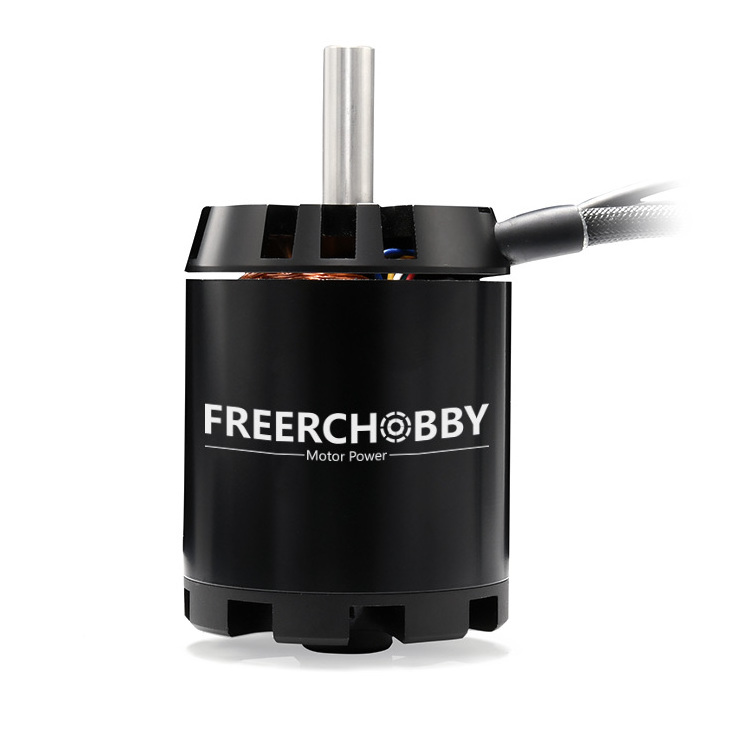

Motor Photos:
Motor drawing:
