Quick Details
-
Brand Name:
-
ZZKD
-
Model Number:
-
SHZ-D(III)
-
Place of Origin:
-
Henan, China
-
Cable Length:
-
8M
-
Outlet Size:
-
10L/MIN
-
Power:
-
180, 180W
-
Usage:
-
Water
-
Product name:
-
Lab Electric Water Jet Circulating Vacuum Pump
-
Flow:
-
60L/min
-
Lift:
-
8m
-
Body material:
-
Anti-corrosion/1Cr18
-
Max. pressure:
-
0.098Mpa
-
Sucking rate for single tap:
-
10L/min
-
Quantity of tap:
-
2 pcs
Quick Details
-
Application:
-
Commercial Buildings
-
Pressure:
-
Low Pressure
-
Voltage:
-
220/'50, 220V/50Hz
-
Brand Name:
-
ZZKD
-
Model Number:
-
SHZ-D(III)
-
Place of Origin:
-
Henan, China
-
Cable Length:
-
8M
-
Outlet Size:
-
10L/MIN
-
Power:
-
180, 180W
-
Usage:
-
Water
-
Product name:
-
Lab Electric Water Jet Circulating Vacuum Pump
-
Flow:
-
60L/min
-
Lift:
-
8m
-
Body material:
-
Anti-corrosion/1Cr18
-
Max. pressure:
-
0.098Mpa
-
Sucking rate for single tap:
-
10L/min
-
Quantity of tap:
-
2 pcs

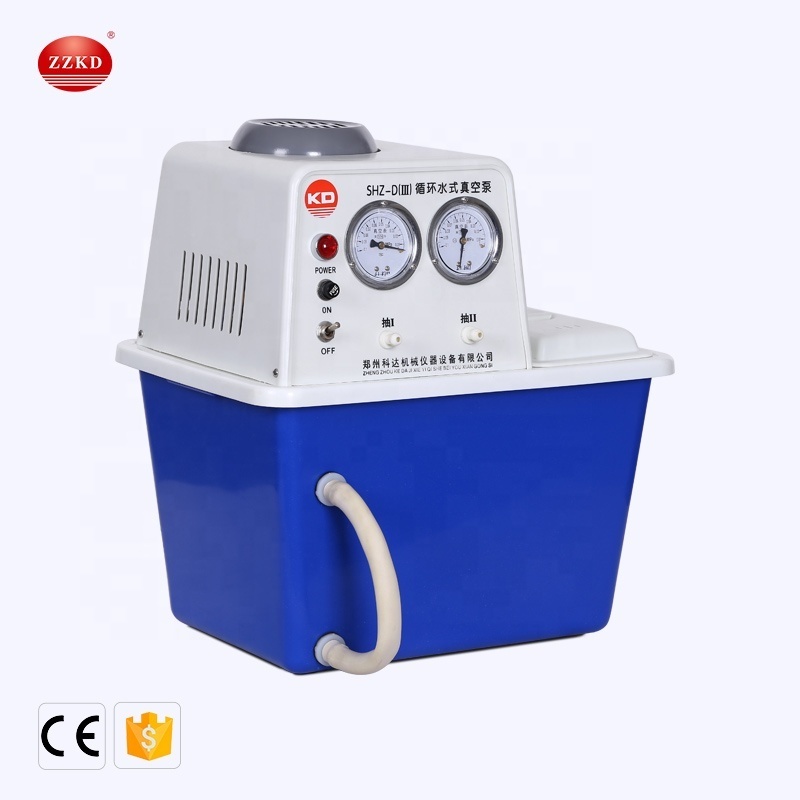

Lab Electric Water Jet Circulating Vacuum Pump
The pump adopts one modeling shell, small size on the basis of multi-purpose vacuum pump. It has small volume, light weight, beautiful appearance etc characters. Double-meter, double-tap pump and four-meter four-tap, double-side multi-purpose pumps is easy to do visual experiment for teachers as well as to turn off and on for students at any side.
| Model | SHZ-D(Ⅲ) | SHZ-D(Ⅲ)four-meter, four tap | |
| Power(W) | 180 | 370 | |
| Voltage(V/Hz) | 220/50 | ||
| Flow(L/min) | 60 | ||
| Lift(m) | 8 | ||
| Body material | Anti-corrosion/1Cr18 | Anti-corrosion | |
| Max. pressure (M Pa) | 0.098 | ||
| Sucking rate for single tap(L/min) | 10 | ||
| Quantity of tap (Pcs) | 2 | 4 | |
| Tank capacity(L) | 15 | ||
| Dimension | 400*280*420mm | ||
| Weight(kg) | 15 | ||
| Ultimate vacuum(kpa) | 26 | ||
| Security performance | Anti~corrosion, counter~current prevent valve | ||
Application of Water Jet Circulating Vacuum Pump:
It provides vacuum condition for evaporation, distillation, crystallization, drying, distillation, filtration pressure, vacuum degassing experiments. Especially suitable for colleges and universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticides, agricultural engineering, biological engineering etc industries’ scientific research, pilot and production.
The circulating water pump is used as a vacuum source for rotary evaporator, glass reactor and other vacuum distillation device.
Similar product:
Vertical circulating water vacuum pump.
