Quick Details
-
Model Number:
-
YG-F-100
-
Product Name:
-
silicone foam rubber
-
Material:
-
silicone foam rubber
-
Color:
-
red white,black ,gray, customer inquiry
-
Cell:
-
Closed cell
-
Size:
-
accept customized
-
Environmental Friendly:
-
Yes
-
Surface:
-
Fabric impression
-
Thickness:
-
1 - 30mm
-
Temperature range:
-
-50-280
-
Feature:
-
Excellent Resistance
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yiguang
-
Model Number:
-
YG-F-100
-
Product Name:
-
silicone foam rubber
-
Material:
-
silicone foam rubber
-
Color:
-
red white,black ,gray, customer inquiry
-
Cell:
-
Closed cell
-
Size:
-
accept customized
-
Environmental Friendly:
-
Yes
-
Surface:
-
Fabric impression
-
Thickness:
-
1 - 30mm
-
Temperature range:
-
-50-280
-
Feature:
-
Excellent Resistance

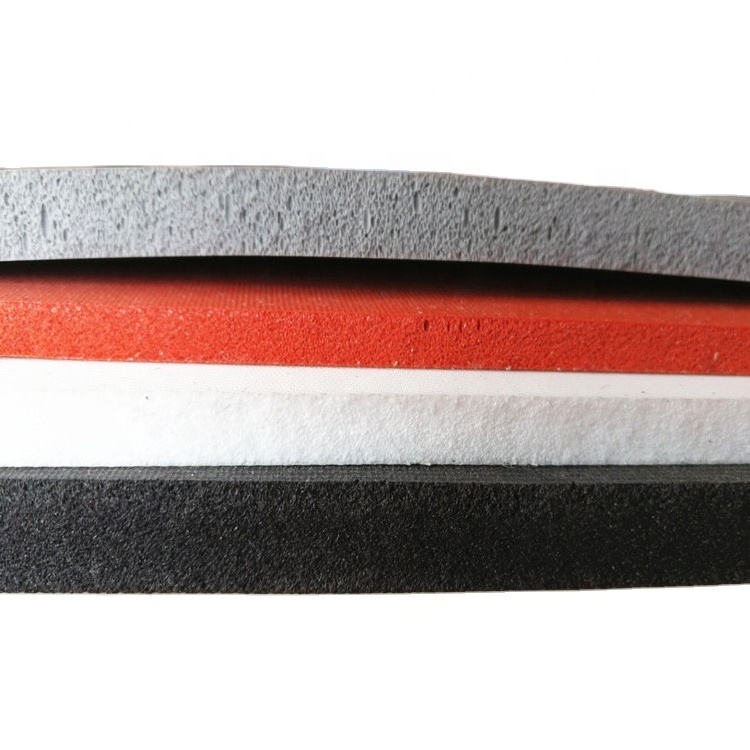

Factory export silicone foam sheet for heat press machine( Free sample offer )
[Technical Parameter]
|
Performance |
Parameter |
Test Standard |
|
Tensile Strength |
3.0 ~ 5.0 M pa |
ASTM D412 |
|
Breaking Strength |
55 K n/m |
ASTM D1458 |
|
Elongation |
150% ~ 300 % |
ASTM D412 |
|
Hardness |
10-4 0 Shore A (customize) |
ASTM 2240 |
|
Temperature Range |
- 6 0 °C ~2 6 0 °C |
En344 |
|
Density |
0.6 ~ 0.95 g/cc (customize) |
ASTM D792 |
[Size Specification (mm)]
Min Length: Unlimited Max Length: Unlimited
Min Width: Unlimited Max Width: 1200
Min Height: 1.0 Max Height: 30.0
[Standard Size (mm)] Width*Length*Thickness
290*380*(3~15); 380*380*(3~15); 400*600*(3~15); 500*500*(3~15);
500*600*(3~15); 600*800*(3~15); 400*500*(3~15); 500*700*(3~15);
800*1000*(3~15); 600*600*(3~15); 1000*1000*(3~15); 1000*1200*(3~15);
1000*1500*(3~15); 1500*1500*(3~15);
[Material & Usage]
1) Material: silica gel and additives
2) Usage: be widely used on heat press machine and due to its strong plasticity,
it can be made into Mats / Pads, Strips / Bars, Gaskets / Washers, Seals, etc.
Features:
1. UV resistance, anti-ozone, high temperature resistant and flame resistant.
2. Strong sealing ability, can prevent small particles and rainy effectively.
3. Dustproof,moistureproof ,airproof,shading,shockproof silicone rubber foamed sheet
Texture surface 2mm silicone rubber foamed sheet/rolls
Closed cell red silicone foam sheet/rubber foamed roll
Colored shore A 25 silicone rubber foamed pads
OEM color/ thickness/hardness silicone rubber foam sheet
