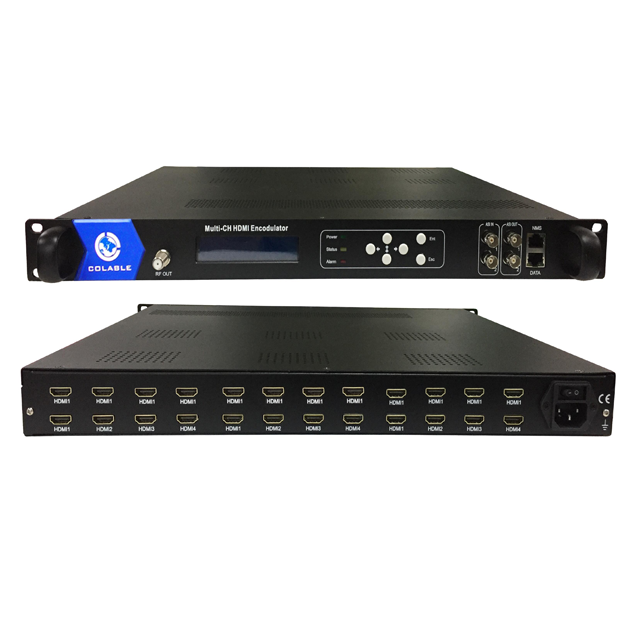

Multi Channel H.264 Encoding 1080p digital Rf Encoder Modulator with Dvb-c Isdb-t Dvb-t Atsc Modulation Encoder Modulator
Model:
COL5011V
* Optional * Input: 8/12/16/24 HD Output: 4/8 *DVB-C/DVB-T/ISDB-T/ATSC-T RF out
Outline
Features
8/12/16/24 HD input, MPEG-4 AVC/H.264 Video encoding
1000M IP output over UDP and RTP protocol(MPTS and SPTS)
RF output ,(ATSC, ISDBT, DTMB, DVB-C/-T)
2 ASI inputs
2 ASI Independent output (optional) as copy of 5MPTS
Support "Null PKT Filter" function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD, key function
Control via web management, and easy updates via web
Specifications
|
Input
|
HD (8/12/16/24 HD*MI)
|
|
|
|
|||
|
|
2 ASI inputs
|
|
|
|
|||
|
output
|
4RF output(DVB-C/DVB-T/ATSC/ISDBT)
|
|
|
|
|||
|
|
2 ASI output
|
|
|
|
|||
|
|
IP output(SPTS and MPTS)IP output over UDP and RTP protocol
|
|
|
|
|||
|
Video
|
Encoding
|
MPEG-4 AVC/H.264
|
|
|
|||
|
|
Resolution
|
Input:1920*1080_60P, 1920*1080_60i,1920*1080_50P, 1920*1080_50i,1280*720_60P, 1280*720_50P,
720*576_50i,720*480_60i,
|
|
|
|||
|
|
|
Output:1920*1080_30P,1920*1080_25P,1280*720_30P,
1280*720_25P,720*576_25P,720*480_30P
|
|
|
|||
|
|
Bit-rate
|
1Mbps~13Mbps(each channel)
|
|
|
|||
|
|
Rate Control
|
CBR
|
|
|
|||
|
Audio
|
Encoding
|
MPEG1 Layer2
|
|
|
|||
|
|
Sampling rate
|
44.1KHz and 48Khz
|
|
|
|||
|
|
Bit-rate
|
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
|
|
|
|||
|
|
Resolution
|
24-bit
|
|
|
|||
|
|
Audio Gain
|
0-255 Adjustable
|
|
|
|||
|
Multiplexing
|
Maximum PID Remapping
|
180 output pids per channel
|
|
|
|||
|
|
Function
|
PID remapping ( automatically or manually)
|
|
|
|||
|
|
|
Accurate PCR adjusting
|
|
|
|||
|
Modulator
|
DVB-T
|
RF number
|
4 DVB-T
|
|
|||
|
|
|
Standard
|
EN300744
|
|
|||
|
|
|
FFT mode
|
2K
|
|
|||
|
|
|
Bandwidth
|
6M, 7M, 8M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
|
|||
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥42 dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~ -10 dBm, 0.1db step
|
|
|||
|
|
DVB-C
|
RF number
|
4 RF output
|
|
|||
|
|
|
Standard
|
EN300 429/ITU-T J.83A/B/C
|
|
|||
|
|
|
MER
|
≥40db
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
|
Symbol Rate
|
5.0Msps~7.0Msps,1ksps stepd
|
|
|||
|
|
|
|
J.83A
|
J.83B/J.83C
|
|||
|
|
|
Constellation
|
16/32/64/128/256QAM
|
64/256 QAM
|
|||
|
|
|
Bandwidth
|
8M
|
6M
|
|||
|
|
ATSC-T
|
RF number
|
4 RF output
|
|
|||
|
|
|
Standard
|
ATSC A/53
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
8VSB
|
|
|||
|
|
|
FEC
|
RS(208 188)+
Trellis
|
|
|||
|
|
|
MER
|
≥40dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
ISDB-T
|
RF number
|
4 RF output
|
|
|||
|
|
|
Standard
|
ARIB STD-B31
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|||
|
|
|
Transmission Mode
|
2K
|
|
|||
|
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥40dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm,
0.1dBm step
|
|
|||
|
System function
|
Network management(WEB)
|
|
|
|
|||
|
|
Chinese and English language
|
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
Miscellaneous
|
Dimension
|
(W*L*H) 550mm*515mm*140mm
|
|
|
|||
|
|
weight
|
6kg
|
|
|
|||
|
|
Environment
|
0~45℃(work); -20~80℃(storage)
|
|
|
|||
|
|
Power requirements
|
AC100~240V, 50/60Hz
|
|
|
|||
