Quick Details
-
Rated Power:
-
550W
-
Dimension(L*W*H):
-
55*40*30cm
-
Weight (KG):
-
40
-
Applicable Industries:
-
machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Name:
-
Pipe Cutting Machine
-
Color:
-
Yellow and black
-
Speed:
-
2800rmp
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Voltage:
-
380V
-
Rated Power:
-
550W
-
Dimension(L*W*H):
-
55*40*30cm
-
Weight (KG):
-
40
-
Applicable Industries:
-
machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Name:
-
Pipe Cutting Machine
-
Color:
-
Yellow and black
-
Speed:
-
2800rmp
MR- R300 newest best pipe cutting and beveling machine with high efficiency
1.Applying to non-heat treatment workpiece, for example various mould, parts of machine’s rubdown.
2.Adopting milling cutter and tungsten steel quadrilateral edge 4130511 is fast and convenient.
3. It is accurate and with perfect surface.
| Model: | MR-R300 |
|
Chamfering height |
0-3mm (the max chamfer should not be bigger than 2mm everytime) |
|
Chamfering angle |
15°-45° |
|
Power |
550W, 380V 3/4HP |
|
Speed |
2800rmp |
|
Dimension |
55*40*30cm |
|
Weight |
40KG |
|
Standard Equipment |
Inserts*1 set |
Details:

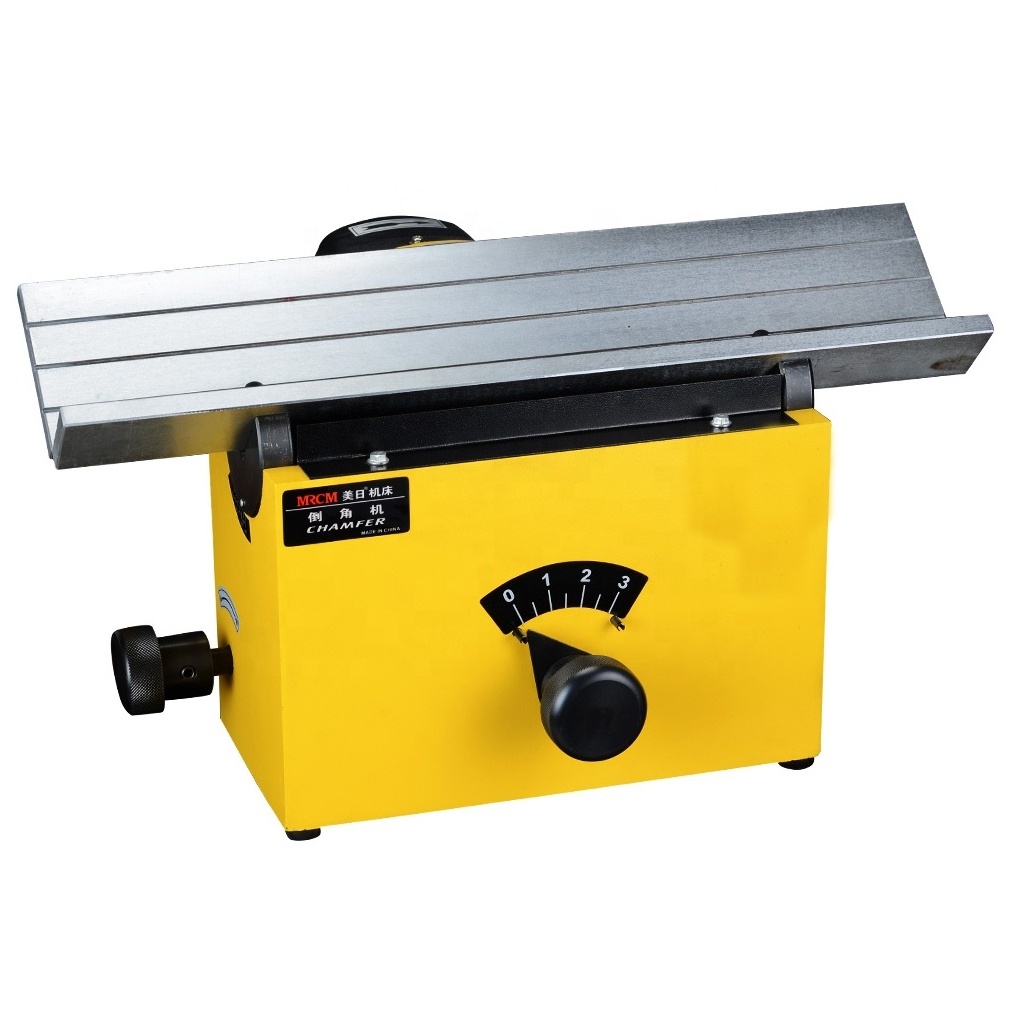

MR-R300
SIDE CHAMFER MACHINE
This machine is suitable for the workpieces without heat treatment, such as the chamfering of various moulds and mechanical parts.suitable for iron metal parts chamfering.
The slide rail is treated with high quality steel plate through heat treatment, and it is durable.
No need to clamp, simple operation, chamfering, easy adjustment, economic reliability, efficiency greatly improved, suitable for batch processing parts enterprises.
In operation, the slide rail is leaned to the workpiece and is cut in the direction of the arrow.
Cutting by side milling cutter, the 4130511 square blade blade of hard alloy (Wu Gang) is convenient and quick to replace. The old blade used by the milling machine can also be used.
The exact surface roughness of the chamfering angle is good.
Note: it is best to keep the grinding amount of 2mm.
Focus on precision and detail
The working table is made of high quality die steel through superheat treatment. It is durable and has little friction.
The chamfering surface is smooth and smooth, and the use of uniform speed can achieve better chamfering effect.
No clamping, simple operation, chamfering, easy adjustment, economic reliability, high efficiency, suitable for batch processing parts enterprises. In operation, the slide rail is leaned to the workpiece and is cut in the direction of the arrow.
Cutting by side milling cutter, the 4130511 square blade blade of hard alloy (Wu Gang) is convenient and quick to replace. The old blade used by the milling machine can also be used. The exact surface roughness of the chamfering angle is good.
