Quick Details
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
Varies
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Spiral Chute classifier
-
Name:
-
Gold Ore Processing Equipment
-
Feeding size:
-
0-10mm
-
Application:
-
Gold
-
Usage:
-
Separate Gold
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ASCEND
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
Varies
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Spiral Chute classifier
-
Name:
-
Gold Ore Processing Equipment
-
Feeding size:
-
0-10mm
-
Application:
-
Gold
-
Usage:
-
Separate Gold

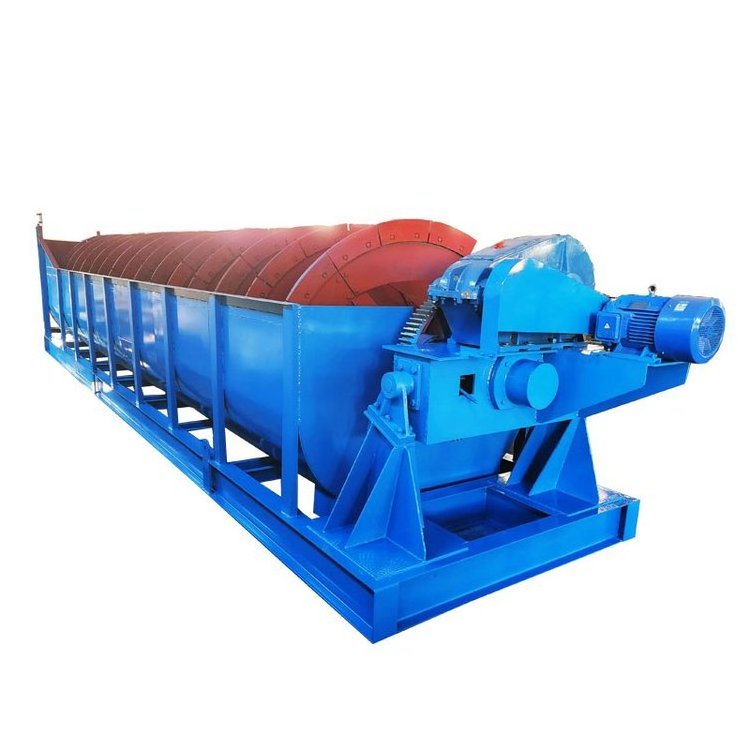

Clay Minerals Washing Spiral Classifier Gold Ore Separating Machine
Product Description
Spiral classifier is commonly used in the grinding circuit of the beneficiation as the pre-classification and inspect classification machine, and also in the ore washing and desliming operation. It is easy to form a closed cycle with the grinding machines. It has the advantages of simple structure, reliable work, and easy operation, etc.
Advantages of Spiral Classifier
1. Low power cosumption,high classifying efficiency
2. Heavy duty, long workinglife
3. Powerful manual control and electric control lifting device
4. Wide choice of weir height, rigid tank and substructure
Detailed Images
Working Principle
Different solid granularities have different gravity and thus have different dropping speed. The fine ore granularities floating in the water will overflow and the big ones will sink to the bottom and discharge from the upper part by spiral pushing. It can filter the granularities from the machine and then spin the rough particles to charging part by spiral vane and discharge the fine granularities from the overflow pipe. The base of the machine adopts a channel steel and the body adopts welded steel plate. The water inlet of spiral axle and axle head adopt pig iron cover for wear proofing and long life operation. The lifting equipment has two types, manual control and electric control.
Main Technical Parameters
|
Model |
Diameter of screw
|
Speed of screw
|
Capacity(t/d) |
Slop(º) |
Driving |
Lifting motor |
Dimension
|
Weight
|
|||
|
Returned |
Overflow |
Model |
Power
|
Model |
Power
|
||||||
| FLG-508 | 508 | 8-12 | 140-260 | 32 | 14-18 | Y90L-6 | 4 | / | / | 5340x934x1274 | 2.8 |
| FLG-750 | 750 | 6-10 | 250-570 | 65 | 14-18 | Y132S-6 | 5.5 | / | / | 6270x1267x1584 | 3.8 |
| FLG-915 | 915 | 5-8 | 415-1000 | 110 | 14-18 | Y132M2-6 | 7.5 | / | / | 7561x1560x2250 | 4.5 |
| FLG-1200 | 1200 | 5-7 | 1165-630 | 155 | 17 | Y132M2-6 | 7.5 | Y90L-4 | 1.5 | 7600x1560x2250 | 7.0 |
| FLG-1500 | 1500 | 2.5-6 | 1830-2195 | 235 | 17 | Y160M-6 | 11 | Y100L-4 | 2.2 | 10200x1976x4080 | 9.5 |
| FLG-2000 | 2000 | 3.5-5.5 | 3890-5940 | 400 | 17 | Y160L-4 | 15 | Y132S-6 | 3 | 10788x2524x4486 | 16.9 |
| 2FLG-1200 | 1200 | 5-7 | 2340-3200 | 310 | 12 | Y132M2-6 | 7.5x2 | Y100L-4 | 2.2 | 8230x2728x3110 | 15.8 |
| 2FLG-1500 | 1500 | 4-6 | 2280-5480 | 470 | 12 | Y160M-6 | 11x2 | Y100L-4 | 2.2 | 10410x3392x4070 | 21.1 |
| 2FLG-2000 | 2000 | 3.6-4.5 | 7780-11880 | 800 | 12 | Y160L-6 | 15x2 | Y100L-4 | 3 | 10788x4595x4486 | 36.4 |
Packing&Delivery
Mining Cases
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
