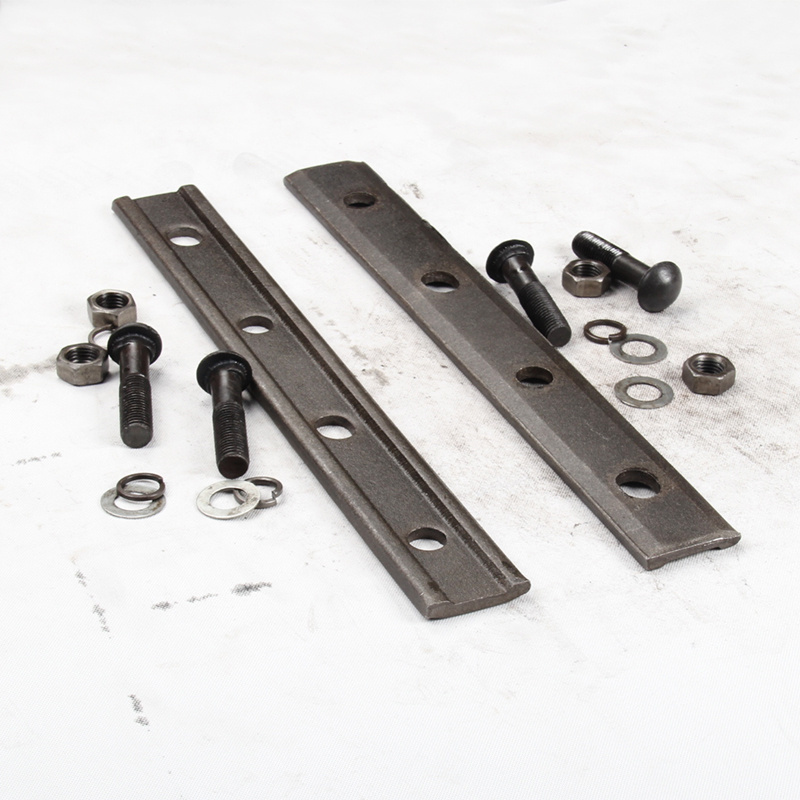

In rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place. In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
*
-
Model Number:
-
standard
-
HS Code:
-
730240
-
Usage:
-
Fastening Railroad
-
Quality Control:
-
Production Process
-
Keyword:
-
Railway Fastener
-
Color:
-
Clients'demend
-
Sample:
-
Available upon request
-
Advantage:
-
Large Stock
-
Year Established:
-
1997
-
Application:
-
Rail Maintenance
Quick Details
-
Material:
-
carbon steel / Q235 / 20# / 30# /35# / 40# steel
-
Type:
-
rail fastener, Rail Fishplate
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
*
-
Model Number:
-
standard
-
HS Code:
-
730240
-
Usage:
-
Fastening Railroad
-
Quality Control:
-
Production Process
-
Keyword:
-
Railway Fastener
-
Color:
-
Clients'demend
-
Sample:
-
Available upon request
-
Advantage:
-
Large Stock
-
Year Established:
-
1997
-
Application:
-
Rail Maintenance
Products Description
Product Details
Product Paramenters
|
Rail Joint For Light Rail(GB11265-89)
|
|
|
|
|
|
|||||
|
Rail size
(kg/m)
|
Main dimension(mm)
|
|
|
|
Theoretical Weight
(kg/piece)
|
|||||
|
|
Length
|
Width
|
Hole Diameter
|
Hole Count
|
|
|||||
|
9
|
385
|
43.13
|
14
|
4
|
0.81
|
|||||
|
12
|
409
|
46.5
|
14
|
4
|
1.39
|
|||||
|
15
|
409
|
53.54
|
18
|
4
|
2.2
|
|||||
|
22
|
510
|
61.73
|
22
|
4
|
3.8
|
|||||
|
30
|
561
|
71.48
|
22
|
4
|
5.54
|
|||||
|
Rail Joint For Heavy Rail(GB186-63 、GB185-63)
|
|
|
|
|
|
|||||
|
Rail size
(kg/m)
|
Main dimension(mm)
|
|
|
|
Theoretical Weight
(kg/piece)
|
|||||
|
|
Length
|
Width
|
Hole Diameter
|
Hole Count
|
|
|||||
|
38、43
|
790
|
94.03
|
40
|
6
|
15.57
|
|||||
|
50
|
820
|
104.22
|
46
|
6
|
18.72
|
|||||
|
Standard
|
Type
|
Length/Diameter
|
Weight/Material
|
|
AREMA
|
115RE
|
4 hole-24″
|
17.04Kg
|
|
|
115RE
|
6 hole-36″
|
25.56Kg
|
|
|
132RE-136RE
|
4 hole-24″
|
17.75Kg
|
|
|
132RE-136RE
|
6 hole-36″
|
26.63Kg
|
Other sizes of rail joint according to your requirements. Such As Jis Standard Rail Joint, UIC Standard Rail Joint, Din Standard Rail Joint, etc.
Packaging and Shipping
We packed rail fish plate in wooden case or as your requirement, and after loading the container, it will be reinforced.
Our products are shipped to all parts of the world, and will be shipped as soon as possible after receiving your order, and we will promptly tell you about all the movements of the products.
Our products are shipped to all parts of the world, and will be shipped as soon as possible after receiving your order, and we will promptly tell you about all the movements of the products.
