Quick Details
-
Item Name:
-
Hidden magnetic shear locks(1200KG/2600Lbs)
-
Material:
-
Brushed aluminum
-
Voltage:
-
DC12V or DC24V
-
Holding force:
-
1200KG(2600lbs)
-
Magnet size:
-
182Lx30Wx25D(mm)
-
Armature Plate size:
-
182Lx30Wx23.6D(mm)
-
Feedback:
-
Door senso NO NC COM
-
Time delay:
-
0.3.6.9S adjustable
-
Working current DC12V:
-
pull in: 900mA, holding: 220mA.
-
Working current DC24V:
-
pull in: 900mA, holding: 190mA.
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
S4A
-
Model Number:
-
SL-1200
-
Item Name:
-
Hidden magnetic shear locks(1200KG/2600Lbs)
-
Material:
-
Brushed aluminum
-
Voltage:
-
DC12V or DC24V
-
Holding force:
-
1200KG(2600lbs)
-
Magnet size:
-
182Lx30Wx25D(mm)
-
Armature Plate size:
-
182Lx30Wx23.6D(mm)
-
Feedback:
-
Door senso NO NC COM
-
Time delay:
-
0.3.6.9S adjustable
-
Working current DC12V:
-
pull in: 900mA, holding: 220mA.
-
Working current DC24V:
-
pull in: 900mA, holding: 190mA.

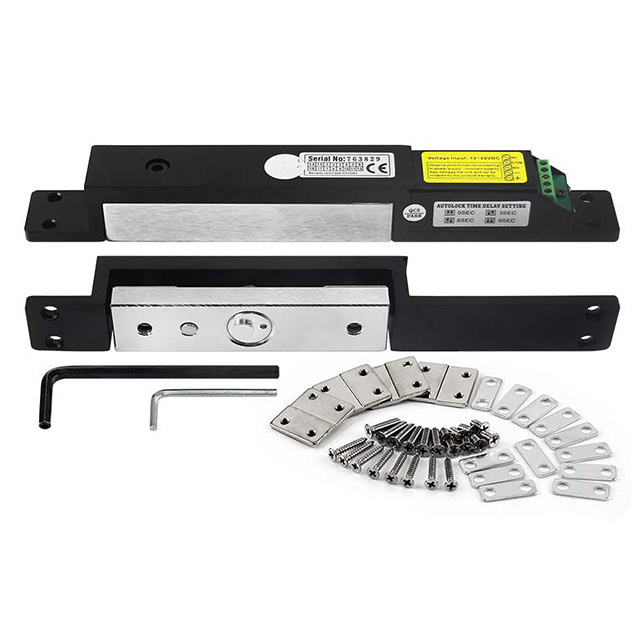

12V/24V Brushed aluminum Hidden magnetic locks Shear lock 1200KG 2600Lbs SL-1200
This is Danny from S4a Industrial Co.,Limited.
We are professional supplier for high quality access controller at competitive price.
Here are our main categoties below:_
- Access Control Panel
- Standalone Access Controller(keypad/smart card/fingerprint)
- Facial & Fingerprint Time Attendance and Access Control
- Electric Magnetic lock / Bolt lock / Strike lock/Cabinet lock
- RFID Card Reader
- Exit Push Button and other accessories etc.
Now show you the magnetic locks as follow~
Shear lock 1200KG=2600Lbs
1. Brushed aluminum
2. Holding force: Up to 2600lbs(1200kg)
3. Magnet size: 182x30x25mm
4. Armature Plate size: 182x30x23.6mm
5. Operating voltage: DC12V or DC24V
6. Working current:
DC12V: pull in:900mA, Holding: 220mA.
DC 24V: pull in:900mA, Holding: 190mA.
|
Specification |
|
|
Material |
Brushed aluminum |
|
Voltage |
DC12V or DC24V |
|
Working current |
DC12V: pull in: 900mA, holding: 220mA. |
|
|
DC24V: pull in: 900mA, holding: 190mA. |
|
Holding force |
1200KG(2600lbs) |
|
Magnet size |
182Lx30Wx25D(mm) |
|
Armature Plate size |
182Lx30Wx23.6D(mm) |
|
Feedback |
Door senso NO NC COM |
|
Time delay |
0.3.6.9S adjustable |
|
Weight |
1.75KG |
