- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
outdoor advertising screen
-
Warranty:
-
1 Year
-
Optional Function:
-
LED Logo
-
OSD language:
-
English
-
Type:
-
TFT
-
Brightness:
-
1500cd/m2
-
Viewing Angle:
-
178°/178°
-
Response Time:
-
6ms
-
Input Voltage:
-
AC 110V~240V
-
Contrast Ratio:
-
4000:1
Quick Details
-
Brand Name:
-
USER
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
US-AD550LHK
-
Product name:
-
outdoor advertising screen
-
Warranty:
-
1 Year
-
Optional Function:
-
LED Logo
-
OSD language:
-
English
-
Type:
-
TFT
-
Brightness:
-
1500cd/m2
-
Viewing Angle:
-
178°/178°
-
Response Time:
-
6ms
-
Input Voltage:
-
AC 110V~240V
-
Contrast Ratio:
-
4000:1

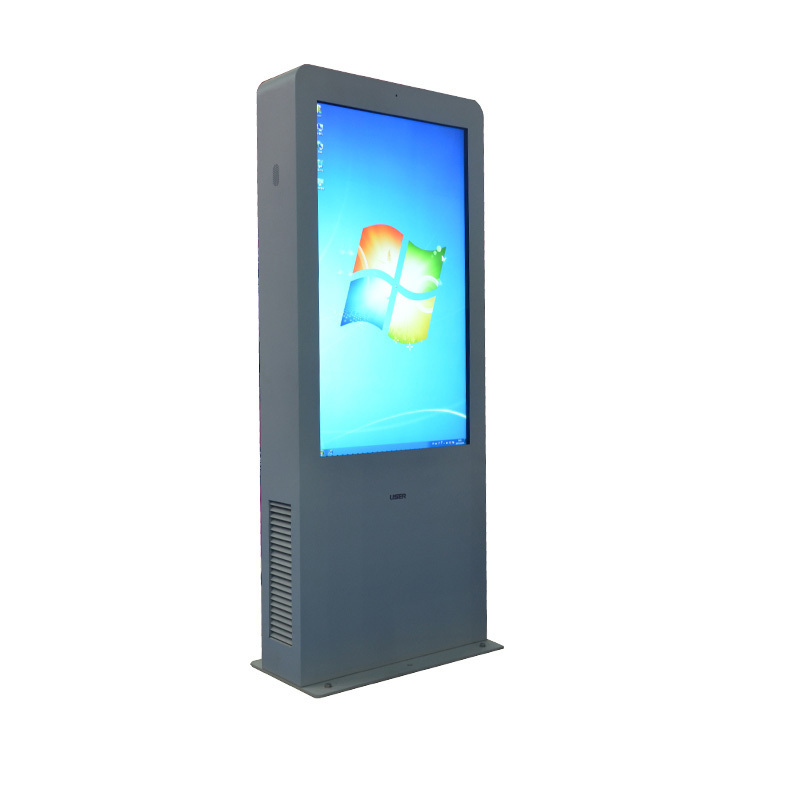

55 inch waterproof advertising screen outdoor
| Model No. | US-AD550LHK | |||||||||
| Panel size | 55″TFT-LCD | |||||||||
| Display area(mm)/mode | 1209.6mm(H) x 680.4mm(V) 16:9 | |||||||||
| Maximum resolution | 1920*1080 | |||||||||
| Display color | 1.073G(10bits/color) | |||||||||
| 0.21mm(H) x 0.63mm(V) (mm) | ||||||||||
| Brightness (nits) | 800cd/m*m | |||||||||
| Contrast | 4000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 6.ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | Infrared touch | |||||||||
|
Positioning
accuracy |
±2mms | |||||||||
| Transmittance | 92% | |||||||||
| Hardness | 7H | |||||||||
| Click manner | double point/mult-point(optional) | |||||||||
| Response time | 10ms | |||||||||
| Output Resolution | 4096X4096 | |||||||||
| Life time |
Single point of more
than 600 million times |
|||||||||
| Input and output | ||||||||||
| VGA input | 2 | |||||||||
| CVBS input | 2 | |||||||||
| YPbPr input | 1 | |||||||||
| TV | 1 | |||||||||
| HD | 4 | |||||||||
| USB2.0 | 6 | |||||||||
| LAN | 1 | |||||||||
| PC Audio | 1 | |||||||||
| Audio(L/R) input | 1 | |||||||||
| Audio(L/R) output | 1 | |||||||||
| Thermal printer | 1 | |||||||||
| Speaker | 2×10W(8 ohm) | |||||||||
|
Video
|
||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Remote controller | Special | |||||||||
|
OSD display( screen menu display)
|
||||||||||
| Menu language | Chinese/English | |||||||||
| Computer | ||||||||||
| Main chipset | Intel H61 | |||||||||
| CPU | Intel I3-3220 3.1GHz | |||||||||
| System bus frequency | 800/1066/1333 MHz | |||||||||
| Graphics card | Integrated | |||||||||
| Audio card | Integrated AC97 | |||||||||
| Network card | Integrated 10/100/1000M adaptive | |||||||||
| Memory | DDRIII 2G (max to 4G) | |||||||||
| Hard Disk | 32G SATA (max to 1 TB) | |||||||||
| WIFI | Yes | |||||||||
| b | Optional | |||||||||
| Operation system | Windows/Linux | |||||||||
| Power | ||||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||||
| Maximum power consumption | 3600W | |||||||||
| Standby power consumption | <5W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0℃~50℃ | |||||||||
| Storage temperature | - 20 ℃ ~60 ℃ | |||||||||
| Working humidity | 85% | |||||||||
| Storage humidity | 85% | |||||||||
| Waterproof grade | Outdoor IP34 | |||||||||
| Temperature control | Air cooling(Fans) | |||||||||
| Appearance | ||||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | Metal case SPCC | |||||||||
| Installation | flood-standing/wall mounted | |||||||||
| Pricing(EXW Shenzhen) | ||||||||||
| Detailed functions | ||||||||||
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||||
| Audio format | Wave/MP3/WMA/AAC | |||||||||
| Image format | JPEG/BMP/TIFF/PNG/GIF | |||||||||
| Image resolution | 480P/720P/1080P | |||||||||
| Split screen display | Editable | |||||||||
| Running subtitle | location, word size, color and backlight are editable | |||||||||
Click the next picture to learn USER popular products.
1.Having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 13 years of experience gives us the edge!
2. We currently provide OEM/ODM services for many customers worldwide, building, proof of concepts, designs and large orders is our strength.
3. Here at USER SDT, we understand that our new partners need to order samples, we encourage them to do so, once you have seen the quality of our products you will understand why we are number one in our market.
4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.
5.At USER SDT, we offer quality services from the ideas to proof of concept and finally to sample prototypes, this gives us experience and a wide range of intelligent displays product knowledge.
6.Our years experiences made us faster and better, our teams are truly specialized, from our purchasing department to our factory workers, everyone is key to our success. Our sales teams are composed of many nationalities , some from foreign markets with years of experience. This gives USER SDT the best communication skills in the industry. Our English and world market knowledge is another reason why choosing us makes only sense.
7.Our Trade Assurance limit on Alibaba keeps growing, we can now be covered up to US $325,000.00 on your orders, take the time to read about this option, secure your orders with Alibaba Trade Assurance today!
8.As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.
Our factory is under the ISO 9001/ISO14001 certification. Our products have been exported to over eighty (80) worldwide countries, many of our products are also certified from SASO, KC, BIS, PSE and CE, FCC, RoHS. At present, USER SDT can customize displays from 5 to 107 inches.
Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
1) Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.
2) Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.
4) Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $323,000, and it is still going up.
5) Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
6) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company USER perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
