Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TKweld
-
Model Number:
-
E6013
-
Operating Current:
-
DC AC
-
Application:
-
Welding Low Carbon Steel Materials
-
Product Name:
-
Welding Rods
-
Characteristic:
-
Non Corrosive
-
Advantage1:
-
High Hardness
-
Advantage2:
-
General Corrosion Resistance
-
Advantage3:
-
Long-Lastingness
-
Feature:
-
The ability to hold on to any Temperatures
-
Usages:
-
Ship, bridge, pressure vessel etc.
-
Package:
-
4 boxes* 5kg per inner box
-
Certification:
-
ABS BV CCS DNV.GL RS
-
Samples:
-
Freely
Quick Details
-
Material:
-
Carbon Steel
-
Welding Current:
-
380A
-
Operating Temperature:
-
Standard Temperature
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TKweld
-
Model Number:
-
E6013
-
Operating Current:
-
DC AC
-
Application:
-
Welding Low Carbon Steel Materials
-
Product Name:
-
Welding Rods
-
Characteristic:
-
Non Corrosive
-
Advantage1:
-
High Hardness
-
Advantage2:
-
General Corrosion Resistance
-
Advantage3:
-
Long-Lastingness
-
Feature:
-
The ability to hold on to any Temperatures
-
Usages:
-
Ship, bridge, pressure vessel etc.
-
Package:
-
4 boxes* 5kg per inner box
-
Certification:
-
ABS BV CCS DNV.GL RS
-
Samples:
-
Freely
E6013 has excellent welding performance, excellent operating performance, easy reignition, stable arc and beautiful appearance of weld.
Product Description
DEPOSIT COMPOSITION OF E6013 (Quality Score): %
|
Items
|
C
|
Mn
|
Si
|
S
|
P
|
Ni
|
Cr
|
Mo
|
V
|
|
Require-ments
|
≤0.10
|
0.32-0.55
|
≤0.30
|
≤0.030
|
≤0.035
|
≤0.30
|
≤0.20
|
≤0.30
|
≤0.08
|
|
Typical Results
|
0.08
|
0.37
|
0.18
|
0.020
|
0.025
|
0.030
|
0.035
|
0.005
|
0.004
|
DEPOSIT COMPOSITION OF E7018 (Quality Score): %
|
Items
|
C
|
Mn
|
Si
|
S
|
P
|
Ni
|
Cr
|
Mo
|
V
|
|
Require-ments
|
≤0.10
|
0.85-1.40
|
≤0.65
|
≤0.030
|
≤0.035
|
≤0.30
|
≤0.20
|
≤0.30
|
≤0.08
|
|
Typical Results
|
0.06
|
1.00
|
0.30
|
0.015
|
0.020
|
0.030
|
0.035
|
0.005
|
0.004
|
DEPOSIT COMPOSITION OF E6010 (Quality Score): %
|
Items
|
C
|
Mn
|
Si
|
S
|
P
|
Ni
|
Cr
|
Mo
|
V
|
|
Require-ments
|
≤0.20
|
≤1.20
|
≤1.00
|
≤0.035
|
≤0.040
|
≤0.30
|
≤0.20
|
≤0.30
|
≤0.08
|
|
Typical Results
|
0.09
|
0.42
|
0.15
|
0.020
|
0.025
|
0.030
|
0.035
|
0.005
|
0.004
|
DEPOSIT COMPOSITION OF E6011 (Quality Score): %
|
Items
|
C
|
Mn
|
Si
|
S
|
P
|
Ni
|
Cr
|
Mo
|
V
|
|
Require-ments
|
≤0.20
|
≤1.20
|
≤1.00
|
≤0.035
|
≤0.040
|
≤0.30
|
≤0.20
|
≤0.30
|
≤0.08
|
|
Typical Results
|
0.09
|
0.42
|
0.15
|
0.020
|
0.025
|
0.030
|
0.035
|
0.005
|
0.004
|

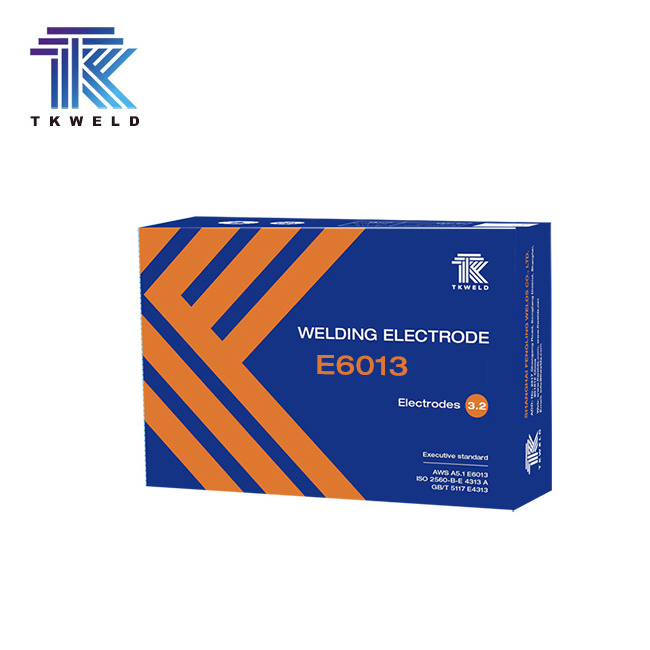

E6013 Welding
Electrode
Easy to use
All position welding, general purpose rod for shallow penetration or in poor fit up conditions
Excellent wetting action, yielding smooth and flat beads with steady arc with either AC or DC
Low spatter and excellent slag removal, virtually self cleaning in vertical down fillets
Use on all types of mild steel where ease of operation and good appearance is required in all positions, ideal for vertical down welding.
Use for all types of mild steel fabrication
All position welding, general purpose rod for shallow penetration or in poor fit up conditions
Excellent wetting action, yielding smooth and flat beads with steady arc with either AC or DC
Low spatter and excellent slag removal, virtually self cleaning in vertical down fillets
Use on all types of mild steel where ease of operation and good appearance is required in all positions, ideal for vertical down welding.
Use for all types of mild steel fabrication
Packing & Delivery
2.5kg/5kg/Box, 20kg/Carton, 1000kg/Pallet
