HDPE PIPE
Paramenters：
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Hdpe Flanged Dredging Pipes
-
Specification:
-
dn20mm~dn2000mm or customized
-
Length:
-
5.8m;6m,12m according customer's requirement
-
Thickness:
-
2mm~60mm
-
Standard:
-
ISO4427/ IPS/DIPS
-
Color:
-
Black
-
Connection:
-
Electro fusion joint, flanged joint
-
Pipe Density:
-
0.95-0.96kg/m3
-
Certification:
-
CE ISO
-
Features:
-
Wear resistance
-
product Name:
-
Hdpe Flanged Dredging Pipes
-
Pressure:
-
0.6Mpa-1.6Mpa
-
usage:
-
Water Supply and dredge
-
Life span:
-
70 Years Under Normal Conditions
-
company feature:
-
direct factory
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hesu
-
Model Number:
-
Hdpe Flanged Dredging Pipes
-
Specification:
-
dn20mm~dn2000mm or customized
-
Length:
-
5.8m;6m,12m according customer's requirement
-
Thickness:
-
2mm~60mm
-
Standard:
-
ISO4427/ IPS/DIPS
-
Color:
-
Black
-
Connection:
-
Electro fusion joint, flanged joint
-
Pipe Density:
-
0.95-0.96kg/m3
-
Certification:
-
CE ISO
-
Features:
-
Wear resistance
-
product Name:
-
Hdpe Flanged Dredging Pipes
-
Pressure:
-
0.6Mpa-1.6Mpa
-
usage:
-
Water Supply and dredge
-
Life span:
-
70 Years Under Normal Conditions
-
company feature:
-
direct factory
Welcome to HESU HOME
Professional HDPE pipe/ PVC pipe manufacture
we are sincerely recruit agents from all over the world.

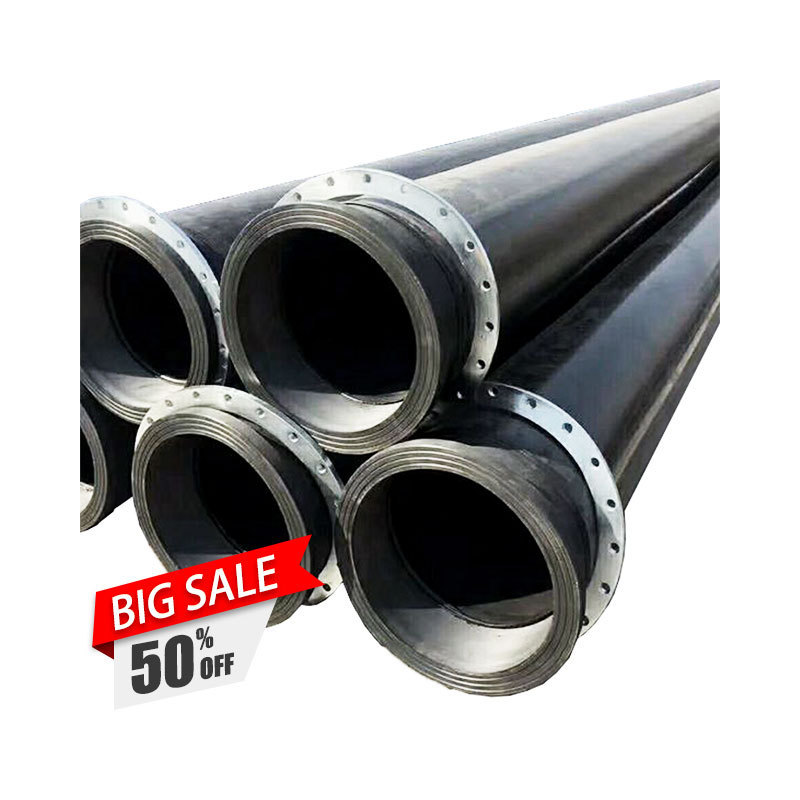

12inch HDPE Pipe with Flange Connections dredge Pipe Floats for slurry dredger
Product Description
|
Product Name
|
hdpe dredging pipe
|
|
Color
|
Black
|
|
Standard
|
GB/T13663-2000,ISO 4427-1:2007
|
|
Specification
|
dn20-2000mm
|
|
Pressure
|
0.6MPa SDR26,0.8MPa SDR21,1MPa SDR17,1.25MPa SDR 13.6,1.6MPa SDR 11
|
|
Main application
|
Water Supply and dredge
|
|
Guarantee
|
More than 70 years
|
Ace Flowtech Co., Ltd is focused on serving dredger pipeline, which includes Floating/Shore HDPE Pipe, Discharge Steel Pipe, Pipe Floater and Suction/Discharge Hose, Floating Hose&Armored Hose.
The assemblies on land for dredging conducts mainly by HDPE Pipe with several steel accessories like bends, hydraulic valves, ball joints, diffusers, spreaders and reclamation boxes.
Ace Flowtech Co., Ltd dredger pipeline have unique features for a long term, corrosion free abrasion resistant & low maintenance performance in the seas, lakes and all other water bodies. The high density PE pipes are pre- welded with stub-ends & steel angles.
Product Paramenters
|
Nominal Diameter (mm)
|
Wall Thickness (mm)
|
|
|
|
|
|
|
||||||
|
|
SDR26
|
SDR21
|
SDR17
|
SDR13.6
|
SDR11
|
SDR9
|
SDR7
|
||||||
|
|
PN6
|
PN8
|
PN10
|
PN12.5
|
PN16
|
PN20
|
PN25
|
||||||
|
110
|
4.2
|
5.3
|
6.6
|
8.1
|
10.0
|
12.3
|
15.1
|
||||||
|
160
|
6.2
|
7.7
|
9.5
|
11.8
|
14.6
|
17.9
|
21.9
|
||||||
|
200
|
7.7
|
9.6
|
11.9
|
14.7
|
18.2
|
22.4
|
27.3
|
||||||
|
225
|
8.6
|
10.8
|
13.4
|
16.6
|
20.5
|
25.2
|
30.8
|
||||||
|
250
|
9.6
|
11.9
|
14.8
|
18.4
|
22.7
|
27.9
|
34.2
|
||||||
|
280
|
10.7
|
13.4
|
16.6
|
20.6
|
25.4
|
31.3
|
38.3
|
||||||
|
315
|
12.1
|
15.0
|
18.7
|
23.2
|
28.6
|
35.2
|
43.0
|
||||||
|
400
|
15.3
|
19.1
|
23.7
|
29.4
|
36.3
|
44.7
|
54.6
|
||||||
|
450
|
17.2
|
21.5
|
26.7
|
33.1
|
40.9
|
50.3
|
61.5
|
||||||
|
500
|
19.1
|
23.9
|
29.7
|
36.8
|
45.4
|
55.8
|
--
|
||||||
|
560
|
21.4
|
26.7
|
33.2
|
41.2
|
50.8
|
62.5
|
--
|
||||||
|
630
|
24.1
|
30.0
|
37.4
|
46.3
|
57.2
|
70.3
|
--
|
||||||
|
710
|
27.2
|
33.9
|
42.1
|
52.2
|
64.5
|
79.3
|
--
|
||||||
|
800
|
30.6
|
38.1
|
47.4
|
58.8
|
72.6
|
89.3
|
--
|
||||||
|
900
|
34.4
|
42.9
|
53.3
|
66.2
|
81.7
|
--
|
--
|
||||||
|
1000
|
38.2
|
47.7
|
59.3
|
72.5
|
90.2
|
--
|
--
|
||||||
Pipe Floater Paramenters:
|
Nominal Diameter (mm)
|
Floater Inner Diameter (mm)
|
Floater Outer Diameter (mm)
|
Floater Length (mm)
|
Buoyancy (kg)
|
|
100
|
130
|
500
|
500
|
90
|
|
150
|
180
|
500
|
800
|
140
|
|
200
|
230
|
600
|
700
|
170
|
|
250
|
280
|
700
|
900
|
340
|
|
300
|
330
|
1000
|
1000
|
500
|
|
350
|
380
|
1100
|
1100
|
550
|
|
400
|
430
|
1200
|
1200
|
1100
|
|
450
|
480
|
1300
|
1300
|
1150
|
|
500
|
530
|
1300
|
1400
|
1300
|
|
550
|
580
|
1400
|
1500
|
1600
|
|
600
|
630
|
1450
|
1650
|
1900
|
|
650
|
680
|
1500
|
1800
|
2100
|
|
700
|
730
|
1600
|
1900
|
2200
|
|
750
|
780
|
1700
|
1900
|
2700
|
|
800
|
830
|
1800
|
2000
|
3100
|
|
850
|
880
|
2000
|
2500
|
4600
|
|
900
|
930
|
2200
|
2600
|
5000
|
HDPE PIPE
AVAILABLE IN:
• Qualities PE80 and PE100
• Pressure levels PN4 up to PN25
• Various diameters
• All lengths, up to 20 meters
HDPE WELDING COLLARS
AVAILABLE IN:
• Qualities PE80 and PE100
• Pressure levels PN4 up to PN25
• Various diameters
• Qualities PE80 and PE100
• Pressure levels PN4 up to PN25
• Various diameters
• All lengths, up to 20 meters
HDPE WELDING COLLARS
AVAILABLE IN:
• Qualities PE80 and PE100
• Pressure levels PN4 up to PN25
• Various diameters
FLANGES
Steel flanges in various patterns and according to international standards (ISO, JIS, DIN, ASTM etc. ) adjusted to the outside
diameter of the HDPE pipe.
HDPE BENDS
HDPE bends for shore lines, available in various wall thicknesses, diameters and angles.
Y-PIECES
HDPE Y-pieces for shore lines, available in various wall thicknesses and diameters.
Steel flanges in various patterns and according to international standards (ISO, JIS, DIN, ASTM etc. ) adjusted to the outside
diameter of the HDPE pipe.
HDPE BENDS
HDPE bends for shore lines, available in various wall thicknesses, diameters and angles.
Y-PIECES
HDPE Y-pieces for shore lines, available in various wall thicknesses and diameters.
Details Images
Packing & Delivery
HESU HDPE Pipe have for several years been confidently supplying their range of HDPE pipes, fittings and saddles for successful use in a variety of applications in the Civil, Agricultural, Municipal, Mining and Industrial sectors. Because of the good chemical resistance and abrasion resistance properties they are also extensively used in chemical, waste and slurry applications.
