Quick Details
-
Instruction for use:
-
Cooling system
-
Model Number:
-
MP-range
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
MAXPOWER
-
Application:
-
Greenhouse, Livestock, Poultry house Ventilation System
-
Frame Material:
-
Hot Galvanized Steel, Stainless Steel
-
Blades Material:
-
Aluminum Alloy, Stainless Steel
-
Air Volume:
-
14800-55800m3/h
-
Working Power:
-
0.75-1.5KW
-
Working Voltage:
-
220V/380V, OEM
-
Diameter of Blades:
-
750-1400MM
-
Protect Class:
-
IP55
-
Insulation Class:
-
F Grade
-
Certificate:
-
CE, CCC
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Manufacturer:
-
MAXPOWER
-
Instruction for use:
-
Cooling system
-
Model Number:
-
MP-range
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
MAXPOWER
-
Application:
-
Greenhouse, Livestock, Poultry house Ventilation System
-
Frame Material:
-
Hot Galvanized Steel, Stainless Steel
-
Blades Material:
-
Aluminum Alloy, Stainless Steel
-
Air Volume:
-
14800-55800m3/h
-
Working Power:
-
0.75-1.5KW
-
Working Voltage:
-
220V/380V, OEM
-
Diameter of Blades:
-
750-1400MM
-
Protect Class:
-
IP55
-
Insulation Class:
-
F Grade
-
Certificate:
-
CE, CCC
Maxpower Exhaust Fan And
Circulation
Fan
Product Description
MP Push Pull Type Exhaust Fan
MP series high class fan is mainly made up of blade, centrifugal opening device, motor, outer frame, protecting nets, supporting frame, shutters. It is made based on aerodynamic, effectively reduce the wind resistance. The major parts are made of galvanized steel sheets and stainless steel sheets. All the products are windly used in various typs of buildings as farms, greenhouse, factory building.

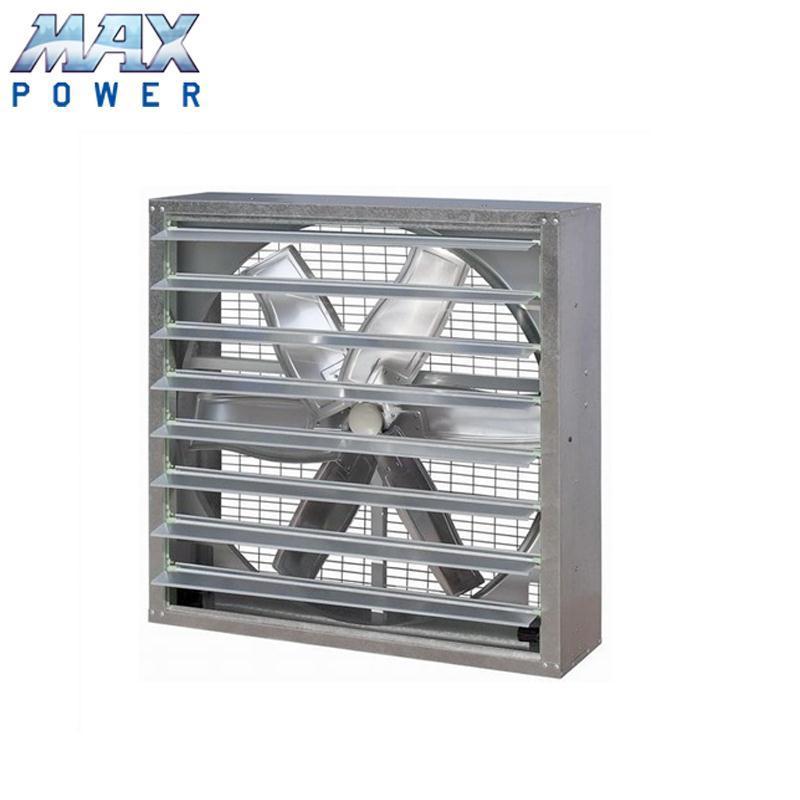

MP Heavy Type Exhaust Fan
Fans mainly consists of blade, motor, frame, protect net, bracing cage, shutters. The motor drives blade to cause air flow and louver window can open and close automatically to keep the dust from entering.
MP Circulation Fan
1. The electric machine use excellent brand
2. International advansed energy conservation technology testing
3. Light alumimum board punch fan blade, wide angle, heavy wind and low noise
4. Outer covering is stainless or steel spraying available
5. Equipped with beautiful and convenient button type hanging articles
6. Long service life over 10 years
|
MP Push Pull Type Exhaust Fan
|
|
|
|
|
|
|||||
|
Model specification
|
Diameter blade
(mm)
|
Frequencey
(Hz)
|
Motor rotational speed rpm
|
Air flow
(m
3
/H)
|
Import power
(W)
|
|||||
|
MP-PP-800
|
710（29in）
|
50/60
|
≥1400
|
26000
|
370
|
|||||
|
MP-PP-1000
|
900
（36in）
|
50/60
|
≥1400
|
32000
|
750
|
|||||
|
MP-PP-1100
|
1000
（44in）
|
50/60
|
≥1400
|
40000
|
750
|
|||||
|
MP-PP-1380
|
1270
（50in）
|
50/60
|
≥1400
|
44800
|
1100
|
|||||
|
MP-PP-1530
|
1400
（56in）
|
50/60
|
≥1400
|
58000
|
1500
|
|||||
|
MP Push Pull Type Exhaust Fan
|
|
|
|
|
|
|
||||||
|
Model specification
|
Noise decibels
(db)
|
Total pressure
(pa)
|
Rated voltage
(v)
|
Height
(mm)
|
Width
(mm)
|
Thickness
(mm)
|
||||||
|
MP-PP-800
|
≤64
|
60
|
380
|
800
|
800
|
450
|
||||||
|
MP-PP-1000
|
≤64
|
70
|
380
|
1000
|
1000
|
450
|
||||||
|
MP-PP-1100
|
≤64
|
70
|
380
|
1100
|
1100
|
450
|
||||||
|
MP-PP-1380
|
≤64
|
56
|
380
|
1380
|
1380
|
450
|
||||||
|
MP-PP-1530
|
≤64
|
60
|
380
|
1530
|
1530
|
450
|
||||||
|
MP Heavy Type Exhaust Fan
|
|
|
|
|
|
|||||
|
Model specification
|
Diameter blade
(mm)
|
Blades rpm
|
Motor rotational speed rpm
|
Air flow
(m
3
/H)
|
Import power
(W)
|
|||||
|
MP-HH-620(24in)
|
500
|
680
|
1400
|
6500
|
370
|
|||||
|
MP-HH-800(29in)
|
710
|
660
|
1400
|
22000
|
370
|
|||||
|
MP-HH-900(30in)
|
750
|
630
|
1400
|
28000
|
550
|
|||||
|
MP-HH-1000(36in)
|
900
|
610
|
1400
|
30000
|
550
|
|||||
|
MP-HH-1100(40in)
|
1000
|
600
|
1400
|
32500
|
750
|
|||||
|
MP-HH-1220(44in)
|
1100
|
460
|
1400
|
38000
|
1100
|
|||||
|
MP-HH-1380(50in)
|
1250
|
439
|
1400
|
44000
|
1100
|
|||||
|
MP-HH-1530(56in)
|
1400
|
325
|
1400
|
55800
|
1500
|
|||||
|
MP Heavy Type Exhaust Fan
|
|
|
|
|
|
|
||||||
|
Model specification
|
Total pressures
(Pa)
|
Noise decibels
|
Rated voltage
(V)
|
Height
(mm)
|
Width
(mm)
|
Thickness
(mm)
|
||||||
|
MP-HH-620(24in)
|
60
|
≤60
|
380
|
620
|
620
|
400
|
||||||
|
MP-HH-800(29in)
|
60
|
≤60
|
380
|
800
|
800
|
400
|
||||||
|
MP-HH-900(30in)
|
65
|
≤65
|
380
|
900
|
900
|
400
|
||||||
|
MP-HH-1000(36in)
|
70
|
≤70
|
380
|
1000
|
1000
|
400
|
||||||
|
MP-HH-1100(40in)
|
70
|
≤70
|
380
|
1100
|
1100
|
400
|
||||||
|
MP-HH-1220(44in)
|
73
|
≤70
|
380
|
1220
|
1220
|
400
|
||||||
|
MP-HH-1380(50in)
|
56
|
≤70
|
380
|
1380
|
1380
|
400
|
||||||
|
MP-HH-1530(56in)
|
60
|
≤70
|
380
|
1530
|
1530
|
400
|
||||||
|
MP Circulation Fan
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Air volume
(m
3
/h)
|
Power
(w)
|
Voltage
(v)
|
Pa
|
Hz
|
Effective distance
(m)
|
Size(mm)
|
|||||||
|
MP-AC-400
|
3200
|
120
|
220/380
|
60
|
50
|
12-16
|
460x460x310
|
|||||||
|
MP-AC-500
|
5400
|
180
|
220/380
|
60
|
50
|
18-22
|
560x560x310
|
|||||||
|
Accept customization
|
|
|
|
|
|
|
|
|||||||
