Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
900 mm
-
Travel (Y Axis)(mm):
-
8000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TECHPRO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
900*8000*300mm
-
Power (kW):
-
20
-
Weight (KG):
-
2500
-
Product name:
-
CNC Router
-
Tools Changer:
-
ATC tools changer
-
Vertical Spindle:
-
ATC 9.0kw Air Cooling Spindle
-
Spindle 2:
-
6.0kw saw blade head
-
Control system:
-
Taiwan LNC / Syntec
-
Motor and driver:
-
1.5KW Leadshine / Yaskawa
-
Table Surface:
-
Original German Schmalz PTP Table Bar
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Conveyor belt:
-
Automatic Conveyor belt structure
-
Protactive cover:
-
Large protective cover design
Quick Details
-
Working Table Size(mm):
-
900*8000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
900 mm
-
Travel (Y Axis)(mm):
-
8000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TECHPRO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
900*8000*300mm
-
Power (kW):
-
20
-
Weight (KG):
-
2500
-
Product name:
-
CNC Router
-
Tools Changer:
-
ATC tools changer
-
Vertical Spindle:
-
ATC 9.0kw Air Cooling Spindle
-
Spindle 2:
-
6.0kw saw blade head
-
Control system:
-
Taiwan LNC / Syntec
-
Motor and driver:
-
1.5KW Leadshine / Yaskawa
-
Table Surface:
-
Original German Schmalz PTP Table Bar
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Conveyor belt:
-
Automatic Conveyor belt structure
-
Protactive cover:
-
Large protective cover design
Products Description
TechPro PTP Table CNC Router Featrue:
1. Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger and stability.
2.
Equipped with a large protective cover and safety grating equipment to protect the safety of operators.
3. Taiwan LNC / Syntec control system with break point memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
4. Chinese HQD air cooling spindle, ensure the cutting effect, long using life with less maintain.
5. Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc.
6. Independent control cabinet, Stronger power and weak power separate, maintenance easily.
7.
Saw blade head can rotate 0 to 180 degrees, and can
improve cutting efficiency.
8.
Original Germany Schmalz vacuum system device,
High adsorption capacity, suitable for small plate processing.
Application of TechPro Saw Blade CNC Router :
1. Furniture wooden craft decoration:
Solid wood furniture, MDF paint-free doors, composite doors, cabinet windows, bedside tables, screen carvings, 2D/3D large-area flat plate carving.
2. Advertising industry:
Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic cutting
3. Metal Industry: Aluminum, copper soft metal material cutting and drilling.
4. Artwork and Decoration: wood crafts; gift box; jewelry box.etc
5.
Construction industry: multi-layer boards, insulation boards, PU sandwich panels, etc.
Machine Configuration
|

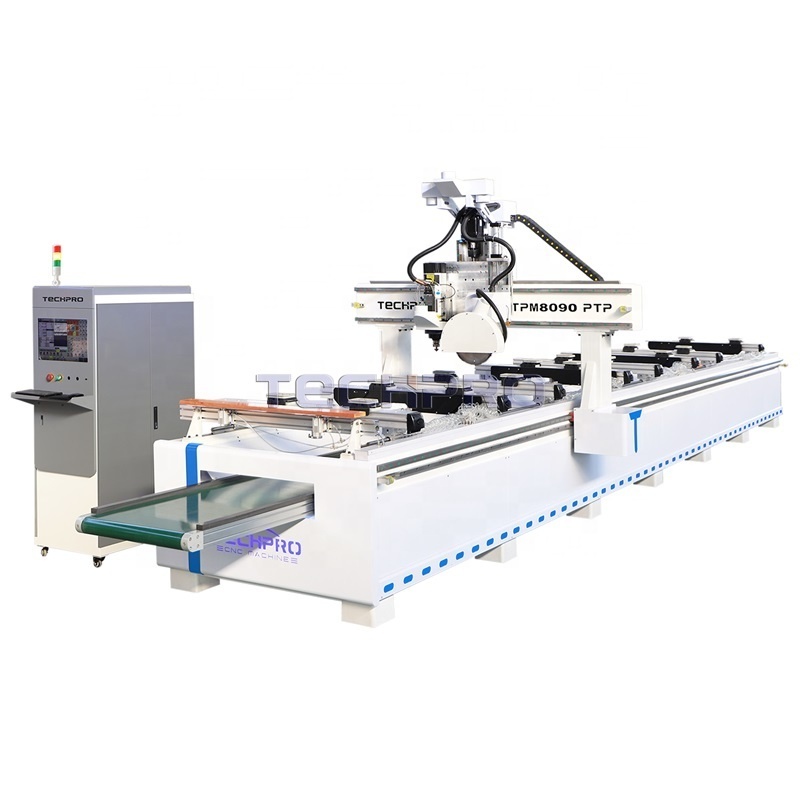

Model
|
TPM8090-PTP
|
|
Working area
|
800*9000*300mm (Optional Custom size )
|
|
Control system
|
Taiwan LNC / Syntec control system
|
|
ATC Spindle
|
China HQD 9.0kw air cooling spindle
|
|
Spindle
|
HQD 6.0kw saw blade head (can rotate -90 to 0 degrees + 0 to 90 degrees)
|
|
Motor and Driver
|
Leadshine / Delta / Yaskawa AC servo motor and driver
|
|
Inverter
|
Fuling / Delta inverter
|
|
PTP Table
|
Original Germany Schmalz PTP vacuum adsorption table
|
|
Structure
|
Heavy Duty 8-10mm Steel machine bed; 12-14mm Moving Steel Gantry
|
|
Lubrication system
|
Manual lubrication system
|
|
Transmission
|
X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw
X,Y axis: Taiwan Hiwin square guide rails with 30mm |
|
Electric Parts
|
Schneider brand
|
|
Tool Sensor
|
Automatic probe
|
|
Vacuum Pump
|
5.5kw vacuum pump
|
|
Software
|
Artcam / Ucancam / Aspire / Fushion360 etc
|
|
Working Voltage
|
380V or 220V /3phase/1 Phase
|
|
Optional
|
Vertical Cutting Spindle
|
|
|
Loading and Unloading Table
|
|
|
C Axis + Aggregates
|
|
|
Side Rotary Device
|
