Quick Details
-
Dimension(L*W*H):
-
6058*2438*2591mm
-
Weight:
-
7780
-
Product name::
-

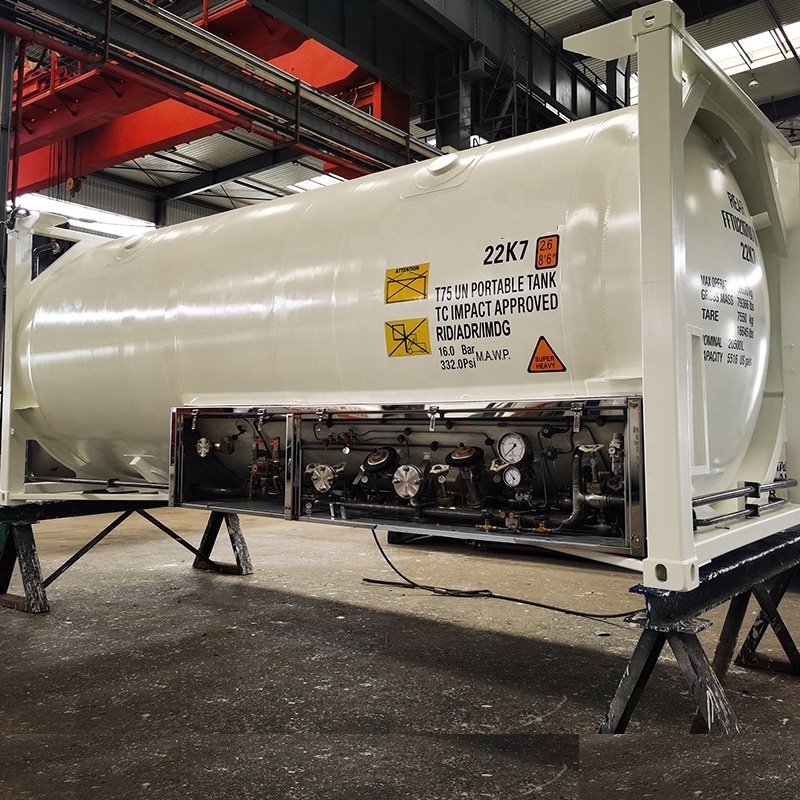

Cryogenic liquid storage tank
-
Filling medium::
-
LAr LOX LN2 LNG LCO2
-
Volume available:
-
20 m3
-
Working pressure::
-
16 bar /22 bar
-
Material::
-
S30408 & Q345R
-
Insulation Mode::
-
Multilayer vacuum
-
Type::
-
Vertical / Horizontal
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Capacity:
-
20m3
-
Max Working Pressure(MPa):
-
2.2 MPa
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
6058*2438*2591mm
-
Weight:
-
7780
-
Product name::
-
Cryogenic liquid storage tank
-
Filling medium::
-
LAr LOX LN2 LNG LCO2
-
Volume available:
-
20 m3
-
Working pressure::
-
16 bar /22 bar
-
Material::
-
S30408 & Q345R
-
Insulation Mode::
-
Multilayer vacuum
-
Type::
-
Vertical / Horizontal
-
After-sales Service Provided:
-
Free spare parts
Product Description
Vacuum cryogenic liquid storage tank is a common and advanced equipment for cryogenic liquid long-term storage. It has the advantages of compact structure, small area, large storage capacity, adjustable pressure, low evaporation rate, high safety and reliability. It is widely used in the storage of liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, ethylene and liquefied natural gas (LNG). Storage tank adopts double-layer shell structure, with interlayer insulation material and vacuum, mainly composed of inner and outer shell, insulation structure, pipeline system and safety accessories.
Process System:
1. Fluid inlet system; 2. Level & pressure measurement system; 3. Full indication system; 4. Safety system;
5. Drainage system; 6. Vent system; 7. Vacuum system; 8. Pressurizing system.
Specification
Production Process
Steel plate Rolling
Stainless steel polishing
Polishing and derusting of carbon steel
Cylinder welding
Bandaging
Component lap welding
Vacuum pumping
Pipeline test
Finished product
Our Projects
Packing & Delivery
PP file + Foam
