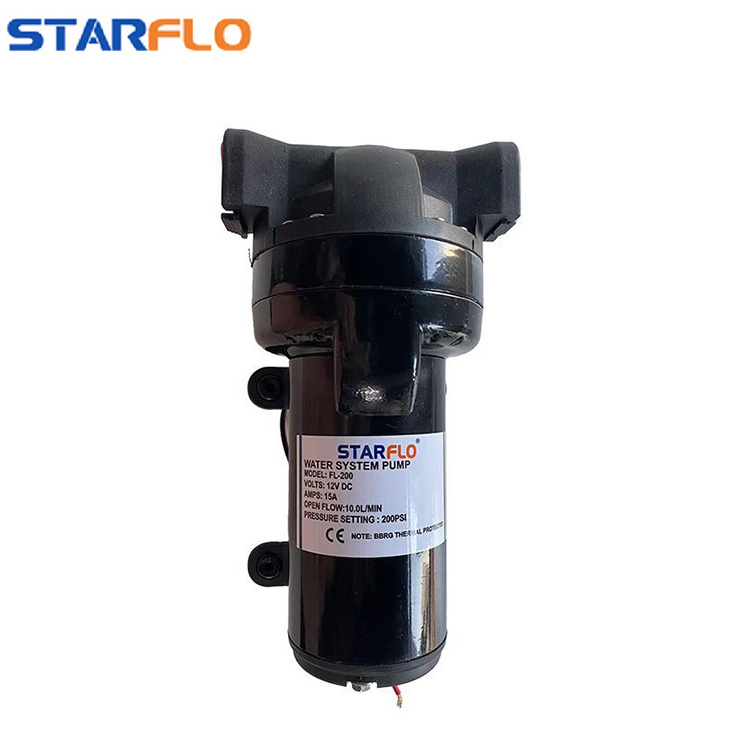

STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning
STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning
STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning
STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning
STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning
STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning
STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning
STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning

STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning

FOB Reference Price: Get Latest Price
≥1 Pieces
US $56
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 year
Brand Name:
STARFLO
Model Number:
FL-200
Place of Origin:
Fujian, China
Horsepower:
180w
Power Source:
12V DC
Outlet Size:
3/4" Female Thread, 1/2"barbed fitting Included
Power:
180W
Amp draw:
15A max
Max flow:
10LPM
Pump design:
5 chamber diahpragm
Liquid temperature:
60 ℃ max
Valve made:
EPDM
Diaphragm:
Santoprene
Duty cycle:
Working intermittent
Usage:
Marine,boat,garden,RV

Quick Details

Application:
Marine, Washing and Cleaning, wastewater treatment
Pressure:
high pressure, max 200psi
Voltage:
12V DC, 12V DC
Warranty:
1 year
Brand Name:
STARFLO
Model Number:
FL-200
Place of Origin:
Fujian, China
Horsepower:
180w
Power Source:
12V DC
Outlet Size:
3/4" Female Thread, 1/2"barbed fitting Included
Power:
180W
Amp draw:
15A max
Max flow:
10LPM
Pump design:
5 chamber diahpragm
Liquid temperature:
60 ℃ max
Valve made:
EPDM
Diaphragm:
Santoprene
Duty cycle:
Working intermittent
Usage:
Marine,boat,garden,RV

STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning

STARFLO 200psi 10L/min car washer electric portable 12 volt dc high pressure electric water pump for carpet cleaning

Perfect for caravans, boats, motorbikes, trucks and camping. Use it with fresh or salt water with your deck wash or to run your toilet or shower.

T hese pumps automatically turn themselves on and off when you turn the tap on and off. Comes with filter and fittings. hese pump are for intermittent use only.

A great pump for those country folk, with a small family, on tank water who only need to boost the pressure from a tank next to the house.

We have tested these pumps and found they will operate to a 2 metre suction lift and 5 metre head with no problems.

Light weight and made from corrosion resistant materials which are suitable for fresh water, sea water, salt water, beverage and chemical transfer.

APPLICATION OF MARINE PUMP

  • Agriculture/Yacht / RV/Caravan pressurized water system
  • Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
  • Cleaning machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling & liquid transfer
  • Any other pressurization system

TROUBLESHOOTING

WARNING:BEFORE SERVICING PUMP,CLOSE SEA COCK,TURN OFF POWER AND DRalN WATER FROM HOSES!!

Failure to Prime-Motor operates, but no pump discharge

  • Restricted intake or discharge line
  • Air leak in intake line
  • Debris in pump
  • Punctured pump diaphragm(pump leaks)
  • Crack in pump housing

Motor fails to turn on

  • Blown fuse
  • Pum circuit has no power
  • Loose wiring connection
  • Defective motor

Low Flow and Pressure

  • Air leak at pump intake
  • Acuummulation of debris inside pump and plumbing
  • Wom pump bearing(excessive noise)
  • Punctured pump diaphragm(punop leaks)
  • Defective motor

Pulsating Flow

  • Restrocted pump delivery.Check discharge lines,fittings and valves for clogging or undersiszing.

Body of Diaphragm Water Pump Glass Filled Nylon
Check valve EPDM & VITION all are available, five chamber pump
Diaphragm TPV( Stantoprene)
Ports 3/4" Female Thread, 1/2"barbed fitting Included
Voltage 12/24V DC Voltage are all available
Amp draw Max.15.a(amp) for 12v, Max.8.a(amp) for 24v
Pump design 5 Chamber Diaphragm
Motor Type Permanent magnet type
Self priming 3m vertical lift
Max.Pressure 200psi (13.80Bar)
Liquids Clean water, sea water & light corrovisity chemical liquids



Q: Is your company a trading company or factory ?

A: STARFLO INTERNATIONAL TRADING OFFICE ESTABLISHED IN 2016,Xiamen. Our factory located in Ningde.

Q: What's your main products of your company?

A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive

Q:How can I choose the most suitable pump?

A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended.

Q:What's your product MOQ of it?

A:Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more  discount.

Q: What's your payment way?

A: Usually we accept T/T ,Western Union or PayPal.

Q: What's your delivery time?

A. 1.The stock samples can be sent to you within 2-3days by international express after received

2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)

Q : How long is your pump lifetime?

A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor for your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
