Quick Details
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-GYG-05
-
Place of Origin:
-
China
-
Transmission rate:
-
1.25G
-
Case material:
-
metal shell
-
Installation method:
-
DIN card rail type
-
Operating temperature:
-
-45℃ ~ + 85℃
-
Exchange mode:
-
storage-forward
-
Power supply protection:
-
positive and negative electrode misconnection protection
-
Power consumption:
-
<5W
-
MAC Table:
-
16K
-
Power supply light:
-
green (PW 1-PW 2)
-
Housing protection:
-
IP40
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
10G
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-GYG-05
-
Place of Origin:
-
China
-
Transmission rate:
-
1.25G
-
Case material:
-
metal shell
-
Installation method:
-
DIN card rail type
-
Operating temperature:
-
-45℃ ~ + 85℃
-
Exchange mode:
-
storage-forward
-
Power supply protection:
-
positive and negative electrode misconnection protection
-
Power consumption:
-
<5W
-
MAC Table:
-
16K
-
Power supply light:
-
green (PW 1-PW 2)
-
Housing protection:
-
IP40
Product Description

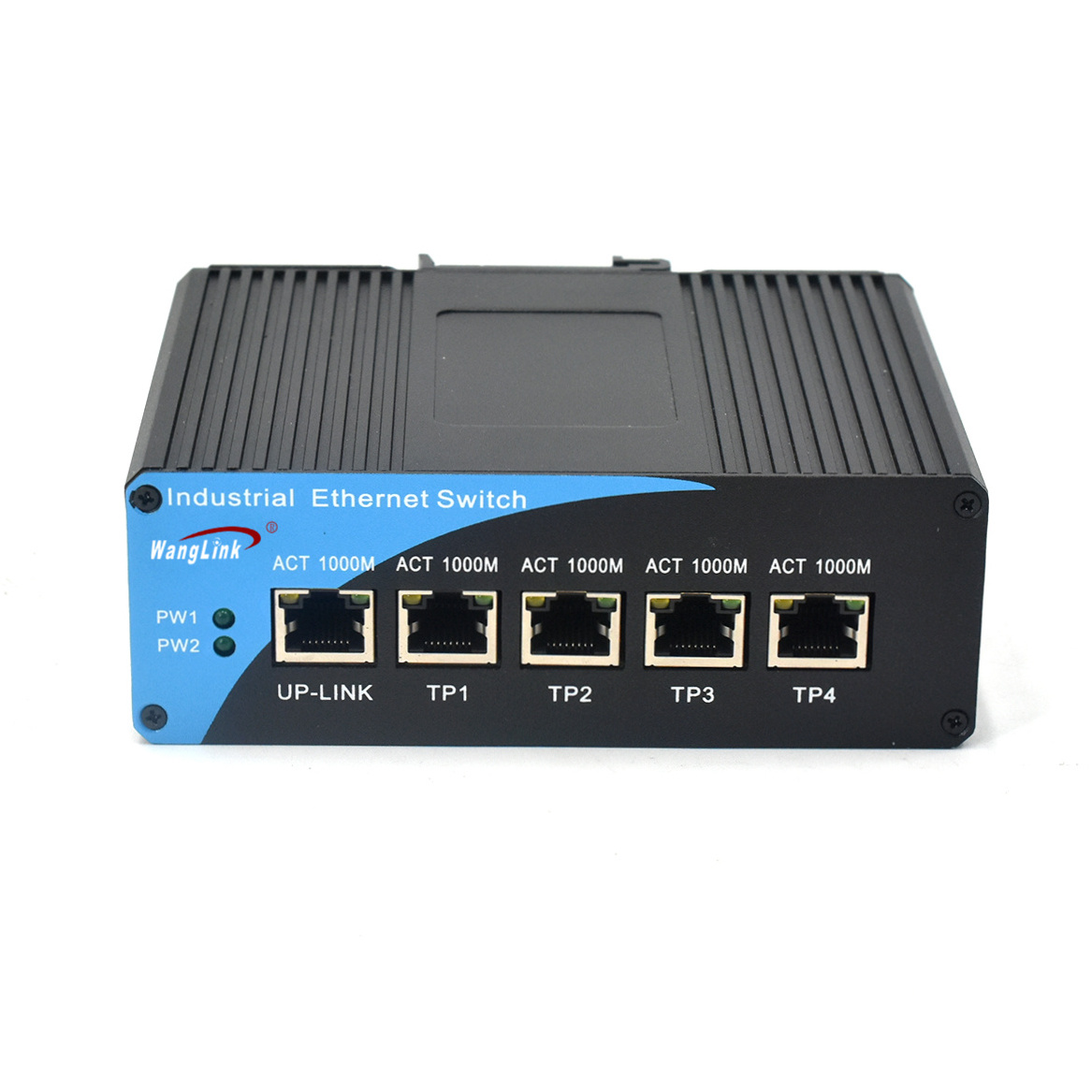

Wanglink 10/100/1000Mbps Industrial Switch 5 Port Industrial Grade Ethernet Switch
The switch is designed for harsh industrial environment, with five 10 / 100 / 1000Mbps network, using industrial standard design, support double redundant power supply, dustproof, lightning protection, high and low temperature resistance, the average failure time 300000 hours, can be widely used in industrial control automation, road traffic control automation, building automatic control system, room monitoring system and other industrial application scenarios, stable, reliable and efficient work, make a rock of industrial Internet of things, suitable for all kinds of harsh environment for a long time.
Product Features
1.5 10 / 100 / 1000Base-T network ports;
2. All network ports support 10 / 100 / 1000Mbps rate adaptation;
3. All network ports support half / full duplex adaptation, support automatic MDI / MDI-X function;
4. All network ports support line speed forwarding, smoother transmission;
5. Adopt imported lightning protection devices, lightning strike, can resist induction high pressure, surge prevention, etc
6.
-
45℃ ~ + 85℃ wide temperature design to ensure that the equipment can adapt to various harsh site environment;
7. Support double-redundant power supply, overload protection and backconnection protection;
8. Plug and play, simple operation, without any configuration;
9.IP40 grade protection, corrugated high strength metal shell, no fan, low power consumption design;
Product Specification
|
Standards and protocols
|
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
|
|
|
|||
|
interface message
|
Downlink network ports: 410 / 100 / 1000M Base-T network ports
|
|
|
|
|||
|
|
Uplink network port: 110 / 100 / 1000M Base-T network port
|
|
|
|
|||
|
|
Standard RJ45
|
|
|
|
|||
|
|
10 / 100 / 1000Mbps adaptive
|
|
|
|
|||
|
|
10Base-T: ≤100m (CAT3,4,5 UTP)
|
|
|
|
|||
|
|
100Base-TX: ≤100m（CAT3,4,5 UTP）
|
|
|
|
|||
|
|
1000Base-T: ≤100m（CAT3,4,5 UTP）
|
|
|
|
|||
|
Mechanical properties
|
Case material: metal shell
|
|
|
|
|||
|
|
Installation method: DIN card rail type
|
|
|
|
|||
|
|
Heat dissipation mode: natural cooling, no fan
|
|
|
|
|||
|
environment attribute
|
Operating temperature: -45℃ ~ + 85℃
|
|
|
|
|||
|
|
Storage temperature: -45℃ ~ + 85℃
|
|
|
|
|||
|
|
Relative humidity: 5%~95% (non-condensation dew)
|
|
|
|
|||
|
Exchange property
|
Exchange mode: storage-forward
|
|
|
|
|||
|
|
MAC Table: 16K
|
|
|
|
|||
|
power requirement
|
Power supply protection: positive and negative electrode misconnection protection
|
|
|
|
|||
|
|
Power consumption:<5W
|
|
|
|
|||
|
indicator light
|
Network port lamp (wave switch control): Indicator light: 1000M Link / ACT yellow; Indicator light: 100M Link / ACT green;
|
|
|
|
|||
|
|
Power supply light: green (PW 1-PW 2)
|
|
|
|
|||
