agri implements tractor garden tools mini rotary tiller for sale

agri implements tractor garden tools mini rotary tiller for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $720

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 370 KG

Dimension(L*W*H):: 2000*800*800mm

After-sales Service Provided:: Overseas third-party support available

After Warranty Service:: Online support

Quick Details

Use:: farm cultivator

Place of Origin:: Shandong, China

Brand Name:: YCHS

Weight:: 370 KG

Dimension(L*W*H):: 2000*800*800mm

After-sales Service Provided:: Overseas third-party support available

After Warranty Service:: Online support

Product Description

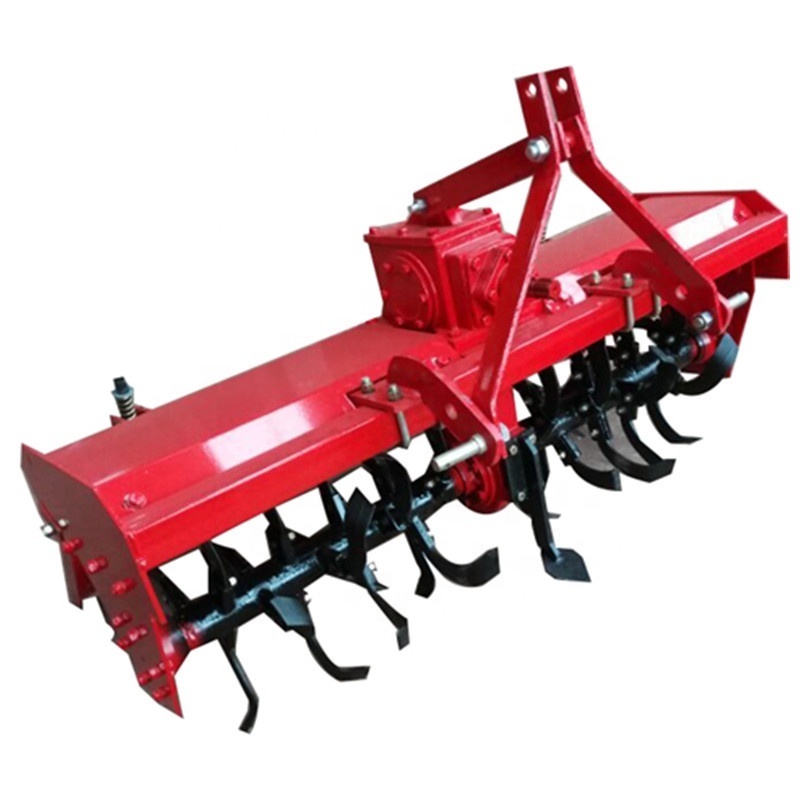

1GQN series rotary tiller is adopted middle gear transmission system, mounted with the tractor of 12-80HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc.

Technical Specification

1. This mounted rotary tiller covers the tractor wheel track perfectly.

2. The rotary cultivator saves labor and reduces the cost.

Model	Unit	1GQN-
Model	Unit	100	125	140	150	160	180	200	220	250	300
Working width	mm	1000	1250	1400	1500	1600	1800	2000	2200	2500	3000
Working depth	mm	120-180
PTO Rotation speed	r/min	540-720
PTO shaft spline		6 spline
No. of blades		18	26	30	34	38	42	46	50	58	70
Type of blade		IT225					IT245
Total weight	kg	190	200	210	220	240	370	400	420	470	500
Matched power	hp	12	20	25	30	40	50	60	70	80	90
Linkage		Three-point suspension I type					Three-point suspension II type
The items selectable		PTO transmission shaft in 8 spline

Products Show

Similar Products

Other Products Link

disc plough disc harrow share plow mower farm trailer rotary tiller cultivator disc ridger fertilizer spreader

corn planter whear drill corn thresher wheat thresher peanut thresher potato planter potato harvester boom sprayer hay rake hole digger disc blade agro parts new products

Certificate

FAQ

Q1: Are you a factory or trading company?
We are a factory with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer.
Q3: Where is your factory located? How can I visit there?
Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q5: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice. 30% as prepayment and the balance when the goods are ready for shipping. Irrevocable L/C at sight could be also accepted.
Q6: What's the Payment terms?
FOB, the price of the implement without sea shipment costs. CIF, including the unit cost + marine insurance + Shipment charges to your destination port. CFR, including the unit cost + Shipment charges to your destination port.
Q7: At which port do you usually ship the good?
We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.
Q8. How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.

Our Services

•Professional Sale Team to help you in whole purchase process, help you solve the language communication problems, help you finish the procedure of booking the ship, delivery, clean the customs.

•Perfect after-sale Constitution to solve each items after sale to meet the need from customers.

•Keep the Good quality and On-time Delivery.
