Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Contact supplier
-
Weight:
-
46700 kg
-
Dimension(L*W*H):
-
Contact supplier, 8,854*2,630*3,360mm
-
With Front & Rear Counterweight:
-
15,930kg
-
Blade Length (L*W*H):
-
4,279*25*610mm
-
Articulation Angle, Left /Right:
-
20°
-
Wheelbase:
-
6,140mm
-
Drawbar Pull:
-
90kN
-
Hydraulic Oil Tank:
-
55L
-
Tandem Case, Each Side:
-
62L*2
Quick Details
-
Engine Brand:
-
top brand
-
Working diameter:
-
Contact supplier
-
Marketing Type:
-
New Product
-
Place of Origin:
-
China
-
Brand Name:
-
Contact supplier
-
Weight:
-
46700 kg
-
Dimension(L*W*H):
-
Contact supplier, 8,854*2,630*3,360mm
-
With Front & Rear Counterweight:
-
15,930kg
-
Blade Length (L*W*H):
-
4,279*25*610mm
-
Articulation Angle, Left /Right:
-
20°
-
Wheelbase:
-
6,140mm
-
Drawbar Pull:
-
90kN
-
Hydraulic Oil Tank:
-
55L
-
Tandem Case, Each Side:
-
62L*2

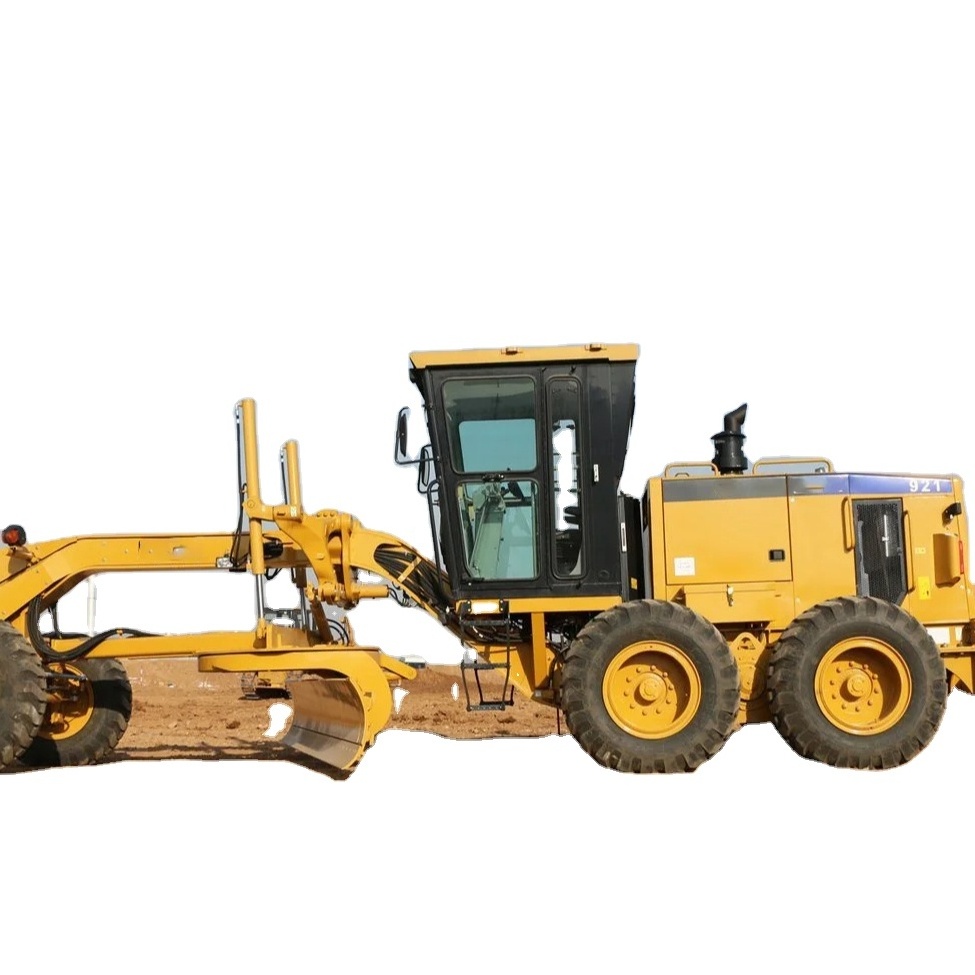

Motor Grader 210hp SEM921 Road Construction Equipment with Front Bulldozer & Rear Ripper for Sale
Product Description
Tandem Axle
* Leveraging C designing and experience on MG tandem axle
* Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
* Less down time and reduced labor and service cost for maintenance and repairing
* Longer service interval for lubrication oil change
* Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line
|
Item
|
SEM919
|
SEM921
|
|
Overall weight (kg)
|
15070
|
15930
|
|
weight - front axle(kg)
|
4236
|
4744
|
|
weight - back axle(kg)
|
10834
|
11186
|
|
Front / back axle load distribution
|
28% /72%
|
30% /70%
|
|
Overall dimension(mm)
|
8703*2630*3360
|
8854*2630*3360
|
|
Max. Tractive Force(KN)
|
≥78
|
≥85
|
|
Max. forward speed(km/h)
|
40
|
40
|
|
Max. backward speed(km/h)
|
25
|
25
|
|
Engine
|
Shangchai
|
Shangchai
|
|
Model
|
SC9DK190.1G3
|
SC9DK220G3
|
|
Rated power(kw)
|
140
|
162
|
|
Rated revolution(rpm)
|
2200
|
2200
|
|
Displacement(L)
|
8.8
|
8.8
|
|
Transmission
|
Hangzhou advance gearbox
|
Hangzhou advance gearbox
|
|
Gear
|
6 in the front 6 and 3 in the back
|
6 in the front 6 and 3 in the back
|
|
Hydraulic system
|
load sensing, proportional priority with pressure compensation
|
load sensing, proportional priority with pressure compensation
|
|
Working pump
|
Variable Piston Pump
|
Variable Piston Pump
|
|
Working valve
|
Proportional priority with pressure compensation
|
Proportional priority with pressure compensation
|
|
Tire
|
Diagonal tire with inner tube
|
Diagonal tire with inner tube
|
|
Layer/pattern
|
12pr, E2/L2
|
12pr, E2/L2
|
|
Model
|
17.5-25
|
12pr, E2/L2
|
|
Max. articulation angle(°)
|
±20
|
±20
|
|
Min. turning radius(m)
|
≤7.8
|
≤7.8
|
|
Shovel floating
|
Standard
|
Standard
|
|
Shovel length(m)
|
4
|
4.3
|
